IPEsim

Coolant circuit simulation module

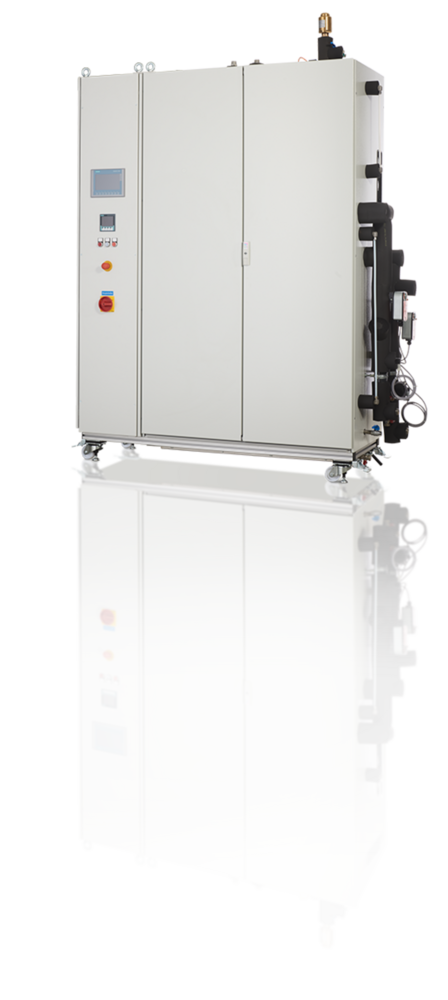

IPEsim

For technical, regulatory, or logistical reasons, it is not always possible to integrate the actual vehicle components in the coolant circuit on the test bench for validation. This often concerns electrical components such as batteries or power electronics. The IPEsim coolant circuit simulation module has been developed for cases like these to simulate individual components in the coolant circuit of a modern hybrid or electric vehicle and thus replace them in the test bench application. After the connection to a recooling circuit, the IPEsim can simulate both heat sinks and heat sources. It automatically controls the process variables such as cooling and heating capacity, flow temperature, volume flow, system pressure, and pressure drop flow. The system is conveniently operated via a master computer, e.g. with our IPEmotion software, or via the integrated PLC touch panel. Depending on the application, different test circuit volumes are possible and recooling can be active (with integrated refrigeration system) or passive. For passive recooling, the minimum test item temperature depends on the flow temperature of the recooling medium.

  • Simulating of heat sink and heat source, e.g. battery heat loss
  • Automatic control of process variables: cooling and heating capacity, flow temperature, volume flow, system pressure, pressure drob flow
  • Operating via master computer and possible integration of IPEmotion
  • Integrated PLC system with touch panel
  • Available different test circuit volumes

Enquire now Datasheet Add to notelist

Features at a Glance

Supported Coolants Secondary Brine Depending on customers requirements
Connections Main Brine Inlet (1") / outlet (1") - outside thread
Dimensions W2000 mm x H2000 mm x D750 mm (78.75 in x 78.75 in x 29.53 in)
Power Supply 1 x 32 A, 400 V AC, 50 Hz

IPEsim – Technical data

Download as PDF

Device
Supported Coolants Secondary Brine Depending on customers requirements
Connections Main Brine Inlet (1") / outlet (1") - outside thread
Connections secondary brine Inlet (1") / outlet (1") - outside thread
Service connections 3/4" (3 x for flushing, filling and draining)
Dimensions W2000 mm x H2000 mm x D750 mm (78.75 in x 78.75 in x 29.53 in)
Weight 500 kg (1102 lb)
Type of control PLC-controlled / touch panel or master computer
Power consumption, typical Max. 30 kW
Working temperature range Max. 40 °C (104 °F)
Electrical connections
Power Supply 1 x 32 A, 400 V AC, 50 Hz
Supply
Supported coolants Brine (40 % water/ 60 % glycol)
Flow temperature recooling fluid -35 … 6 °C (-31 … 43 F)
Volume flow recooling fluid 1700 l/h
Compressed air 5 bar < p < 16 bar
Control ranges
Cooling capacity 0 … 7.5 kW
Heating capacity 0 … 18 kW
Temperature range -27* … 120 °C (-17* … 248 F)
Volume flow 300 … 3000 l/h
Pressure drop flow 0 … 4.5 bar
System pressure 0 … 2.5 bar
Note * depending on flow temperature recooling fluid
