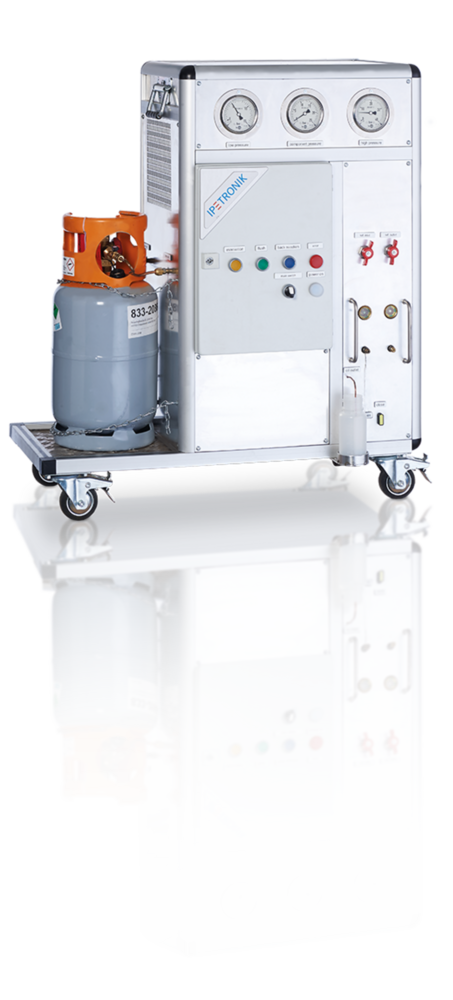

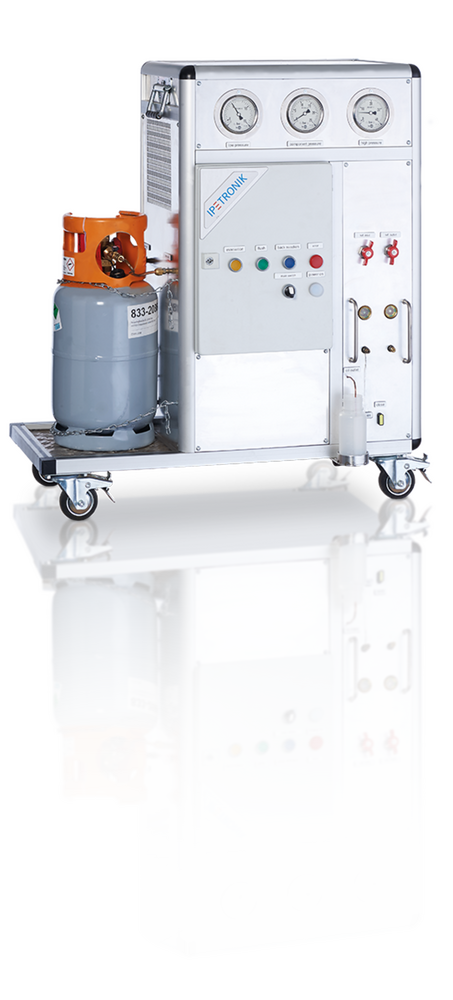

IPEflush

High-performance flushing device for refrigerant circuits

IPEflush

The IPEflush high-performance flushing device has been developed to ensure the reliable measurement of the oil circulation ratio. IPEflush cleans the test circuits or individual components from any residual oil. The device uses a multi-stage flushing process to separate out – virtually residue-free – all the oil, dirt particles, and other contaminants retained throughout the various refrigeration circuits. A liquid refrigerant - R134a - is used as flushing medium since it binds most of the oils used in the automotive sector.

  • High cleaning performance even with heavy oil contamination
  • Self-sufficient flushing operation with pre-programmed processes
  • Cleaning procedure supporting a jetting pressure up to 12 bar
  • Flushing procedure using repetitive pulsations
  • Vacuum build-up with a pressure of up to 0.05 mbar
  • Automatic refrigerant recovery
  • Visual monitoring of operating pressures possible

Enquire now Datasheet Add to notelist

Features at a Glance

Supported Refrigerants R134a
Dimensions W850 mm x H950 mm x D450 mm (33.46 in x 37.40 in x 17.71 in)
Power Supply 1 x 16 A, 230 VAC, 50 Hz Schuko

IPEflush – Technical data

Download as PDF

Device
Supported Refrigerants R134a
Jetting pressure 12 bar
Volume flow rate 42 l/h
Flushing cycles 18 / h
Operating modes evacuation, flushing, Recovery
Dimensions W850 mm x H950 mm x D450 mm (33.46 in x 37.40 in x 17.71 in)
Weight 95 kg (209 lb)
Type of control PLC system
Power consumption, typical 600 W
Number of sight glasses 2 - inlet & outlet refrigerant level
Number of pressure gauges 3
HP gauge - high pressure -1 ... 40 bar
MP gauge - medium pressure -1 … 25 bar
LP gauge - low pressure -1 ... 15 bar
Working temperature range Max. 40 °C (104 °F)
Oil collector 700 ml
Electrical connections
Power Supply 1 x 16 A, 230 VAC, 50 Hz Schuko
Vacuum pump
Minimum pressure 0.05 mbar
