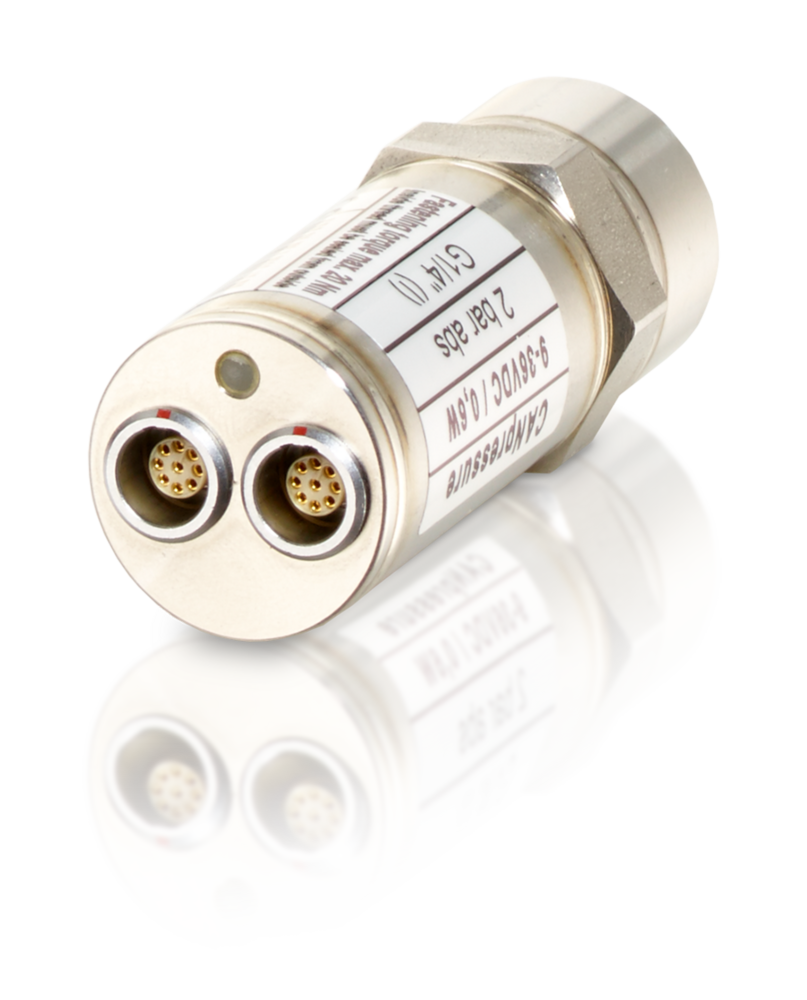

CANpressure

Pressure transducer with CAN output for automotive applications

CANpressure

Pressure transducer with CAN output for automotive applications
  • Absolute and relative pressure gauge in the range of 1 … 250 bar
  • Internal temperature sensor at gauge point
  • Measurement data output to CAN
  • Galvanic isolation (inputs, CAN, supply, enclosure)
  • Designed for engine compartment applications
  • Ruggedized and compact modules for harsh environments

Enquire now Datasheet Add to notelist

Technical Data

Accuracy at ambient temperature -40 … 125 °C 0.5 % FS (Full Scale / TEB Total Error Band)
Channel sampling rates 1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 / 2000 Hz
Inputs 1
Working temperature range -40 … 125 °C (-40 … 257 °F)
IP-Code Relative IP 52 / absolut IP 65 (ISO 20653 - 2013)

CANpressure – Technical data

Download as PDF

Input HV
* Safety instructions
Channel pressure
Pressure range 0 … 1 / 2 / 5 / 10 / 20 / 25 / 50 / 100 / 150 / 250 / bar (relative / absolute)
Accuracy at ambient temperature -40 … 125 °C 0.5 % FS (Full Scale / TEB Total Error Band)
Media temperture range (gas or liquids) -50 … 150 °C (-40 … 302 °F)
Accuracy of temperature measurement -40 … 150 °C ±3 K
Threads for absolute pressure M8 female: 1 / 2 / 5 / 10 / 25 / 50 / 100 / 150 / 250 bar, M10 male: 2 / 5 / 10 / 25 / 50 / 100 / 250 bar, M10 female: 5/ 100/ 250 bar, G1/4 male: 2 / 5 / 10 bar, G1/4 female: 2/ 5/ 10/ 25 bar, 1/8"NPT female: 10/ 50 bar, 7/16UNF male: 10 / 25 / 50 bar
Threads for relative pressure M8 male: 2/ 5 bar, M8 female: 1 / 5 / 10 / 25 bar, M10 male: 1 / 2 / 5 / 10 / 25 / 50 / 100 / 250 bar, M10 female: 1 / 2 / 10 / 100 bar, M14 male: 2 / 5 / 10 / 25 / 50 bar, G1/4 male: 1 / 2 / 5 / 10 bar, G1/4 female: 1 / 2 / 5 / 10 / 50 bar, 1/8"NPT female: 1 / 2 / 10 / 50 bar
General channel properties
Special functions Offset adjust, during measurement, multiple groups
AD converter 16 bit / SAR (successive approximation register)
Oversampling 10 kHz
Channel sampling rates 1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 / 2000 Hz
Aggregate sample rate 2 kHz
Hardware filter (switchable) Accuracy 10 %, 1.2 kHz, Butterworth (8-pole)
Software filter types Butterworth, Elliptic (8-pole), Bessel
Software filter (DSP selectable) 6 / 7.5 / 9.96 / 15 / 30 / 39.96 min, Accuracy 0.05 %, 1 / 1.25 / 1.67 / 2.5 / 5.0 / 6.67 / 10 / 12.5 Hz, 16.67/ 25/ 50/ 66.7/ 100/ 125/ 166.67/ 250/ 500 Hz
Channel CNT
Number of inputs
Excitation
Sensorspeisung
Device
Inputs 1
Precisions
Voltage supply 6 … 36 VDC
Supply voltage thresholds Switch-on 6 ±0.3 VDC / Switch-off 6 ±0.3 VDC
Power consumption, typical 0.7 W
Working temperature range -40 … 125 °C (-40 … 257 °F)
Storage temperature range -55 … 150 °C (-67 … 302 °F)
IP-Code Relative IP 52 / absolut IP 65 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Dimensions L76 mm x Ø 24 mm (2.99 in x 0.94 in)
Weight 120 g (0.26 lb)
Configuration interface CAN high speed
Data transfer rate Software selectable up to 1 MBit/s (ISO11898-2)
Housing material Stainless steel 4435
Wrench size 24 mm (0.94 in)
Tightening torque 17 … 23 Nm
Status LED Yes
Schutz gegen aggressive Flüssigkeiten
Electrical data
Status LED
Interfaces
Overload Pressure 3 x full scale / burst pressure > 200 bar
Accessories
System cable 620-561 M-PWR term cable, banana, 620-567 M-CAN/PWR term cable SubD/S, banana, 620-560 M-CAN cable, 620-502 M-CAN cable SUBD/S Term., M-CAN-ABS
