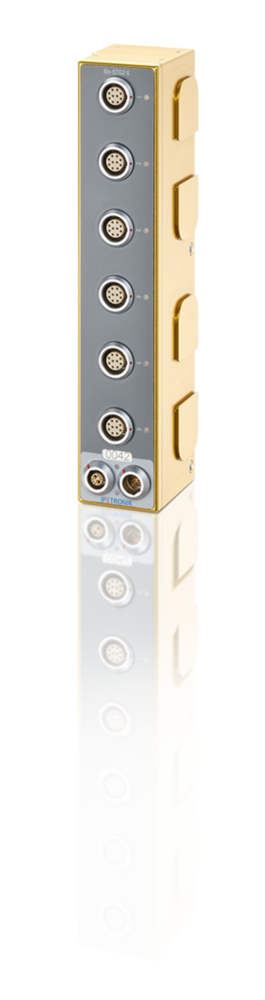

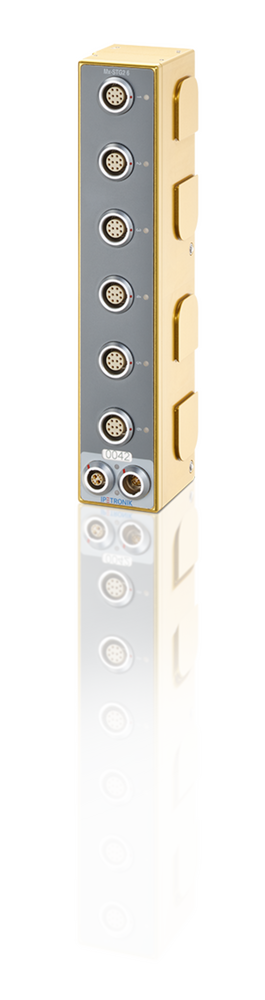

Mx-STG2 6

6 fast strain gauge measurement inputs up to 100 kHz

Mx-STG2 6

6 fast strain gauge measurement inputs up to 100 kHz
  • 6 dual sensor excitations (up to ±5 V)
  • Offset adjust functions, shunt check
  • Internal resistors for bridge completion selectable
  • TEDS Class-2 supported
  • Measurement data output via XCP on Ethernet or CAN
  • Designed for engine compartment applications
  • Toolless module to module connection
  • Ruggedized and compact modules for harsh environments

Enquire now Datasheet Add to notelist

Technical Data

Channel sampling rates 10/ 20/ 50/ 100/ 200/ 500 … 100 kHz, 10/ 20/ 50/ 100/ 200/ 500/ 1000/ 2000 Hz (CAN up to 2 kHz)
Sensor excitation ranges Bipolar ±0.5/ ±1.25/ ±2.5/ ±5 V
Inputs 6
Working temperature range -40 … 105 °C (-40 … 221 °F)
IP-Code IP 67 (ISO 20653 - 2013)

Mx-STG2 6 – Technical data

Download as PDF

Measurement input DMS
Accuracy at ambient temperature 25 °C ±0.075 % in measuring range ±0.005 / ±0.01 / ±0.02 V, ±0.01 % in measuring range ±1 V, ±0.02 % in measuring range ±0.05 / ±0.1 / ±0.2 / ±0.5 V
Special functions Shunt check, Sensor breakage detection (activation via software setting), Offset adjust, during measurement, multiple groups, Shuntcheck, also during measurement
Input HV
* Safety instructions
General channel properties
AD converter 24 bit / SAR (successive approximation register)
Oversampling 100 kHz
Channel sampling rates 10/ 20/ 50/ 100/ 200/ 500 … 100 kHz, 10/ 20/ 50/ 100/ 200/ 500/ 1000/ 2000 Hz (CAN up to 2 kHz)
Aggregate sample rate 600 kHz
Hardware filter (switchable) 12 kHz Cut-off frequency, Butterworth (8-pole), Accuracy 10 %
Hardware filter (fixed) 30 kHz Cut-off frequency for measuring ranges (±0.005 / 0.01 / 0.02 V), Typ RC 3-Pol, Typ RC 2-Pol, 46 kHz Cut-off frequency for measuring ranges (±0.05/ 0.1/ 0.2/ 0.5/ 1 V)
Software filter types Butterworth, Elliptic (8-pole), Bessel
Channel impedance 10 MΩ (differential), 5 MΩ (mass-related)
Software filter (DSP selectable) 10/ 12.5/ 16.67/ 25/ 50/ 66.67/ 100/ 125/ 166.67/ 250/ 500/ 667 Hz, Accuracy 0.00002 %, 1.0 / 1.25 / 1.67 / 2.5 / 5.0 / 6.67 / 10 / 12.5 / 16.67 / 25 / 33,34 kHz
Channel LED Yes, Yes, Sensor break detection, In case of overcurrent of sensor supply, Channel LED is flashing during configuration
TEDS Class 2
Channel CNT
Number of inputs
ENOB (Effective Number Of Bits)
ENOB 1.8Vpp sine, measuring range 2Vpp, at 125 Hz 17.5 bit, with hardware and software filter (250 Hz, Butterworth), 16.9 bit, without filter (full bandwidth)
ENOB 1.8Vpp sine, measuring range 2Vpp, at 1 kHz 16.5 bit, without filter (full bandwidth), 21.3 bit, with hardware and software filter (1250 Hz, Butterworth)
THD (Total Harmonic Distortion)
THD 1.8Vpp sine, measuring range 2Vpp, at 1 kHz 16.5 bit, without filter (full bandwidth), 21.3 bit, with hardware and software filter (1250 Hz, Butterworth)
Offset drift AAF (Anti Aliasing Filter) ON
Offset drift AAF ON - Umgebungstemperatur -40 … 85 °C Max. ±0.40 µV/°C (±0.05 V measuring range), Max. ±0.40 µV/°C (±0.005 V measuring range), Typ. ±1.67 µV/°C (±1 V measuring range), Typ. ±0.13 µV/°C (±0.05 V measuring range), Max. ±5 µV/°C (±1 V measuring range), Type. ±0.13 µV/°C (±0.005 V measuring range)
Offset drift AAF ON - Umgebungstemperatur 85 … 105 °C Typ. ±0.27 µV/°C (±0.05 V measuring range), Typ. ±2.33 µV/°C (±1 V measuring range), Max. ±0.80 µV/°C (±0.05 V measuring range), Typ. ±0.30 µV/°C (±0.005 V measuring range), Max. ±7 µV/°C (±1 V measuring range), Max. ±0.90 µV/°C (±0.005 V measuring range)
Gain drift AAF ON
Gain drift AAF ON - Umgebungstemperatur -40 … 105 °C Max. ±20 ppm/°C (±0.005 V measuring range), Typ. ±6.7 ppm/°C (±0.005 V measuring range), Max. ±15 ppm/°C (±1 V measuring range), Max. ±20 ppm/°C (±0.05 V measuring range), Typ. ±6.7 ppm/°C (±0.05 V measuring range), Typ. ±5 ppm/°C (±1 V measuring range)
Excitation
Sensor excitation ranges Bipolar ±0.5/ ±1.25/ ±2.5/ ±5 V
Sensorspeisung
Accuracy excitation at ambient temperature 25 °C 0.1 %
Sensor excitation current 45 mA, short-circuit proof (software monitored)
Sensor Anschluss 4-wire, 6-wire
Galvanic isolation
Input ↔ module power supply ±100 V (indefinitely), ±500 V (pulse voltage)
Input ↔ CAN ±100 V (indefinitely), ±500 V (pulse voltage)
Input ↔ enclosure ±100 V (indefinitely), ±500 V (pulse voltage)
Input ↔ input ±100 V (indefinitely), ±500 V (pulse voltage)
Device
Inputs 6
Precisions
Maximum input protection voltage (channel) ±100 V (continuous), ±200 V (short-time, t < 1 ms)
Voltage supply 9 … 36 VDC
Supply voltage thresholds On 9 ±0.3 VDC / Off 6 ±0.3 VDC
Power consumption, typical 5.0 W (all excitations off)
Working temperature range -40 … 105 °C (-40 … 221 °F)
Storage temperature range -55 … 105 °C (-67 … 221 °F)
IP-Code IP 67 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Operating altitude (above sea level) 55.000 Fuß / 16.764 m
Dimensions W212 mm x H60 mm x D35 mm (8.35 in x 2.36 in x 1.38 in)
Weight 700 g (1.54 lb)
Configuration interface Ethernet
Data transfer rate 100 Mbit Ethernet (IEEE 802.3)
Housing material Aluminum, gold anodized
Input sockets SUB D (9-Pin) Socket, Lemo EGG 1B 307 (7-Pin), Lemo EGG 2B 310 (10-pin) for TEDS
Status LED Yes
Schutz gegen aggressive Flüssigkeiten
Electrical data
Status LED
Accessories
System cable 630-500 X-Link system cable, X-Link-TERM, 630-528 X-Link cabe, ETH RJ45/PWR banana/ for M3 integration, 630-302 X-Link system cable ES ETH LEMO 1B8p, 630-502 X-Link cable RJ45 ETH, 630-504 X-Link cable M-CAN, USB2ETH-XLINK, X-Link-DEF, 630-522 X-Link system cable PC RJ45 (galv), 630-501 X-Link cable PWR banana, 630-505 X-Link PWR cable X-Link-CAN/M-CAN, 630-507 X-Link cable M-LOG PR08 ETH, 630-524 X-Link system cable LOG X-Link
Input cable 600-747 STG LEMO 2B10p. cable open, 620-700 STG SubD9/P cable open, 670-850, 600-760 STG 2B 10p. TEDS cable open
