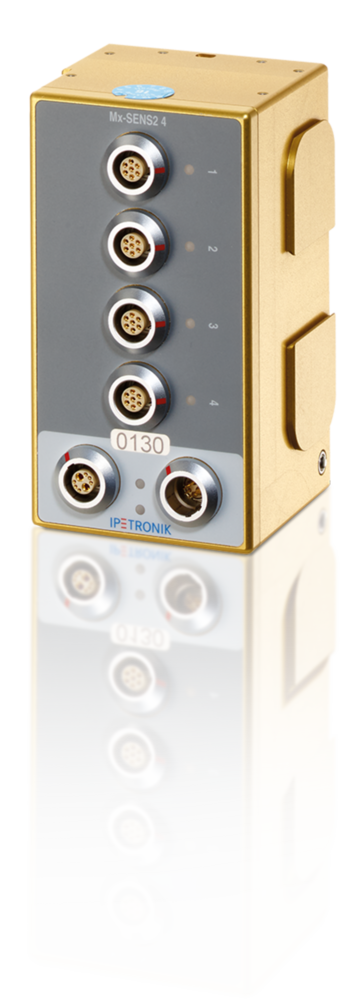

Mx-SENS2 4 FAST

4 fast analog measurement inputs each up to 400 kHz

Mx-SENS2 4 FAST

4 fast analog measurement inputs each up to 400 kHz
  • Measurement modes: SENS, mA, IEPE, individual for each input
  • 4 separate dual sensor excitations (up to ±15 V, up to ±60 mA)
  • Offset adjust functions
  • TEDS Class-2 supported
  • Measurement data output via XCP on Ethernet or CAN
  • Designed for engine compartment applications
  • Toolless module to module connection
  • Ruggedized and compact modules for harsh environments

Enquire now Datasheet Add to notelist

Technical Data

Accuracy at ambient temperature 25 °C 0.06 % from the selected measuring range
Channel sampling rates 10/ 20/ 50/ 100/ 200/ 500 Hz, 1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 400 kHz (CAN up to 2 kHz)
Sensor excitation ranges Bipolar ±2.5 / ±5 / ±7.5 / ±8 / ±10 / ±12.5 / ±15 V
Inputs 4
Working temperature range -40 … 85 °C (-40 … 185 °F)
IP-Code IP 67 (ISO 20653 - 2013)

Mx-SENS2 4 FAST – Technical data

Download as PDF

Channel volt
Measurement range SENS ±0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 20 / 50 / 100 V
Accuracy at ambient temperature 25 °C 0.06 % from the selected measuring range
Drift for ambient temperature -40 … 105 °C 20 ppm/K
Input HV
* Safety instructions
Measurement input IEPE
Filter limits (high pass) 1 Hz / 200 Hz adjustable (accuracy 20%)
Regulated nominal output current 4.5 mA ±10 %
IEPE measuring range ±0.1 / ±0.2 / ±0.5 / ±1.0 / ±2.0 / ±5.0 / ±10 V
Open circuit voltage 24 V
Channel current
Measurement range 0 … 20 mA, ±20 mA
Accuracy at ambient temperature 25 °C ±0.30 %
Internal shunt resistor 50 Ω
General channel properties
Special functions Sensor breakage detection (activation via software setting), Offset adjust, during measurement, multiple groups
AD converter 16 bit / SAR (successive approximation register)
Oversampling 400 kHz
Channel sampling rates 10/ 20/ 50/ 100/ 200/ 500 Hz, 1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 400 kHz (CAN up to 2 kHz)
Aggregate sample rate 1600 kHz
Hardware filter (switchable) Butterworth (8-pole), Accuracy 5 %, 48 kHz (optional 20 kHz) cut off frequency
Hardware filter (fixed) 190 kHz cut off frequency without HW/SW filter, Accuracy 25 %, Typ RC 4-Pol
Software filter types Butterworth, Elliptic (8-pole), Bessel
Channel impedance 2 MΩ
Software filter (DSP selectable) 50 / 66.67 / 100 / 125 / 166.67 / 250 / 500 / 666.67 Hz, Accuracy 0.05 %, 1.0 / 1.25 / 1.67 / 2.5 / 5 / 6.67 / 10 / 15 / 16.67 / 25 / 50 / 66.67 / 100 / 125 / 166.67 kHz
Channel LED Yes, Yes, Channel LED is flashing during configuration
TEDS Class 2
Channel CNT
Number of inputs
Excitation
Sensor excitation ranges Bipolar ±2.5 / ±5 / ±7.5 / ±8 / ±10 / ±12.5 / ±15 V
Sensorspeisung
Accuracy excitation at ambient temperature 25 °C ±0.50 %
Accuracy excitation at ambient temperature 85 °C ±0.70 %
Sensor excitation current 60 mA (for V output ±7.5 / ±15.0 V), 40 mA (for V output ±5.0 / ±12.5 V), 30 mA (for V output ±2.5 / ±10.0 V
Galvanic isolation
Input ↔ module power supply ±100 V (indefinitely), ±500 V (pulse voltage)
Input ↔ CAN ±100 V (indefinitely), ±500 V (pulse voltage)
Input ↔ enclosure ±100 V (indefinitely), ±500 V (pulse voltage)
Input ↔ input ±100 V (indefinitely), ±500 V (pulse voltage)
Input ↔ excitation ±100 V (indefinitely), ±500 V (pulse voltage)
Device
Inputs 4
Precisions
Maximum input protection voltage (channel) ±100 V (continuous), ±200 V (short-time, t < 1 ms)
Voltage supply 9 … 59 VDC
Supply voltage thresholds On 9 ±0.3 VDC / Off 6 ±0.3 VDC
Power consumption, typical 5.4 W (all excitations off)
Working temperature range -40 … 85 °C (-40 … 185 °F)
Storage temperature range -55 … 105 °C (-67 … 221 °F)
IP-Code IP 67 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Operating altitude (above sea level) 55.000 Fuß / 16.764 m
Dimensions W106 mm x H60 mm x D62 mm (4.17 in x 2.36 in x 2.44 in)
Weight 500 g (1.10 lb)
Configuration interface Ethernet
Data transfer rate 100 Mbit Ethernet (IEEE 802.3)
Input sockets Lemo EGG 1B 307 (7-Pin)
Status LED Yes
Schutz gegen aggressive Flüssigkeiten
Electrical data
Status LED
Accessories
System cable 630-500 X-Link system cable, X-Link-TERM, 630-528 X-Link cabe, ETH RJ45/PWR banana/ for M3 integration, 630-302 X-Link system cable ES ETH LEMO 1B8p, 630-502 X-Link cable RJ45 ETH, 630-504 X-Link cable M-CAN, USB2ETH-XLINK, X-Link-DEF, 630-522 X-Link system cable PC RJ45 (galv), 630-501 X-Link cable PWR banana, 630-505 X-Link PWR cable X-Link-CAN/M-CAN, 630-507 X-Link cable M-LOG PR08 ETH, 630-524 X-Link system cable LOG X-Link
Input cable 670-810 SENS LEMO 1B 7p cable open, 620-674 SENS LEMO 1B6p I-measure cable open, 670-811 SENS LEMO 1B 7p TEDS cable open, 670-807 SENS LEMO 1B 6p cable open, 600-866 SENS LEMO 1B7p cable BNC/P, 620-695 MxSENS 1B 7p adapter BNC/S-ICP TEDS, 600-731 SENS LEMO 1B 7p cable banana
