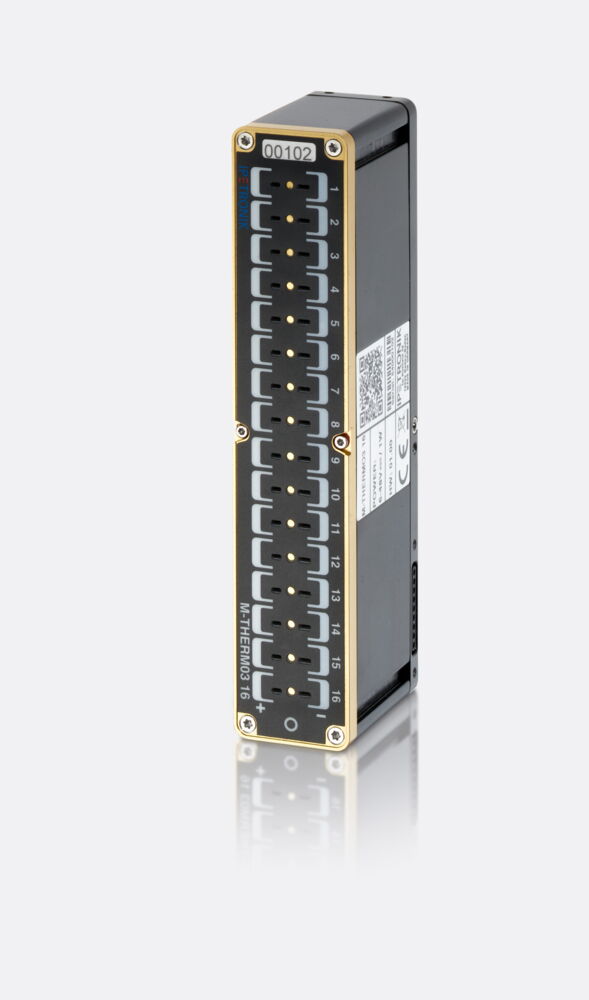

M-THERMO3 16

16 thermocouple measuring inputs

New

Temperature detection in perfection

With the new M-THERMO3 16 temperature measurement module, IPETRONIK is ushering in a new generation of devices. generation of devices. As the first module of the "M3 family", it sets standards in the field of modular measurement technology: the 16 channels, which can be freely selected by thermocouple type, offer with a high-resolution 24-bit analog-to-digital converter (ADC) offer the highest degree of accuracy and flexibility. The M-THERMO3 16 is ultra-compact, robust and features a new new wireless and magnetic connection concept - this saves time during installation and offers during assembly and offers the best possible security for the data connection.

Special Features

  • High-resolution 24-bit technology
  • Measurement data output on CAN-FD
  • Cable free system connection → connection cable not required
  • Tool-free, magnetic connection technology
  • Separate cold junction compensation for each channel
  • Ultra compact and robust design
  • IP 67 and extended temperature range
  • Galvanic isolation (channel, CAN, supply, housing)
  • Channel status LED at each measuring input with display of the selected thermocouple type according to IEC/ANSI
  • Display of channel and device status in software interface (e.g. sensor break / undervoltage detection)
  • System status information (system, devices, channel)

Datasheet

Technical data

AD converter 24 bit (Sigma-Delta)
Channel sampling rates 1 / 2 / 5 / 10 / min - 1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 Hz
Inputs 16
Power supply 6 ... 59 VDC
Operating temperature range -40 … 125 °C (-40 … 257 °F)
IP protection class IP 67 (ISO 20653 - 2013)

M-THERMO3 16 – Technical data

Download as PDF

General channel properties
AD converter 24 bit (Sigma-Delta)
Special functions Selectable number of averaging values (1-100)
Internal sampling rate 500 Hz
Channel sampling rates 1 / 2 / 5 / 10 / min - 1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 Hz
Total sampling rate 3200 Hz
Hardware filter (static) accuracy ±25 %, 22 Hz 2nd order
Input resistance 15 MΩ (No influence of sensor break detection)
Channel LED Channel LED is flashing yellow during configuration, Displays the color of the selected thermocouple type according to IEC/ANSI, Channel-LED is activated for 10s after initialization in color of selected thermocouple type, Sensor break detection, Yes
Channel temperature
Measurement range Type B (Pt30Rh/Pt6Rh) 0 ... 1820 °C (32 ... 3308 °F), Type N (NiCrSi/NiSi) -270 ... 1300 °C (-454 ... 2372 °F), Type R (Pt13Rh/Pt) -50 ... 1768 °C (-58 ... 3214 °F), Type S (Pt10Rh/Pt) -50 ... 1768 °C (-58 ... 3214 °F), Type E (NiCr/CuNi) -270 ... 950 °C (-454 ... 1742 °F), Type C (W5Re/W26Re) 0 ... 2320 °C (32 ... 4208 °F), Type J (Fe/CuNi) -210 ... 1200 °C (-346 ... 2192 °F), Type K (NiCr/NiAl) -270 ... 1372 °C (-454 ... 2502 °F), Type T (Cu/CuNi) -270 ... 400 °C (-454 ... 752 °F)
Measurement deviation (type K) Offset and scaling error: typ. ± 0.102 K: max. ± 0.304 K, Zero drift at 23 °C to 125 °C: max. ± 2.780 mK/K, Zero drift at -40 °C to 23 °C: max. ± 1.370 mK/K, Gain error at 23 °C: max. ± 0.0070 %., Gain drift at -40 °C to 23 °C : max. ± 7.927 ppm/K, Gain drift at 23 °C to 125 °C : max. ± 3.958 ppm/K
Measurement deviation (type B) Zero drift at 23 °C to 125 °C: max. ± 6.237 mK/K, Gain drift at 23 °C to 125 °C : max. ± 1.143 ppm/K, Gain drift at -40 °C to 23 °C : max. ± 3.848 ppm/K, Zero drift at -40 °C to 23 °C: max. ± 4.387 mK/K, Offset and scaling error: typ. ± 0.540 K: max. ± 1.621 K, Gain error at 23 °C: max. ± 0,0498 %
Measurement deviation (type C) Zero drift at 23 °C to 125 °C: max. ± 5.005 mK/K, Gain error at 23 °C: max. ± 0.0034 %, Zero drift at -40 °C to 23 °C: max. ± 3.469 mK/K, Gain drift at 23 °C to 125 °C : max. ± 3.669 ppm/K, Gain drift at -40 °C to 23 °C : max. ± 7.646 ppm/K, Offset and scaling error: typ. ± 0.367 K: max. ± 1.101 K
Measurement deviation (type E) Gain drift at -40 °C to 23 °C : max. ± 7.210 ppm/K, Offset and scaling error: typ. ± 0.080 K: max. ± 0.240 K, Zero drift at 23 °C to 125 °C: max. ± 2.579 mK/K, Gain drift at 23 °C to 125 °C : max. ± 3.543 ppm/K, Gain error at 23 °C: max. ± 0.0024 %, Zero drift at -40 °C to 23 °C: max. ± 1.156 mK/K
Measurement deviation (type J) Gain drift at 23 °C to 125 °C : max. ± 3.230 ppm/K, Zero drift at -40 °C to 23 °C: max. ± 1.188 mK/K, Offset and scaling error: typ. ± 0.086 K: max. ± 0.258 K, Gain error at 23 °C: max. ± 0.0019 %, Zero drift at 23 °C to 125 °C: max. ± 2.621 mK/K, Gain drift at -40 °C to 23 °C : max. ± 6.585 ppm/K
Measurement deviation (type N) Zero drift at 23 °C to 125 °C: max. ± 3.027 mK/K, Gain drift at 23 °C to 125 °C : max. ± 3.280 ppm/K, Zero drift at -40 °C to 23 °C: max. ± 1.602 mK/K, Offset and scaling error: typ. ± 0.131 K: max. ± 0.394 K, Gain drift at -40 °C to 23 °C : max. ± 6.831 ppm/K, Gain error at 23 °C: max. ± 0.0029 %.
Measurement deviation (type R) Gain drift at -40 °C to 23 °C : max. ± 5.032 ppm/K, Zero drift at 23 °C to 125 °C: max. ± 6.178 mK/K, Gain drift at 23 °C to 125 °C : max. ± 1.754 ppm/K, Gain error at Typical: ± 0.0475 % max., Zero drift at -40 °C to 23 °C: max. ± 4.763 mK/K, Offset and scaling error: typ. ±0.486 K: max. ± 1.460 K
Measurement deviation (type S) Gain drift at 23 °C to 125 °C : max. ± 2.092 ppm/K, Gain drift at -40 °C to 23 °C : max ± 5.492 ppm/K, Zero drift at 23 °C to 125 °C: max. ± 6.094 mK/K, Zero drift at -40 °C to 23 °C: max. ± 4.680 mK/K, Gain error at Typical: ± 0.0396 % max., Offset and scaling error: typ. ± 0.477 K: max. ± 1.432 K
Measurement deviation (type T) Zero drift at -40 °C to 23 °C: max. ± 1.313 mK/K, Gain error at 23 °C: max. ± 0.0161 %., Zero drift at 23 °C to 125 °C: max. ± 2.753 mK/K, Offset and scaling error: typ. ± 0.102 K: max. ± 0.305 K, Gain drift at 23 °C to 125 °C : max. ± 2.662 ppm/K, Gain drift at -40 °C to 23 °C : max. ± 5.956 ppm/K
Confidence interval 3σ (Sigma)
Characteristic linearization Numerically interpolated
Cold junction compensation One cold junction per channel
Excitation
Sensor supply
Measurement input ↔ Module supply ±100 V (indefinitely), ±500 V (pulse voltage)
Galvanic isolation
Measurement input ↔ CAN ±100 V (indefinitely), ±500 V (pulse voltage)
Measurement input ↔ Housing ±100 V (indefinitely), ±500 V (pulse voltage)
Measurement input ↔ Measurement input ±100 V (indefinitely), ±500 V (pulse voltage)
Measurement input ↔ Sensor supply ±100 V (indefinitely), ±500 V (pulse voltage)
Device
Inputs 16
Accuracies
Maximum input voltage (channel) Device safety ±60 V (permanent), additional ESD protection, Operating safety ±60 V (permanent)
Power supply 6 ... 59 VDC
Switching thresholds of the operating voltage On 9 ±0.3 VDC / Off 6 ±0.3 VDC
Power consumption, typical 1.2 W
Rated power, max.
Operating temperature range -40 … 125 °C (-40 … 257 °F)
Storage temperature range -55 … 150 °C (-67 … 302 °F)
IP protection class IP 67 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Operating altitude (above sea level) max. 5000m
Dimensions L165 mm x W33 mm x D58 mm (L6.50 in x W1.30 in x D2.28 in)
Weight 415 g (0.91 lb)
Configuration interface Via CAN-FD or X-Link (tunneling) with IPEmotion PC, RT, CAN FD (ISO 11898-2-2016)) 125kBit/s to 5MBit/s 64 data bytes
Data rate Software adjustable up to 5Mbit/s (ISO11898-2-2016)
Input sockets Miniature TC connector (DIN IEC 584, ANSI MC 96.1)
Output sockets Spring contact connector 9-pin
Status-LED Yes, Display of the operating status as well as warnings in case of undervoltage or expired calibration
Protection against aggressive liquids
Accessories
Module IPE-HWI-M3-001 mounting plate, IPE-HWI-M3-002 mounting plate, IPE-COV-M3-001 cover cap
System cable 623-508 M3-CAN/PWR cable, CAN/PWR 0B-5p., 623-502 M3-CAN/PWR cable, LOG term, 623-503 M3-CAN/PWR cable, Mx-CAN/PWR, 623-509 M3-CAN/PWR cable, X-LINK/PWR, 623-507 Mx-CAN/PWR cable, banana, 623-504 M3-CAN/PWR cable, M-CAN/PWR, 623-506 M3-CAN cable, SUB-D/9S term, 623-500 M3-CAN/PWR cable, SubD9/S term, banana, 623-511 Mx-CAN cable, M-CAN/noPWR M-feed, 623-510 M3-CAN/ cable, CAN 1B-8p

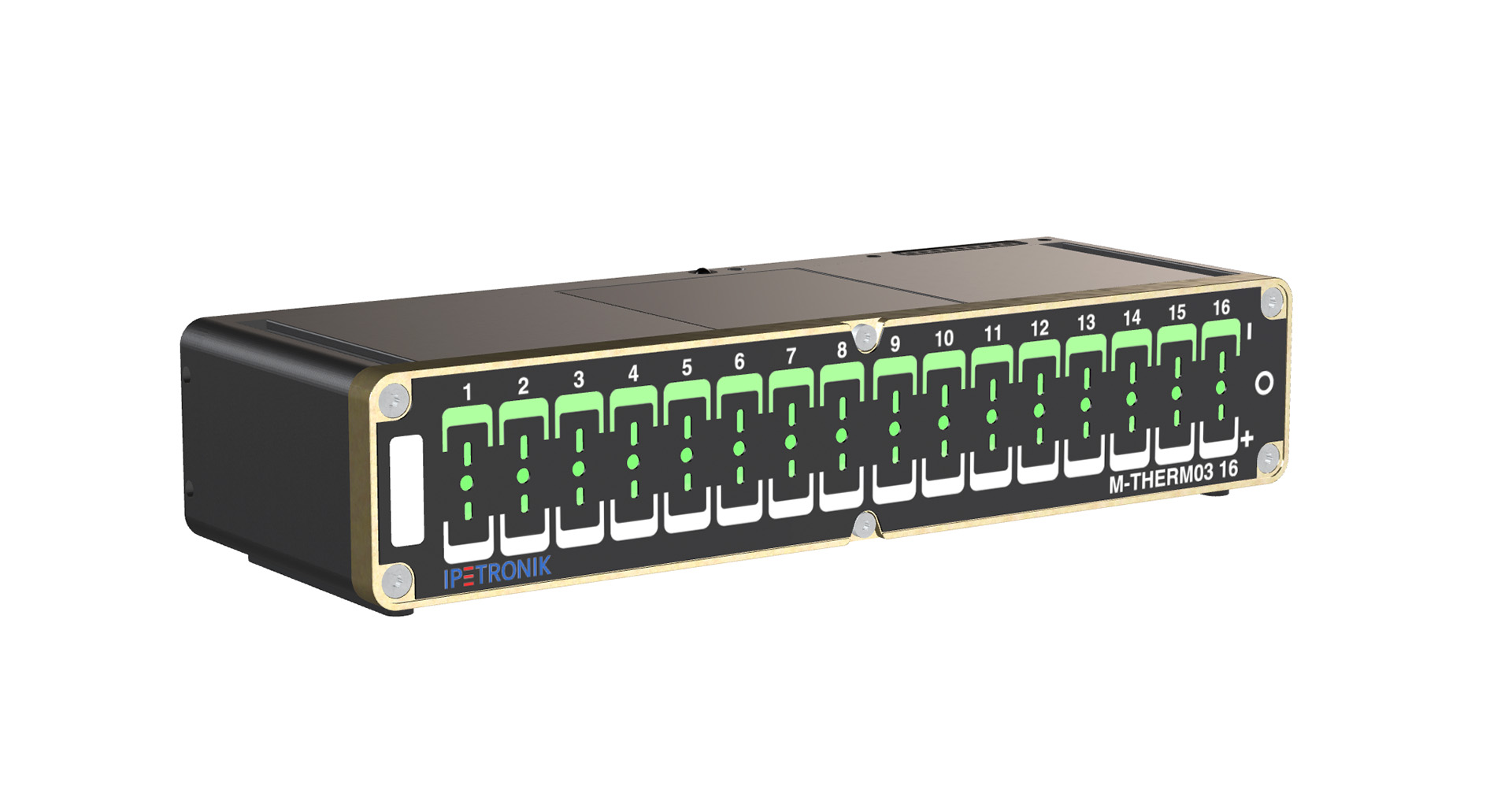

Ultra Compact, Highly Precise, Wireless

16 freely selectable measurement inputs

Enquire now!

Applications of the M-THERMO3 16

  • Thermal Safeguarding of Vehicle Components
    Validation of long-term strength under various ambient conditions
  • Interior Air Conditioning
    Function testing of the climate control
  • Cooling of safety-relevant Assemblies
    Verification of maximum permitted temperatures
  • Thermal Management System Optimization
    Monitoring of thermal limits in closed-loop systems
  • Cooling Capacity Determination
    Detection of temperature arrays at the system inlet and outlet

The M-THERMO3 16 is the most precise
temperature measurement module in its class

Measurement modules must withstand extreme requirements in order to deliver precise and valid results at all times. However, particularly if there is an external thermal influence on the measuring technology, this may have an undesirable effect on the measured values. Cutting-edge IPETRONIK technology reduces this to a minimum. Our latest development is the M-THERMO3 16 with nine supported thermocouple types. It is efficient, reliable and, above all, extremely precise. The module has an extremely compact design and offers unprecedented measuring accuracy in the segment of modular temperature recording – and it does so across all thermocouple types.



This graph shows the continuous development of temperature measurement inputs for our modules relative to the maximum deviation over the entire specified ambient temperature range (at a constant specified target temperature of 100 °C). This means that the M-THERMO3 16 is currently the most precise temperature measurement module in its class.

Further Applications

In the e-mobility sector:

  • Determination of temperature parameters of auxiliary units for system optimization
  • Optimization of temperature distribution in the passenger compartment

In the aerospace sector:

  • Altitude tests of engines in flight operations
  • Validation of fuel consumption and maintenance intervals of engines


System requirements: Software IPEmotion 2022 R2 + IPETRONIK-X PlugIn Version 02.17.00, IPEmotion RT 2022 R3
