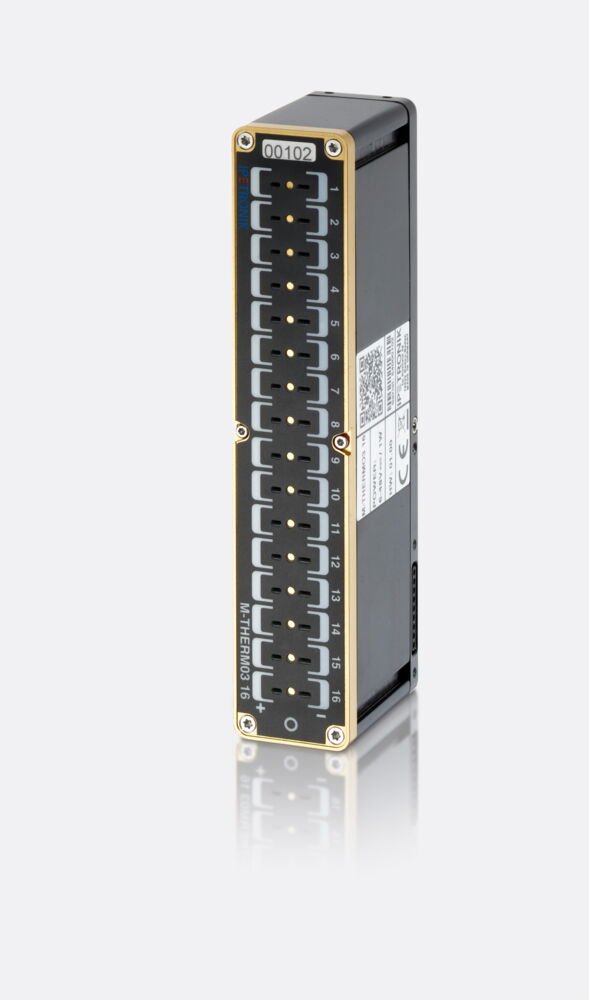

M-THERMO3 16
16 thermocouple measuring inputs
New
Temperature detection in perfection
With the new M-THERMO3 16 temperature measurement module, IPETRONIK is ushering in a new generation of devices. As the first module of the "M3 family", it sets standards in the field of modular measurement technology: the 16 channels, which can be freely selected by thermocouple type, offer with a high-resolution 24-bit analog-to-digital converter (ADC) offer the highest degree of accuracy and flexibility. The M-THERMO3 16 is ultra-compact, robust and features a new new wireless and magnetic connection concept - this saves time during installation and offers during assembly and offers the best possible security for the data connection.
Special Features
- High-resolution 24-bit technology
- Measurement data output on CAN-FD
- Cable free system connection → connection cable not required
- Offset adjustment can be set individually for each temperature channel
- User-defined, calibrated thermocouple calibration curves

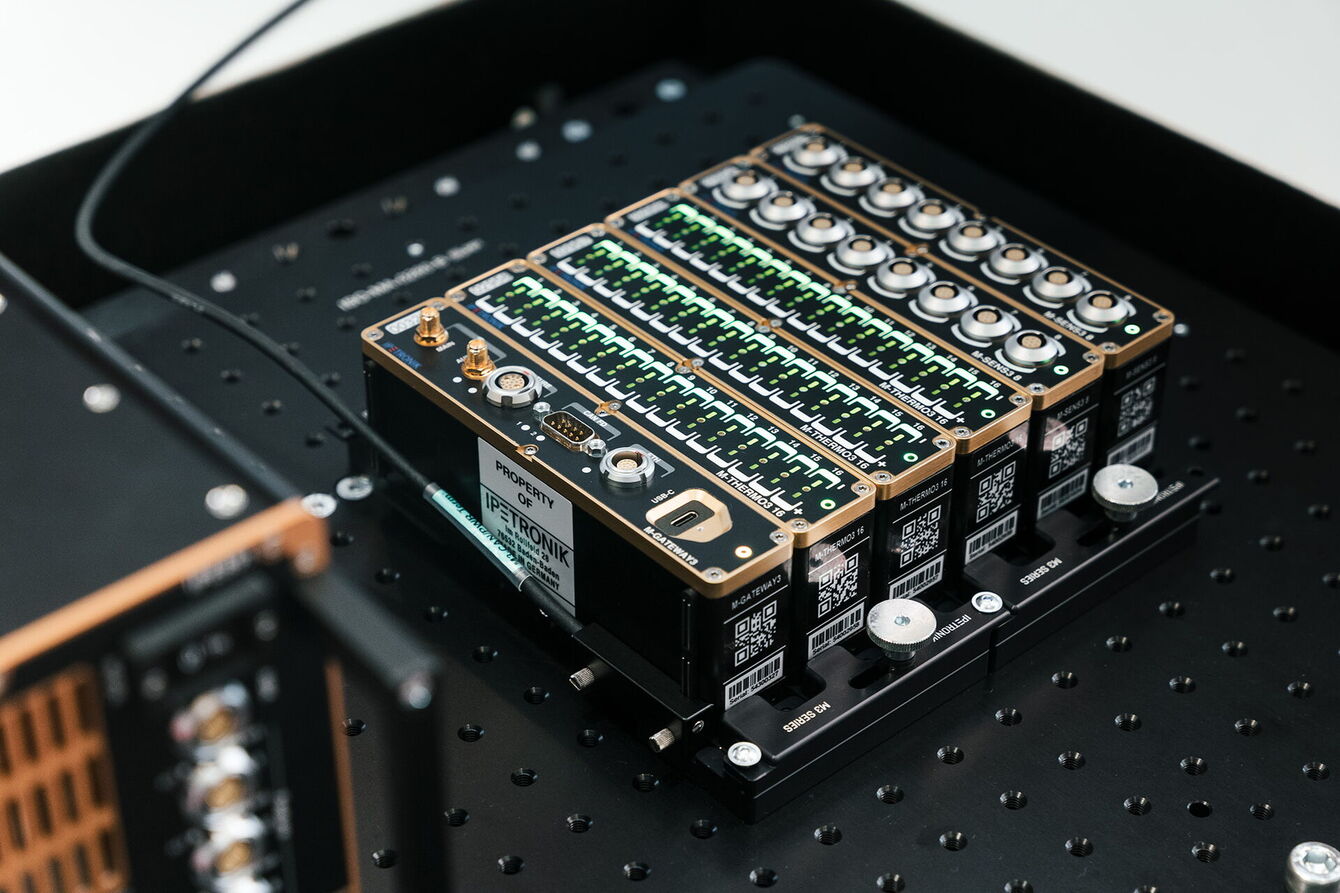

- Tool-free, magnetic connection technology
- Separate cold junction compensation for each channel
- Ultra compact and robust design
- IP 67 and extended temperature range
- Galvanic isolation (channel, CAN, supply, housing)

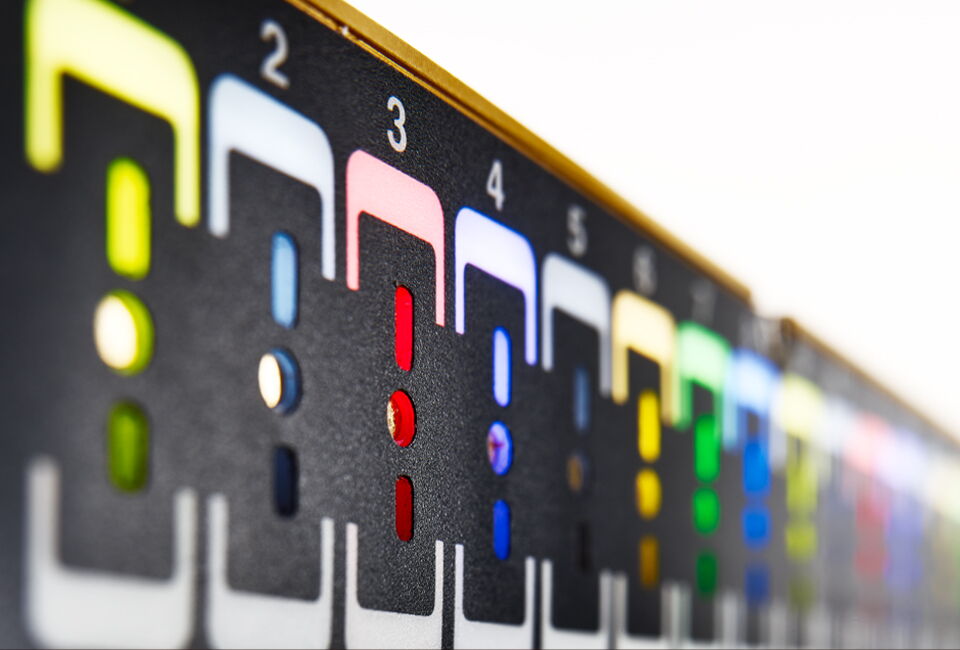

- Channel status LED at each measuring input with display of the selected thermocouple type according to IEC/ANSI
- Display of channel and device status in software interface (e.g. sensor break / undervoltage detection)
- System status information (system, devices, channel)
Technical data
| General channel properties | |
|---|---|
| AD converter | 24 bit (Sigma-Delta) |
| Special functions | Selectable number of averaging values (1-100) |
| Channel sampling rates | 2 / 5 / 10 / min - 1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 Hz |
| Total sampling rate | 3200 Hz |
| Hardware filter (static) | 22 Hz 2nd order, accuracy ±25 % |
| Input resistance | 15 MΩ (No influence of sensor break detection) |
| Channel LED | Yes, Sensor break detection, Channel-LED is activated for 10s after initialization in color of selected thermocouple type, Displays the color of the selected thermocouple type according to IEC/ANSI, Channel LED is flashing yellow during configuration |
| Channel temperature | |
| Measurement range | Type K (NiCr/NiAl) -270 ... 1372 °C (-454 ... 2502 °F), Type B (Pt30Rh/Pt6Rh) 0 ... 1820 °C (32 ... 3308 °F), Type C (W5Re/W26Re) 0 ... 2320 °C (32 ... 4208 °F), Type E (NiCr/CuNi) -270 ... 1000 °C (-454 ... 1832 °F), Type J (Fe/CuNi) -210 ... 1200 °C (-346 ... 2192 °F), Type N (NiCrSi/NiSi) -270 ... 1300 °C (-454 ... 2372 °F), Type R (Pt13Rh/Pt) -50 ... 1768 °C (-58 ... 3214 °F), Type S (Pt10Rh/Pt) -50 ... 1768 °C (-58 ... 3214 °F), Type T (Cu/CuNi) -270 ... 400 °C (-454 ... 752 °F) |
| Measurement deviation (type K) | Gain drift at -40 °C to 23 °C: max. ± 10.0 ppm/K, Gain error at 23 °C: max. ± 0.015 %., Offset and scaling error: typ. ± 0.11 K: max. ± 0.33 K, Zero drift at -40 °C to 23 °C: max. ± 1.65 mK/K, Zero drift at 23 °C to 125 °C: max. ± 3.35 mK/K, Gain drift at 23 °C to 125 °C: max. ± 10.0 ppm/K |
| Measurement deviation (type B) | Gain error at 23 °C: max. ± 0.0001 %, Offset and scaling error: typ. ± 0.55 K: max. ± 1.65 K, Zero drift at -40 °C to 23 °C: max. ± 7.0 mK/K, Gain drift at -40 °C to 23 °C: max. ± 0.5 ppm/K, Zero drift at 23 °C to 125 °C: max. ± 10.0 mK/K, Gain drift at 23 °C to 125 °C: max. ± 0.5 ppm/K |
| Measurement deviation (type C) | Gain error at 23 °C: max. ± 0.0001 %, Offset and scaling error: typ. ± 0.55 K: max. ± 1.65 K, Zero drift at -40 °C to 23 °C: max. ± 7.0 mK/K, Gain drift at -40 °C to 23 °C: max. ± 0.5 ppm/K, Zero drift at 23 °C to 125 °C: max. . ± 10.0 mK/K, Gain drift at 23 °C to 125 °C: max. ± 0.5 ppm/K |
| Measurement deviation (type E) | Gain error at 23 °C: max. ± 0.004 %, Offset and scaling error: typ. ± 0.09 K: max. ± 0.26 K, Zero drift at -40 °C to 23 °C: max. ± 1.30 mK/K, Gain drift at -40 °C to 23 °C : max. ± 9.0 ppm/K, Zero drift at 23 °C to 125 °C: max. ± 2.95 mK/K, Gain drift at 23 °C to 125 °C: max. ± 9.0 ppm/K |
| Measurement deviation (type J) | Gain error at 23 °C: max. ± 0.0025 %, Offset and scaling error: typ. ± 0.09 K: max. ± 0.28 K, Zero drift at -40 °C to 23 °C: max. ± 1.5 mK/K, Gain drift at -40 °C to 23 °C: max. ± 8.0 ppm/K, Zero drift at 23 °C to 125 °C: max. ± 3.1 mK/K, Gain drift at 23 °C to 125 °C: max. ± 8.0 ppm/K |
| Measurement deviation (type N) | Gain drift at -40 °C to 23 °C: max. ± 8.7 ppm/K, Gain error at 23 °C: max. ± 0.0001 %, Offset and scaling error: typ. ± 0.15 K: max. ± 0.45 K, Zero drift at -40 °C to 23 °C: max. ± 2.0 mK/K, Zero drift at 23 °C to 125 °C: max. ± 4.0 mK/K, Gain drift at 23 °C to 125 °C: max. ± 8.7 ppm/K |
| Measurement deviation (type R) | Gain drift at -40 °C to 23 °C: max. ± 0.5 ppm/K, Gain error at Typical: ± 0.0001 % max., Offset and scaling error: typ. ±0.59 K: max. ± 1.75 K, Zero drift at -40 °C to 23 °C: max. ± 7.0 mK/K, Zero drift at 23 °C to 125 °C: max. ± 10.25 mK/K, Gain drift at 23 °C to 125 °C: max. ± 0.5 ppm/K |
| Measurement deviation (type S) | Gain drift at 23 °C to 125 °C: max. ± 1.0 ppm/K, Gain error at Typical: ± 0.0001 % max., Offset and scaling error: typ. ± 0.57 K: max. ± 1.70 K, Zero drift at -40 °C to 23 °C: max. ± 7.25 mK/K, Gain drift at -40 °C to 23 °C : max ± 0.5 ppm/K, Zero drift at 23 °C to 125 °C: max. ± 10.25 mK/K |
| Measurement deviation (type T) | Gain error at 23 °C: max. ± 0.0001 %., Offset and scaling error: typ. ± 0.11 K: max. ± 0.33 K, Zero drift at -40 °C to 23 °C: max. ± 1.75 mK/K, Gain drift at -40 °C to 23 °C: max. ± 4.5 ppm/K, Zero drift at 23 °C to 125 °C: max. ± 3.5 mK/K, Gain drift at 23 °C to 125 °C: max. ± 5.0 ppm/K |
| Characteristic linearization | Numerically interpolated |
| Cold junction compensation | One cold junction per channel |
| Galvanic isolation | |
| Measurement input ↔ Module supply | ±100 V (indefinitely), ±500 V (pulse voltage) |
| Measurement input ↔ CAN | ±100 V (indefinitely), ±500 V (pulse voltage) |
| Measurement input ↔ Housing | ±100 V (indefinitely), ±500 V (pulse voltage) |
| Measurement input ↔ Measurement input | ±100 V (indefinitely), ±500 V (pulse voltage) |
| Measurement input ↔ Sensor supply | ±100 V (indefinitely), ±500 V (pulse voltage) |
| Device | |
| Inputs | 16 |
| Maximum input voltage (channel) | Operating safety ±60 V (permanent), Device safety ±60 V (permanent), additional ESD protection |
| Power supply | For On-board power supply of 12 | 24 | 48 V, 6 ... 59 VDC |
| Switching thresholds of the operating voltage | On 9 ±0.3 VDC / Off 6 ±0.3 VDC |
| Power consumption, typical | 1.2 W |
| Operating temperature range | -40 … 125 °C (-40 … 257 °F) |
| Storage temperature range | -55 … 150 °C (-67 … 302 °F) |
| IP protection class | IP 67 (ISO 20653 - 2013) |
| Relative humidity | 5 ... 95 % |
| Operating altitude (above sea level) | max. 5000m |
| Dimensions | L165 mm x W33 mm x D58 mm (L6.50 in x W1.30 in x D2.28 in) |
| Weight | 415 g (0.91 lb) |
| Configuration interface | Via CAN-FD or X-Link (tunneling) with IPEmotion PC, RT, CAN FD (ISO 11898-2-2016)) 125kBit/s to 5MBit/s 64 data bytes |
| Data rate | Software adjustable up to 5Mbit/s (ISO11898-2-2016) |
| Input sockets | Miniature TC connector (DIN IEC 584, ANSI MC 96.1) |
| Output sockets | Spring contact connector 9-pin |
| Status-LED | Yes, Display of the operating status as well as warnings in case of undervoltage or expired calibration |
| Accessories | |
| Module | IPE-COV-M3-001 cover cap, IPE-HWI-M3-001 mounting plate, IPE-HWI-M3-002 mounting plate |
| System cable | 623-500 M3-CAN/PWR cable, SubD9/S term, banana, 623-502 M3-CAN/PWR cable, LOG term, 623-503 M3-CAN/PWR cable, 623-504 M3-CAN/PWR cable, M-CAN/PWR, 623-506 M3-CAN cable, SUB-D/9S term, 623-507 M3-CAN/PWR cable, banana, 623-508 M3-CAN/PWR cable, CAN/PWR 0B-5p., 623-509 M3-CAN/PWR cable, X-LINK/PWR, 623-510 M3-CAN/ cable, ETAS-CAN 1B-8p, 623-511 M3-CAN cable, M-CAN/noPWR M-feed |
Applications of the M-THERMO3 16
- Thermal Safeguarding of Vehicle Components
Validation of long-term strength under various ambient conditions - Interior Air Conditioning
Function testing of the climate control - Cooling of safety-relevant Assemblies
Verification of maximum permitted temperatures - Thermal Management System Optimization
Monitoring of thermal limits in closed-loop systems - Cooling Capacity Determination
Detection of temperature arrays at the system inlet and outlet
The M-THERMO3 16 is the most precise
temperature measurement module in its class
Measurement modules must withstand extreme requirements in order to deliver precise and valid results at all times. However, particularly if there is an external thermal influence on the measuring technology, this may have an undesirable effect on the measured values. Cutting-edge IPETRONIK technology reduces this to a minimum. Our latest development is the M-THERMO3 16 with nine supported thermocouple types. It is efficient, reliable and, above all, extremely precise. The module has an extremely compact design and offers unprecedented measuring accuracy in the segment of modular temperature recording – and it does so across all thermocouple types.
This graph shows the continuous development of temperature measurement inputs for our modules relative to the maximum deviation over the entire specified ambient temperature range (at a constant specified target temperature of 100 °C). This means that the M-THERMO3 16 is currently the most precise temperature measurement module in its class.
Further Applications
In the e-mobility sector:
- Determination of temperature parameters of auxiliary units for system optimization
- Optimization of temperature distribution in the passenger compartment
In the aerospace sector:
- Altitude tests of engines in flight operations
- Validation of fuel consumption and maintenance intervals of engines
System requirements: Software IPEmotion 2022 R2 + IPETRONIK-X PlugIn Version 02.17.00, IPEmotion RT 2022 R3
