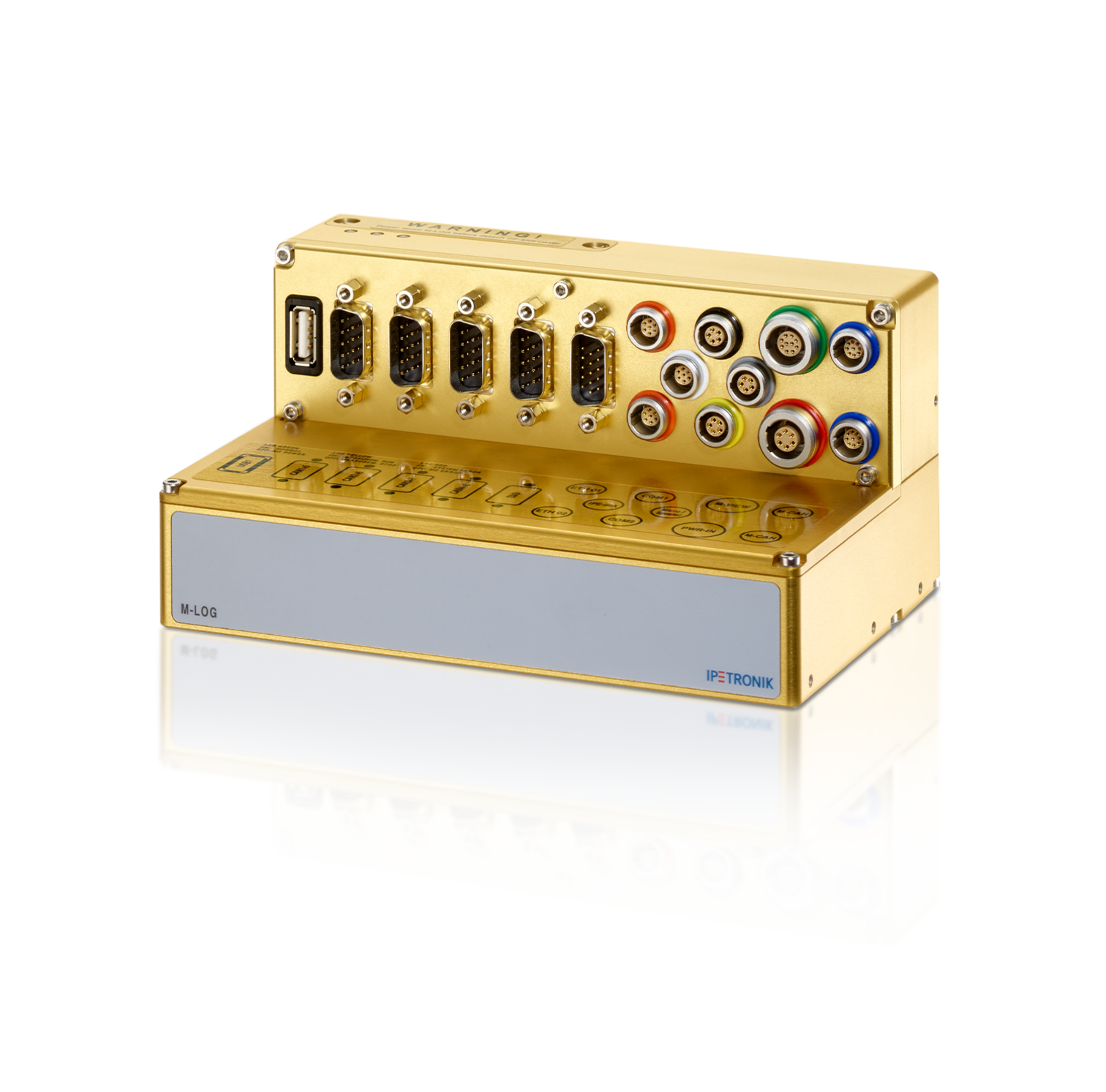

M-LOG V3
Modular data logger for fleet management
Special Features
- CAN FD, LIN, ETH inputs in combinations available
- cFast data storage up to 64 GB
- 4G modem and WiFi interface with COMgate V3
- Microphone input and audio output
- Driver display via IPEmotion ME
- Quickstart, Wake on CAN (WoC)
- Galvanic isolation of CAN FD, LIN, ETH, DIG I/O inputs
- Developed for applications in harsh environments
- Software integration via XCP on ETH / A2L format
Technical Data
| Interfaces | |
|---|---|
| CAN HS (ISO 11898-2) | Yes |
| CAN LS (low speed) | Yes |
| CAN FD | Yes |
| LIN (1.3 & 2.0) | Yes |
| ETH (100 Mbit) | 2 |
| FlexRay | Via FlexRay Satellite Interface |
| Digital I/O | 4/4 |
| COM (serial RS232) | 2 |
| Audio input / output | 1 |
| Ethernet interface to PC | 100 Mbit |
| USB 2.0 ports | 2 |
| Lemo, 9-pin for M-CAN modules | 2 |
| Driver display system | IPEmotion ME |
| Interface option 1 | 12 CAN FD |
| Interface option 2 | 8 CAN FD + 4 LIN |
| Interface option 3 | 8 CAN FD + 2 ETH |
| Interface option 4 | 6 CAN FD + 2 LIN + 2 ETH |
| Interface option 5 | 4 CAN FD + 2 ETH |
| Extender boxes | FlexRay, LIN, CAN FD Satellite Interface |
| Device | |
| Operating system | Linux (64 bit) |
| Processor | Intel ATOM E3805 |
| RAM memory | 2 GB |
| Inputs | 16 |
| Data Transmission | extern |
| Data logger software | IPEmotion RT |
| Storage medium | cFast |
| Storage capacity | 32 / 64 GB |
| Voltage supply | 9 … 36 VDC |
| Supply voltage thresholds | On 9 ±0.3 VDC / Off 6 ±0.3 VDC |
| Power consumption, typical | 9.0 W |
| Working temperature range | -40 … 85 °C (-40 … 185 °F) |
| Storage temperature range | -45 … 95 °C (-49 … 203 °F) |
| IP-Code | IP 54 (ISO 20653 - 2013) |
| Relative humidity | 5 ... 95 % |
| Dimensions | B158 mm x H69 mm x T102 mm (6.22 in x 2.72 in x 4.02 in) |
| Protocols and traffic | |
| CCP / XCP on CAN | Yes |
| J1939 | Yes |
| GM-LAN | Yes |
| OBD | Yes |
| WWH-OBD | Yes |
| UDS / ODX / PDX | Yes |
| XCP on ETH | Yes |
| FlexRay / XCP on FlexRay | Yes |
| SOME IP | Yes |
| FlexRay-Traffic | Yes |
| CAN-Traffic | Yes |
| LIN-Traffic | Yes |
| CAN-send | Yes |
| Software functions | |
| Configuration software | IPEmotion RT.UI |
| Wake on CAN (WoC) | Yes |
| On board scripting | Yes |
| On board math & logic operations | Yes |
| File formats for data storage | ZIPRT, IAD, MDF4.x, PCAP, PCAPNG (IPEmotionRT) |
| Wireless communication | |
| GNSS (Global Navigation Satellite System) | 1 Hz (GPS) |
| WiFi | Via COMgate V3, IPEwifi V3 |
| Modem | Via COMgate V3 |
| IPEcloud / FTP-Server | Yes |
| Video | |
| IP-camera (Real Time Streaming Protocol) | Yes |
| USB Video Class (UVC) | Yes |
| Accessories | |
| System cable | 620-691 FLEETlog-VIEW cable IPEconnect, 620-591, 630-507 X-Link cable M-LOG PR08 ETH, 620-649 LOG ETH-IN cable EXTENDER ETH angled, 620-692 LOG ETH cable COMgate V3, 620-607 LOG cable iMIC, 620-574 LOG-PR05 cable banana |
| Input cable | 600-739 SAM-ISO CAN/PWR cable SUB-D, banana, 620-324 M-LOG PR03-05 DI/O cable open, 620-621 OBD2 cable M-LOG PR05, 620-578 M-VIEWfleet cable PR05, 620-685 LOG CAN/LIN cable 2x CAN/LIN SubD/P, 620-686 M-LOG-PR08 ETH cable RJ45 (crosslink), USB2ETH-MLOG |
| Antenna | GPS-REC-SER-181 GPS Magnetic base antenna, 620-631 M-LOG PR08 COM2 cable GPS |
