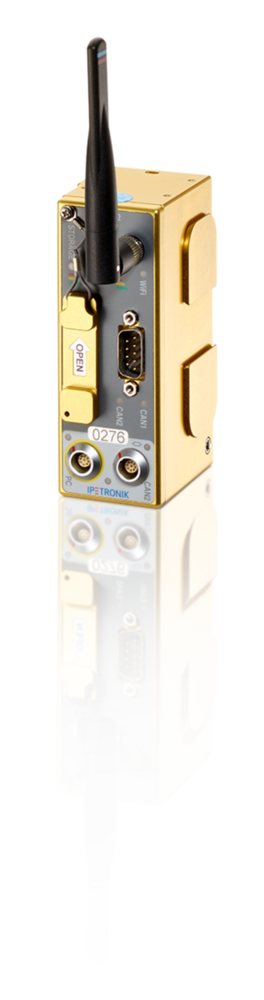

IPEhub2

Compact data logger for experimental validation

IPEhub2

Compact data logger for experimental validation
  • 2 CAN Input
  • SD data storage up up to 32 GB
  • Visualisation via mobile devices and IPEmotion.ME App
  • Galvanic isolation of CAN inputs
  • Developed for applications in harsh environments
  • Configuration with IPEmotion RT.UI via LAN WLAN interface
  • Online calculation,classification, CAN-sens functionality
  • Encrypted data transfer WPA2

Enquire now Datasheet Add to notelist

Technical Data

Inputs 2 CAN
Data Transmission WLAN
Voltage supply 9 … 36 VDC
Working temperature range -40 … 85 °C (-40 … 185 °F)
IP-Code IP 54 (ISO 20653 - 2013)

IPEhub2 – Technical data

Download as PDF

Interfaces
CAN HS (ISO 11898-2) 2
Ethernet interface to PC Ethernet (100 Mbit)
Lemo, 9-pin for M-CAN modules 1
Driver display system IPEmotion ME
Interface option 1 2 CAN
Interface option 2
Interface option 3
Interface option 4
Interface option 5
Device
Operating system Linux (32 bit)
Processor Arm
RAM memory 256 MB
Inputs 2 CAN
Performance Index
Data Transmission WLAN
Data logger software IPEmotion RT
Storage medium SD (power failure protection & read fault management)
Storage capacity 16/ 32 GB
Voltage supply 9 … 36 VDC
Supply voltage thresholds On 9 ±0.3 VDC / Off 6 ±0.3 VDC
Power consumption, typical 4.0 W
Working temperature range -40 … 85 °C (-40 … 185 °F)
Storage temperature range -45 … 95 °C (-49 … 203 °F)
IP-Code IP 54 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Dimensions B106 mm x H43 mm x T62 mm (4.17 in x 1.69 in x 2.44 in)
Weight 360 g (0.79 lb)
Protocols and traffic
CCP / XCP on CAN Yes
J1939 Yes
OBD Yes
UDS / ODX / PDX Yes
CAN-Traffic Yes
CAN-send Yes
Software functions
Configuration software IPEmotion RT.UI
On board math & logic operations Yes
File formats for data storage .ZIPRT, MDF4.1
Wireless communication
WiFi 2.4 GHz (WiFi 802.11 b/g)
IPEcloud / FTP-Server Yes
Accessories
System cable 620-560 M-CAN cable, 620-561 M-PWR term cable, banana, 620-680 IPEhub2 PC cable RJ45
Input cable 620-684 IPEhub2/IPElog CAN1+2 cable, 2x CAN SubD/P
Antenna IPE-ANT-011, IPE-ANT-004
