IPE853
Scalable data logger for fleet management and experimental validation
IPE853 – Developed for Fleet Testing and Test Drives under Extreme Conditions

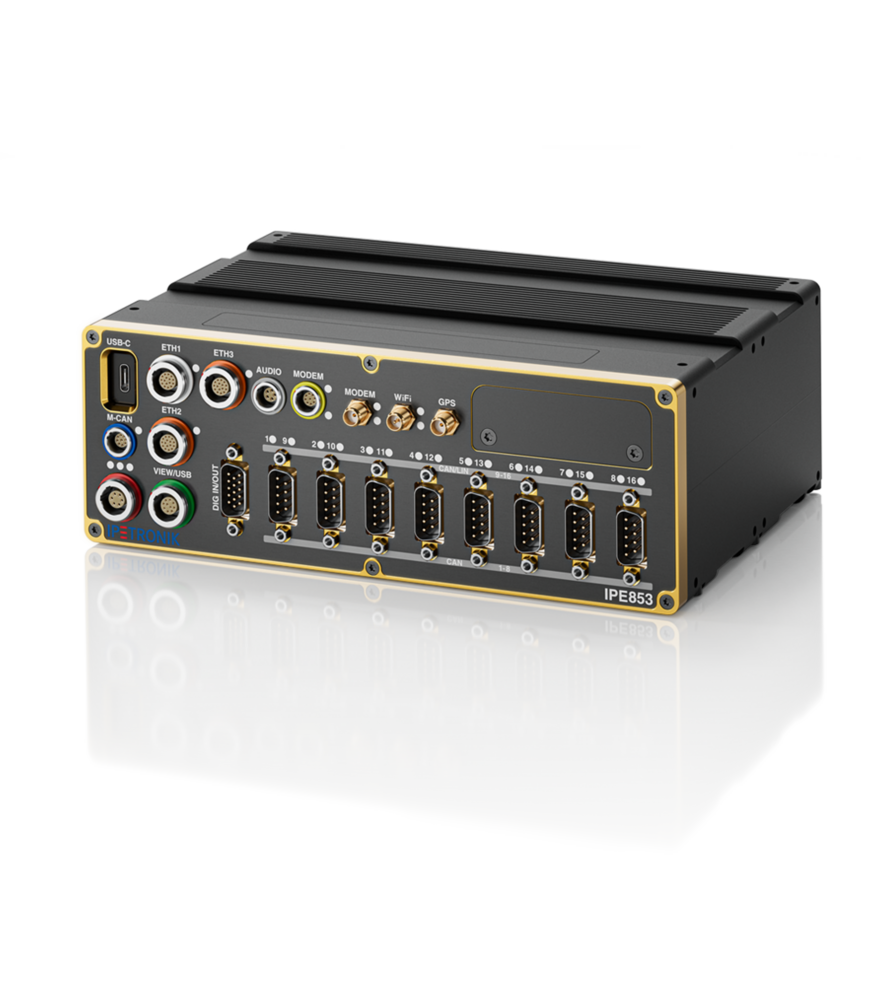

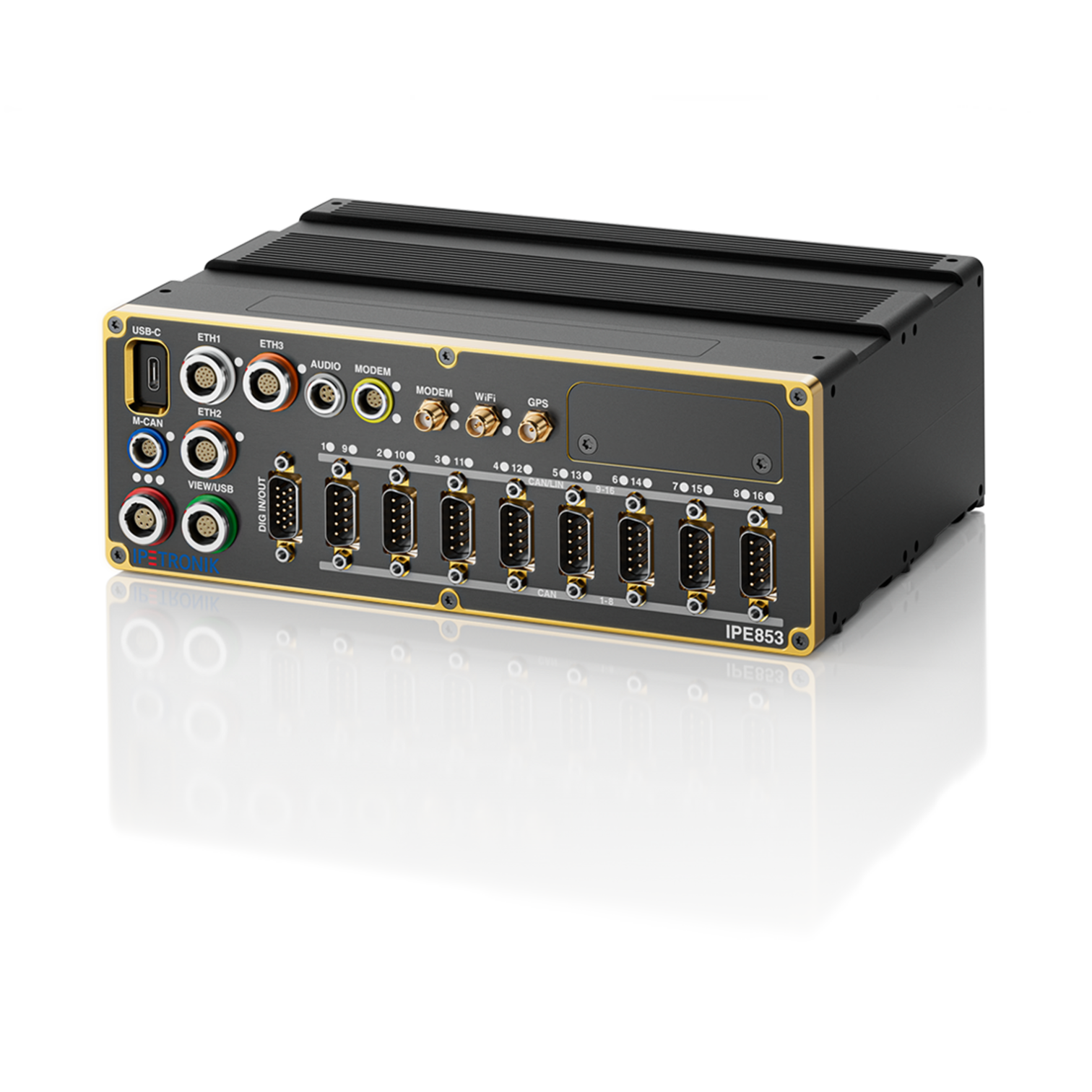

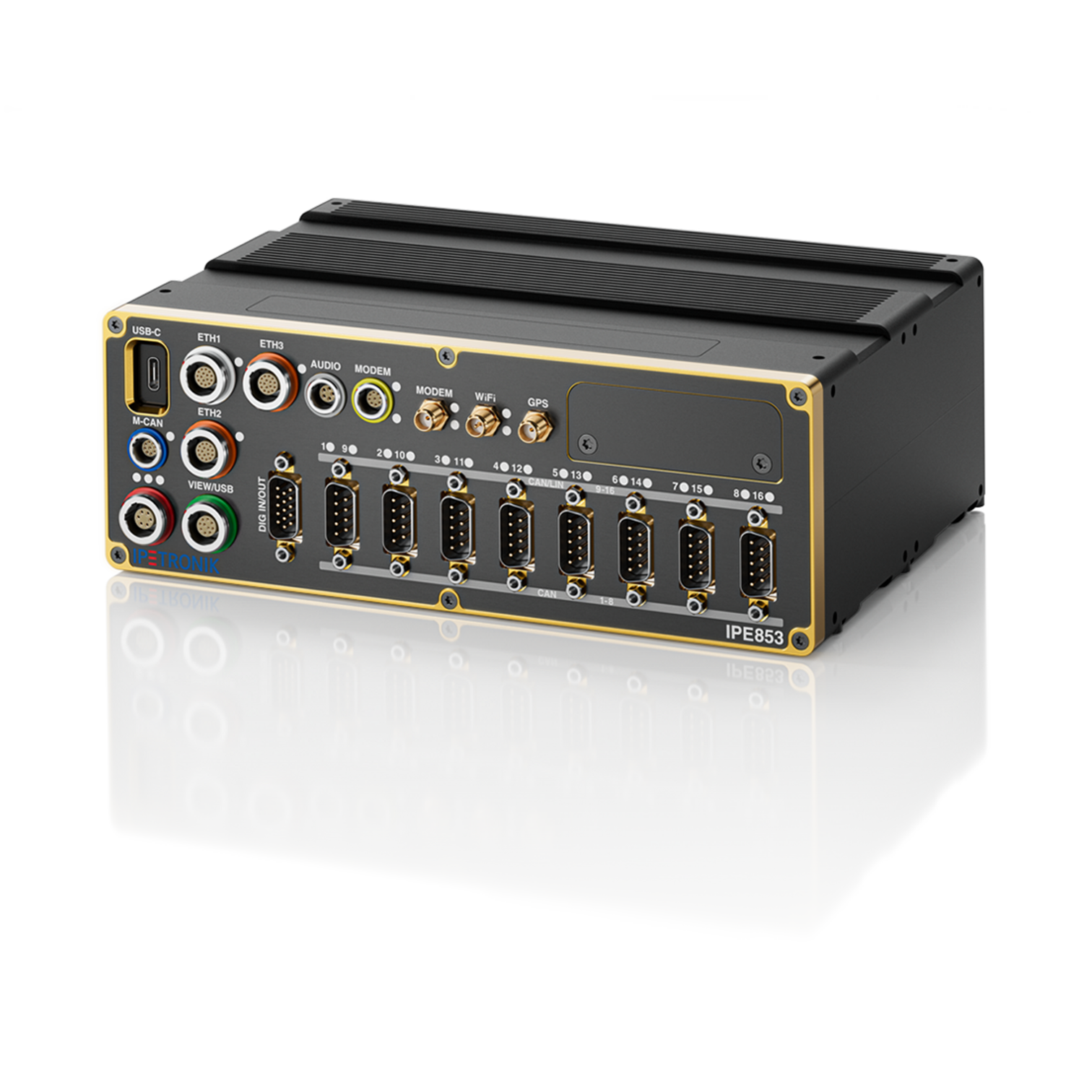

The IPE853 is the ideal data logger for tests under extreme conditions with various vehicles and test profiles, including extensive hot and cold climate test drives during which the complete vehicle as well as its components are being tested. Thanks to the powerful x6425RE processor, the successor of the IPElog2 has a performance index of 2894 for even more efficient complex measurements within the latest CAN FD, LIN, and Ethernet networks. The highly ruggedized and compact logger with the aluminum enclosure meets the protection class IP54 and has a wide temperature range of -40 to 85 °C at a relative humidity of 5 to 95 percent.
Special Features
- Inputs 8 CAN FD-SIC, 8 CAN FD-SIC / LIN switchable, 3 ETH
- 16 GB RAM
- Quickstart, No Message Lost (NML), Wake on CAN/LIN/FlexRay
- cFast data storage up to 1000 GB
- Integrated 4G-/LTE-modem, WiFi and GPS receiver
- Visualisation via display and mobile devices with IPEmotion ME
- Galvanic isolation of CAN FD SIC, LIN, ETH, DIG I/O inputs
- Developed for applications in harsh environments
- Software integration via XCP on ETH / A2L format
Technical Data
| Interfaces | |
|---|---|
| CAN HS (ISO 11898-2) | Yes |
| CAN FD | Yes |
| LIN (1.3 & 2.0) | Yes |
| ETH (1 GbE) | 2 |
| FlexRay | Via FlexRay Satellite Interface |
| Digital I/O | 4/4 |
| Audio input / output | 1 |
| Ethernet interface to PC | Ethernet (1GBit) |
| USB 3.0 ports | 1 |
| Lemo, 9-pin for M-CAN modules | 1 |
| Driver display system | IPEmotion ME |
| Extender boxes | FlexRay, LIN, CAN FD Satellite interface |
| Device | |
| Operating system | Linux (64 bit) |
| Processor | INTEL X6425RE |
| RAM memory | 16 GB |
| Inputs | 8 CAN FD-SIC, 8 CAN FD-SIC / 8 LIN switchable, 2 ETH |
| Performance Index | 2894 |
| Data Transmission | Modem, WiFi, GNSS |
| Data logger software | IPEmotion RT |
| Storage medium | cFast |
| Storage capacity | 240 / 1000 GB |
| Voltage supply | 9 … 36 VDC |
| Power consumption, typical | 16 W |
| Working temperature range | -40 … 85 °C (-40 … 185 °F) |
| Storage temperature range | -45 … 90 °C (-49 … 194 °F) |
| IP-Code | IP 54 (ISO 20653 - 2013) |
| Relative humidity | 5 ... 95 % |
| Dimensions | W8.13 in x H2.87 in x D6.56 in (W206 mm x H73 mm x D166 mm) |
| Protocols and traffic | |
| CCP / XCP on CAN | Yes |
| J1939 | Yes |
| GM-LAN | Yes |
| OBD | Yes |
| WWH-OBD | Yes |
| UDS / ODX / PDX | Yes |
| XCP on ETH | Yes |
| FlexRay / XCP on FlexRay | Yes |
| SOME IP | Yes |
| FlexRay-Traffic | Yes |
| CAN-Traffic | Yes |
| LIN-Traffic | Yes |
| ETH-Traffic | Yes |
| ASAM CMP | Yes, including PLP, TECMP |
| DLT | Yes |
| CAN-send | Yes |
| Software functions | |
| Configuration software | IPEmotion RT.UI |
| No Message Lost (NML) | Yes |
| Wake on CAN (WoC) | Yes |
| Wake on LIN (WoL) | Yes |
| Wake on FlexRay (WoFR) | Yes |
| On board scripting | Yes |
| On board math & logic operations | Yes |
| File formats for data storage | ZIP, BLF, AVI, WAV, MDF4.x, ASC, PCAP, PCAPNG, DLT |
| Wireless communication | |
| GNSS (Global Navigation Satellite System) | 20 Hz (GPS) |
| WiFi | 2.4 GHz / 5 GHz (WiFi 802.11 a/b/g/n/ac) |
| Modem | 4G (LTE) |
| IPEcloud / FTP-Server | Yes |
| Video | |
| IP-camera (Real Time Streaming Protocol) | Yes |
| USB Video Class (UVC) | Yes |
| Accessories | |
| System cable | 630-524 X-Link system cable LOG X-Link, 620-072 Gigabit-ETH LEMO 1B14p ,PWR cable RJ45, banana/S, 630-526 X-LINK cable LOG GB-ETH LEMO 1B14p, 620-574 LOG-PR05 cable banana, 620-679 LOG-DI/O cable iMIC, 620-688 LOG GB-ETH cable RJ45 |
| Input cable | 620-324 M-LOG PR03-05 DI/O cable open, 620-621 OBD2 cable M-LOG PR05, 620-684 IPEhub2/IPElog CAN1+2 cable, 2x CAN SubD/P, 620-724 IPElog2 CAN/LIN cable CAN/LIN, 2xSubD/P |
| Antenna | 114630 |
Efficient Data Management with Mobile App and Cloud Connection
The hard- and software system is comprehensive and perfectly harmonized. The data logger software IPEmotion RT guarantees a fast configuration, data collection, and evaluation. The "Plug & Play" configuration is easy and intuitive. The data are automatically collected while driving. If you are using the mobile edition IPEmotion ME of our DAQ software, you can continuously and comfortably visualize all relevant operational data online on tablets and smartphones. The software also provides extensive analysis and visualization features for data evaluation. A direct cloud connection ensures the real-time data transfer to the IPEcloud and their decentralized retrieval.
Scalable Complete System for Varying Measurement Tasks
As a scalable data logger, the IPE853 covers various measurement tasks in the quality assurance of the complete vehicle. It has a large number of measurement inputs for CAN, LIN, as well as Ethernet and can be extended to handle all kinds of physical quantities and digital bus sizes, providing easy access to different bus protocols and ECU protocols (signal-based as well as via bus traffic measurements) in combination with video and audio data. By switching from CAN to LIN, you can quickly react to changing circumstances, which saves time and makes testing more efficient. Thanks to its plugs that are compatible with all IPElog2 and M-LOG versions, the IPE853 is the ideal upgrade for existing logger systems.
