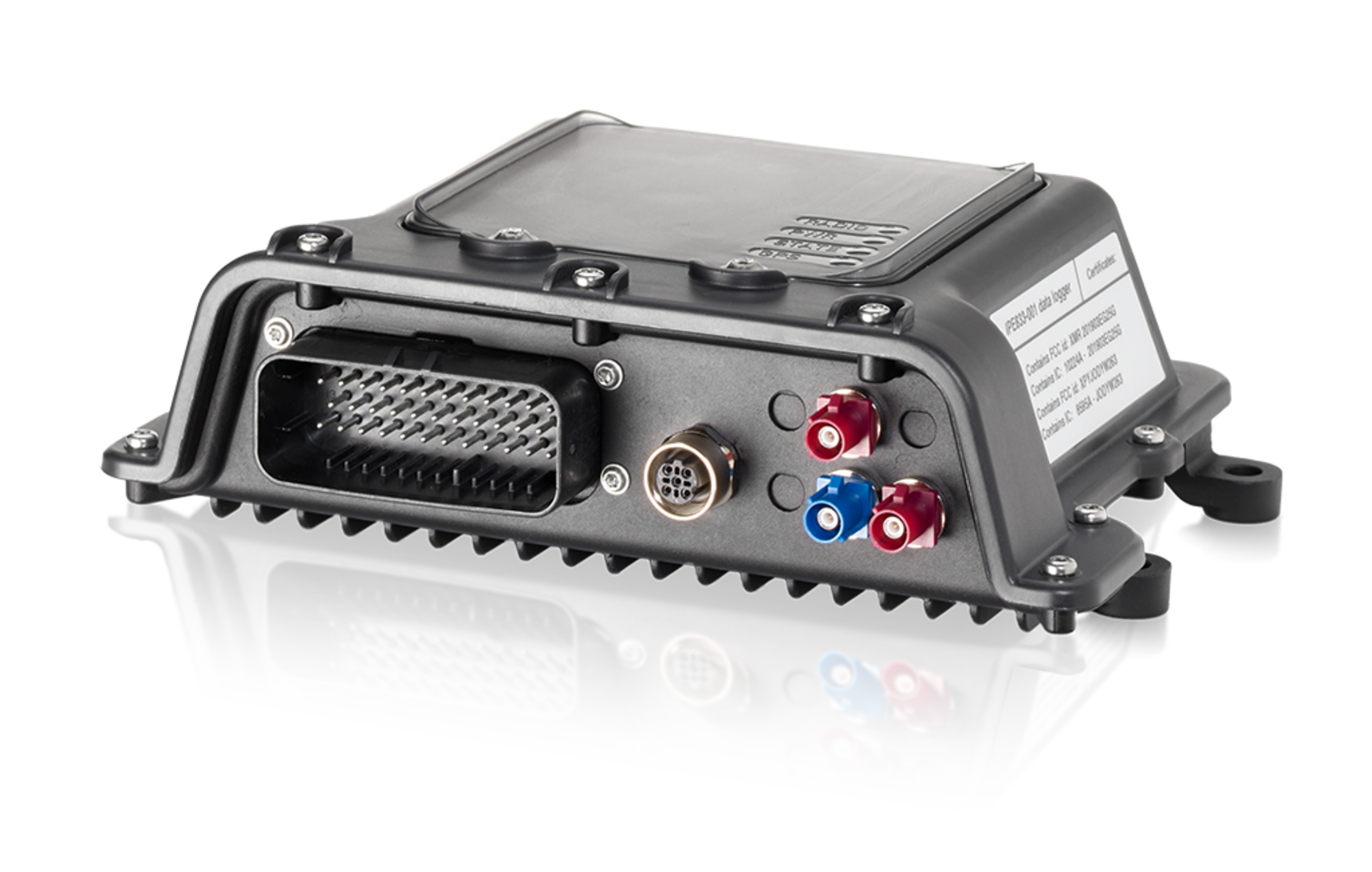

IPE833
Scalable datalogger for fleetmanagement and validation
Developed for Fleet Testing
The IPE833 data logger has been designed for the large-scale acquisition of automotive networks and physical parameters for vehicle development. The support of a wide variety of protocols, such as CCP/XCPonCAN, J1939, OBD, WWH-OBD, KWPonCAN, UDS/ODX/PDX, CAN-Traffic, and CAN-send, allows the logger to collect all kinds of vehicle data (e.g. speed, rpm, temperature, fuel consumption). With its large storage capacity of up to 64 GB as well as a powerful but economical ARM processor, operating data can be recorded continuously over a long period of time. The integrated modem, WiFi, and GPS perfectly equip the IPE833 for remote data transmission and fleet monitoring.
Special Features
- 4 CAN FD SIC Inputs
- Integrated 4G- / LTE-Modem, WiFi and GPS-receiver
- 4 Analogue Inputs
- 4 Digital Inputs
- Integrated accelerometer and gyro
- Protection class IP67
- Developed for harsh environments
- Softwaresupport starting with IPEmotionRT 2023 R2
Smart Configuration, Acquisition, and Analysis
The user-friendly interface guarantees a quick configuration (via the data logger software IPEmotion RT), data acquisition, and analysis. The data are collected automatically while driving, with IPEmotion ME – the mobile edition of IPEmotion – ensuring the continuous recording of relevant operating data as well as their online visualization. The data can then be analyzed with IPEmotion RT’s wide variety of analysis and visualization options. The direct cloud connection allows you to transfer the data to the cloud in real time and access them from all over the world.
Rugged, Reliable, and Flexible
The rugged IPE833 is perfect for the reliable data acquisition under harsh conditions. With its temperature range of -40 to up to 70 °C, precision is guaranteed even in extreme environments. The IP67 enclosure protects the logger against dust and water, making it ideal for the installation within the vehicle. Its flexible multi-plug ensures a quick and direct connection to the vehicle supply system and facilitates the setup of large vehicle fleets. Thanks to its sturdy design, IP67 protection rating, build in GSM- and GNSS-functionality, the IPE833 is perfectly suited for operational- and measurement data acquisition, as well as remote diagnostics at commercial-, passenger vehicles as well as mobile construction- and agricultural machines.
You are interested in the IPE833?
Please fill in the contact form - we will get in touch with you as soon as possible.
Technical Data
| Interfaces | |
|---|---|
| CAN HS (ISO 11898-2) | Yes |
| CAN FD | Yes |
| ETH (100 Mbit) | logger configuration or ETH-input |
| Analog input | 4 x 0 ... 30 VDC @ 12 bit resolution; 1 % accuracy |
| Digital I/O | 4/2 |
| Ethernet interface to PC | Ethernet (100 Mbit) |
| USB 2.0 ports | No |
| USB 3.0 ports | 1, max. current 900 mA |
| Driver display system | IPEmotion ME |
| Device | |
| Operating system | Linux (64 bit) |
| Processor | ARM i.MX8 M Plus Quad A53 |
| RAM memory | eMMC 8 GB, 4 GB |
| Inputs | 4 x CAN FD SIC |
| Performance Index | 542 |
| Data Transmission | Modem, WiFi, GPS |
| Data logger software | IPEmotion RT |
| Storage medium | MikroSD |
| Storage capacity | 64 / 256 GB |
| Voltage supply | 9 … 36 VDC |
| Power consumption, typical | < 2.5 W |
| Working temperature range | -40 ... 158 °F (-40 ... 70 °C) |
| Storage temperature range | -40 ... 158 °F (-40 ... 70 °C) |
| IP-Code | (with closed top cover only), IP 67 (ISO 20653 - 2013) |
| Relative humidity | 5 ... 95 % |
| Dimensions | B188 mm x H62 mm x T154 mm (7.40 in x 2.44 in x 6.06 in) |
| Protocols and traffic | |
| CCP / XCP on CAN | Yes |
| J1939 | Yes |
| OBD | Yes |
| WWH-OBD | Yes |
| KWP on CAN | Yes |
| UDS / ODX / PDX | Yes |
| CAN-Traffic | Yes |
| ETH-Traffic | Yes |
| DLT | Yes |
| CAN-send | Yes |
| Software functions | |
| Configuration software | IPEmotion RT.UI |
| No Message Lost (NML) | No |
| Wake on CAN (WoC) | Yes (global for all inputs) |
| On board scripting | Yes |
| On board math & logic operations | Yes |
| File formats for data storage | ZIPRT, IAD, MDF4.x, PCAP, PCAPNG (IPEmotionRT) |
| Wireless communication | |
| GNSS (Global Navigation Satellite System) | 10 Hz (GPS/ GLONASS/ QZSS/ BeiDou) |
| WiFi | 5 GHz (WiFi802.11 ac, kein 2.4 GHz) |
| Modem | Mini-SIM (2FF), 4G (LTE) |
| IPEcloud / FTP-Server | Yes |
| Accessories | |
| System cable | 620-735 ETH M12 D-Code cable RJ45 |
| Input cable | 666-539 IPE833 Input cable |
| Antenna | IPE-ANT-019 |
| optional | IPE-ZUK-258 (battery 3350 mAh), IPE-ZUK-263 (battery 13400 mAh), IPE-ZUK-259 (USB Cover), IPE-CAM-007 |
