ETHOS 2

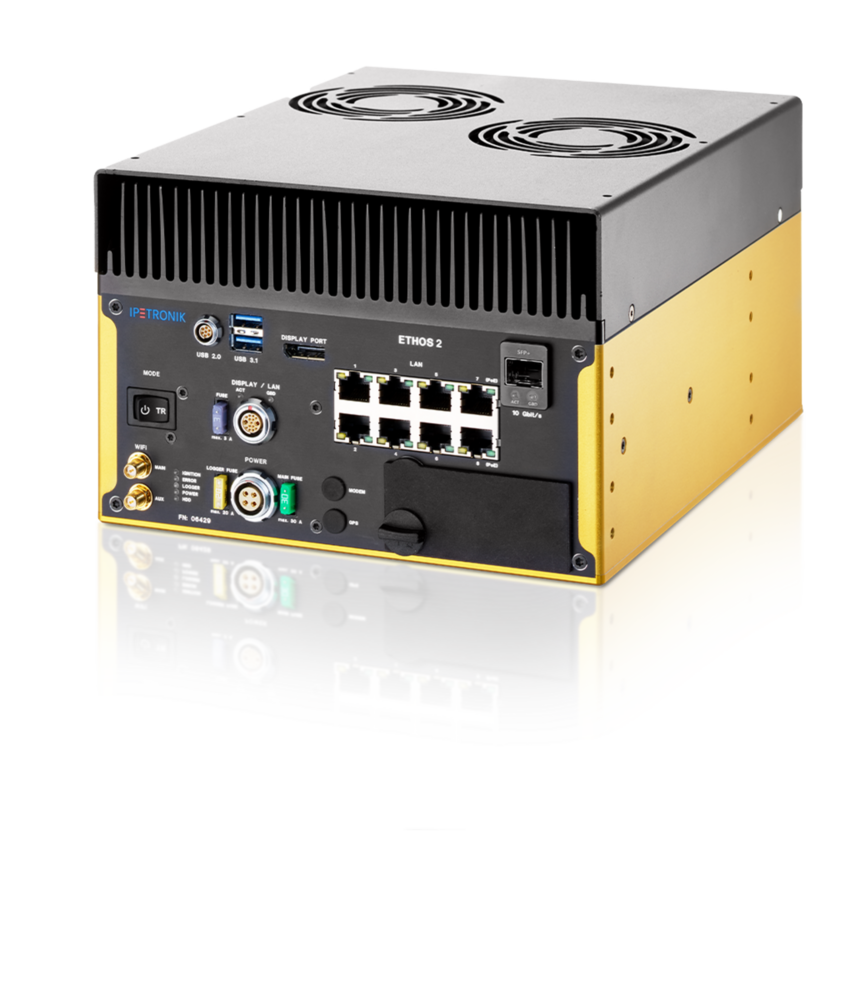

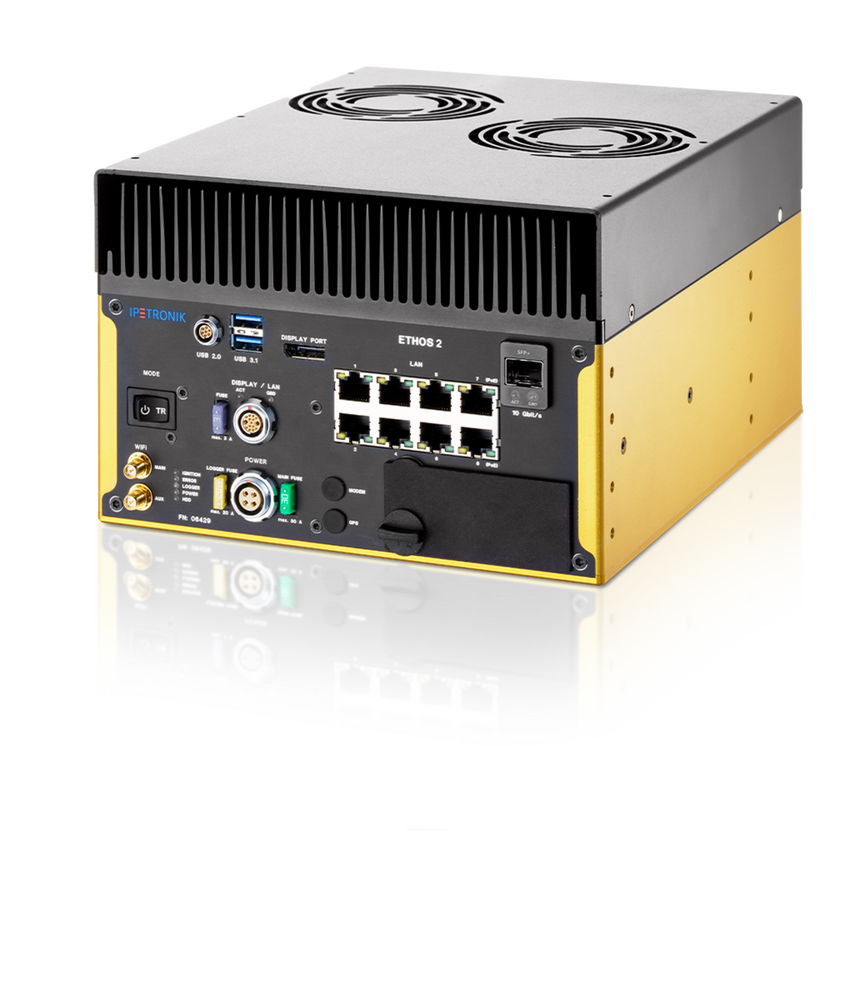

High performance data logger for automotive ethernet networks
New
Maximum CPU Power: Performance Index of 11.572
A real powerhouse – thanks to its Intel i7-9850HE processor, the ETHOS 2 has a performance index of 11.572. The continuously increasing measurement requirements for CAN FD, LIN and Ethernet networks can now be carried out quickly and effectively. Two hotplug slots for removable storage drives of up to 2 TB guarantee maximum write speed and data security at the same time.
Special Features
- high performance INTEL i7-9850HE plattform
- Developed for validation of large vehicle network architectures
- 28 x CAN FD, 8 x 1 GbE, 8 x LIN, 2 x FlexRay
- Up to 960 GB internal storage
- 2 slots for removable storage drives (hotplug up to 2 TB)
- Data ingest to company network via ingest station
- Multiple video channels for USB and IP cameras
- Wake on CAN, LIN, FlexRay (WoC, WoL, WoFR)
- Configuration via dataLog PlugIn
Technical Data
| Interfaces | |
|---|---|
| CAN HS (ISO 11898-2) | Yes |
| CAN FD | 28 |
| LIN (1.3 & 2.0) | 8 |
| ETH (1 GbE) | 8 (RJ45) / 2 (Feature Connector) |
| SFP+ (10 GbE) | 1 |
| FlexRay | 2 |
| Analog input | 8 |
| Digital I/O | 8/8 |
| Audio input / output | CAN |
| Ethernet interface to PC | Ethernet (1GBit) |
| USB 2.0 ports | 2 |
| USB 3.0 ports | 2 (USB 3.2 Gen1) |
| Lemo, 9-pin for M-CAN modules | Yes |
| Driver display system | openABK |
| Interface option 1 | 28 x CAN FD, 8 x 1 GbE, 8x LIN, 2 x FlexRay |
| Extender boxes | Via Satellite Interfaces |
| Device | |
| Operating system | Linux (64 bit) |
| Processor | Intel i7-9850HE |
| RAM memory | 16 GB |
| Inputs | 28 x CAN FD, 8 x 1 GbE, 8 x LIN, 2 x FlexRay, 8 x DIO, 8 x analog inputs |
| Performance Index | 11572 |
| Data Transmission | WiFi |
| Data logger software | dataLog |
| Storage medium | m2.SATA |
| Storage capacity | Internal storage: 32/256/480 GB; removable storage drive DXB: 2 x 960 GB |
| Voltage supply | 7 … 36 VDC |
| Supply voltage thresholds | On 7 ±0.3 VDC / Off 7 ±0.3 VDC |
| Power consumption, typical | 90 W |
| Working temperature range | -40 … 176 °F (-40 … 80 °C) |
| Storage temperature range | -45 … 90 °C (-49 … 194 °F) |
| IP-Code | IP 40 (ISO 20653 - 2013) |
| Relative humidity | 5 ... 95 % |
| Dimensions | B206 mm x H137 mm x T300 mm (8.11 in x 5.36 in x 11.81 in) |
| Protocols and traffic | |
| CCP / XCP on CAN | Yes |
| J1939 | Yes |
| OBD | Yes |
| WWH-OBD | No |
| KWP on CAN | Yes |
| UDS / ODX / PDX | Yes |
| XCP on ETH | Yes |
| FlexRay / XCP on FlexRay | Yes |
| openABK | Yes |
| SOME IP | Yes |
| FlexRay-Traffic | Yes |
| CAN-Traffic | Yes |
| LIN-Traffic | Yes |
| ETH-Traffic | Yes |
| CAN-send | Yes |
| Software functions | |
| Configuration software | dataLog PlugIn |
| No Message Lost (NML) | Yes |
| Wake on CAN (WoC) | Yes |
| Wake on LIN (WoL) | Yes |
| Wake on FlexRay (WoFR) | Yes |
| On board scripting | Yes |
| On board math & logic operations | Yes |
| File formats for data storage | ZIP, BLF, AVI, WAV, MDF4.x, ASC, PCAP, PCAPNG (dataLog) |
| Wireless communication | |
| WiFi | 2.4 GHz / 5 GHz (WiFi 802.11 a/b/g/n/ac) |
| IPEcloud / FTP-Server | Yes |
| Video | |
| IP-camera (Real Time Streaming Protocol) | AXIS, BASLER, LINKSYS, etc… / MJPEG stream |
| USB Video Class (UVC) | All cameras with MJPEG format |
| Accessories | |
| System cable | 111540, 666-519, 620-560 M-CAN cable |
| Input cable | 666-517, 666-518, IPE-ANT-004 |
Fit for the Most Challenging Automotive Applications
Developed to validate large, complex vehicle electrical system architectures, ETHOS 2 meets the constantly growing requirements of vehicle development. With its 28x CAN FD inputs, 8x 1 GB Ethernet interfaces, an SFP+ interface, as well as 8x LIN and 2x FlexRay inputs, the data logger is particularly suited for the validation of large vehicle network architectures during fleet testing and test drives. This makes it a powerful mobile development and validation tool for vehicle network analysis and challenging ADAS applications.
Highly Efficient Integral System
The reliable and secure measurement systems offer solutions for all kinds of applications, including ADAS and e-mobility. The ETHOS 2 user interface has been tested and optimized for years to fulfill all future measurement tasks. Combine the data logger with the data exchange station, and your data can be transferred to the local network infrastructure in no time at all. The fast data transfer keeps the availability of development vehicles high and their down time low during expensive tests and gives the development team direct access to the measurement data for quick and efficient analyses.
ETHOS 2 - Versatility at Its Best
- Control unit access via standardized vehicle bus protocols
- Simultaneous recording of signal-based information and traffic data
- Camera and sensor data recording
- Online calculations and postprocessing
- Measurement data synchronization via all inputs
- Measurement data postprocessing and analysis with the IPETRONIK software
Upgrade for existing ETHOS customers
Do you already own an ETHOS? Starting from now, you will have the opportunity to send in your current logger and have it upgraded to ETHOS 2. Our sales team will be happy to answer any further questions you may have.
