ARCOS 2 evo
Scalable data logger for fleet testing and experimental validation
New

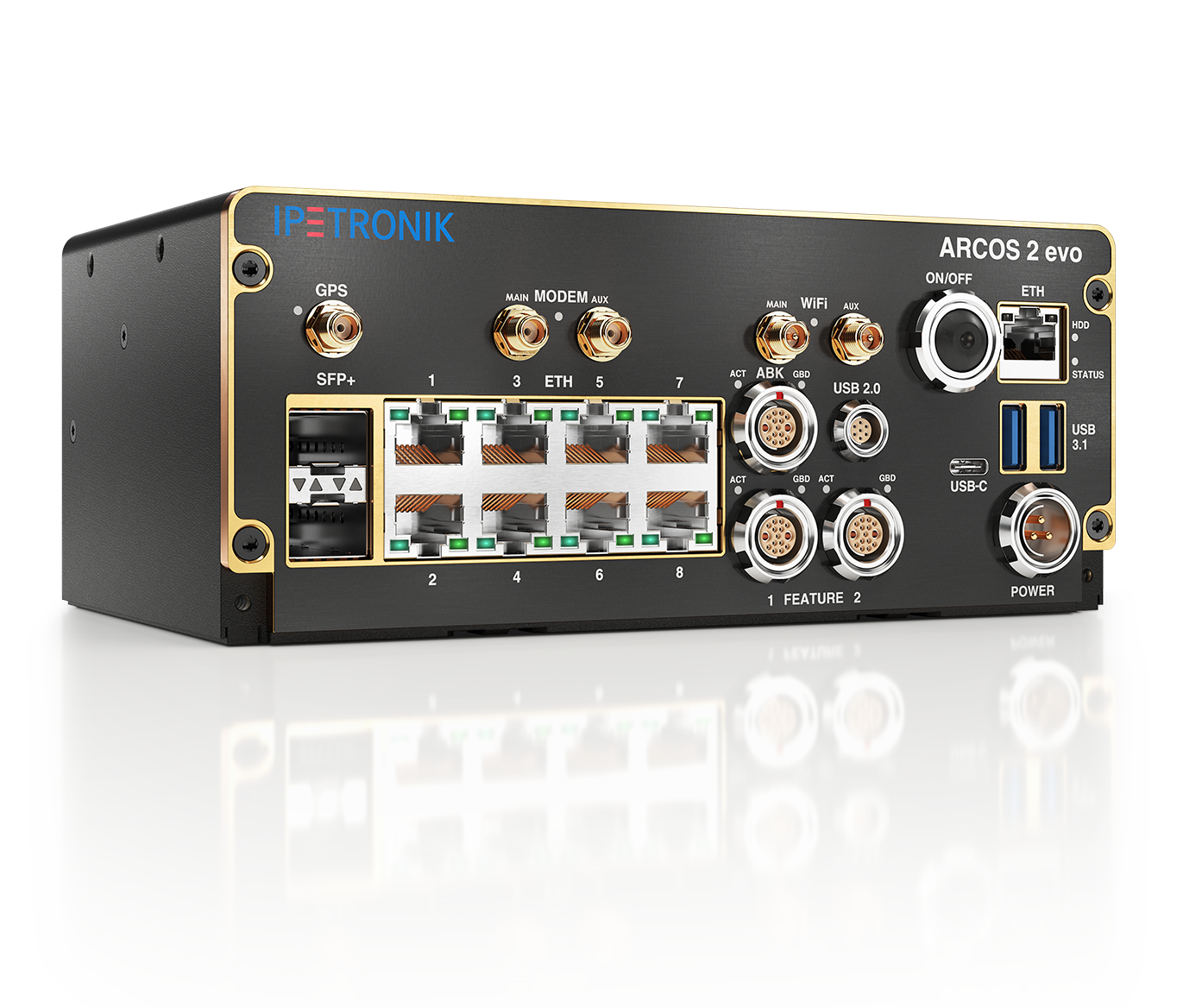

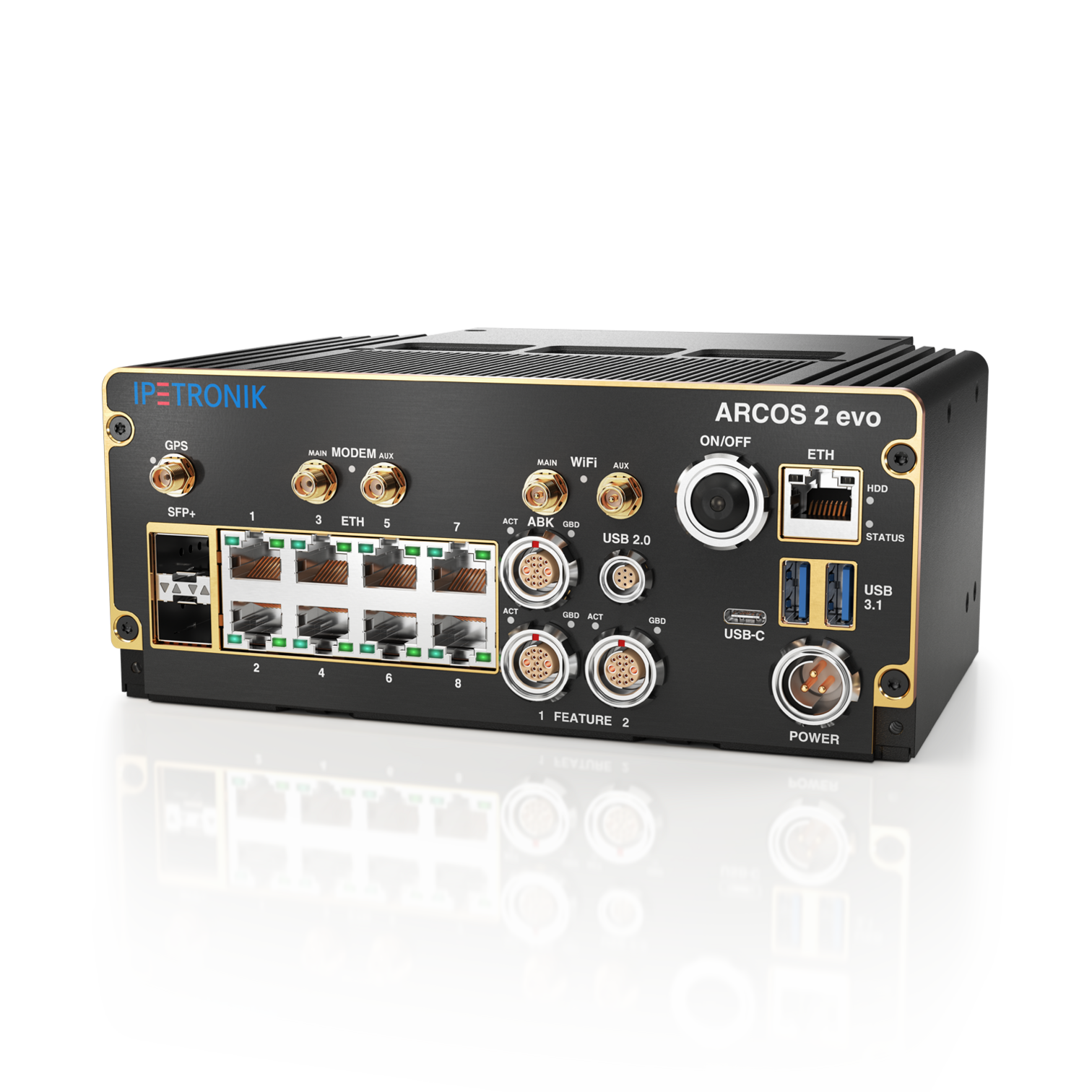

ARCOS 2 evo – Well-proven modularity, higher write speed
The ARCOS 2 evo is the next generation of the well-proven ARCOS 2 logger with an even higher write speed of 6 Gbit/s. Thanks to its various and scalable interfaces as well as the optional IPE DXD removable storage, it is our most modular logger. The ARCOS 2 evo provides maximum reliability, even under extreme conditions, which makes it ideal for vehicle network management, fleet testing, or driving assistance system development.
Special Features
- 2 x SFP+ 10 GbE
- 9 x 1 GbE
- Flexible scaling CAN, LIN, FlexRay
- 4G modem, WiFi, and GPS receiver for applications all over the world
- Supports USB and IP cameras
- Wake on Bus (CAN, LIN, FlexRay)
- Quickstart, No Message Lost (NML)
- Available with the logger software dataLog or IPEmotionRT (Full software support from IPEmotion RT 2026 R1 and dataLog 2025.10 onwards)
Technical Data
| Interfaces | |
|---|---|
| CAN HS (ISO 11898-2) | Yes |
| CAN FD | Yes |
| LIN (1.3 & 2.0) | Yes |
| ETH (100 Mbit) | Yes |
| ETH (1 GbE) | Yes |
| SFP+ (10 GbE) | Yes |
| FlexRay | Yes |
| Analog input | No |
| Digital I/O | No |
| Audio input / output | USB-Microphone, CAN-Microphone, iMICusb |
| Ethernet interface to PC | Ethernet (1GBit) |
| USB 2.0 ports | 2 |
| USB 3.0 ports | 3 x USB (3.1) |
| Lemo, 9-pin for M-CAN modules | Via PM module |
| Driver display system | openABK (dataLog), DRIVEview (IPEmotion RT), IPEmotion ME |
| Interface option 1 | Modular 2 … n CAN FD |
| Interface option 2 | Modular 2 … n LIN |
| Interface option 3 | Modular 1 … n ETH |
| Interface option 4 | Modular 1 … n FlexRay |
| Extender boxes | FlexRay, LIN, CAN FD Satellite Interface, CLFD Box |
| Device | |
| Operating system | Linux (64 bit) |
| Processor | Intel i7-9850HL |
| RAM memory | 32 GB |
| Inputs | 8 x Ethernet (1 GBit), 2 x SFP+ (10 GBit), 1 x ABK socket (1 GBit), 2 x feature socket (1 GBit) |
| Performance Index | 9112 |
| Data throughput | up to 6 GBit/s |
| Data Transmission | Modular: WiFi, Modem, GNSS |
| Data logger software | dataLog, IPEmotion RT |
| Storage medium | NVMe-SSD |
| Storage capacity | Internal storage: 480 GB + 960 GB; extern ARCOS DXB: 2 x 960 GB |
| Voltage supply | Boot: 7,5 V … 54 VDC, Operation: 6,5 V ... 54 VDC |
| Supply voltage thresholds | On 7.5 VDC (±0.3) / Off 7.5 VDC (±0.3) |
| Power consumption, typical | 75 W |
| Working temperature range | -40 … 176 °F (-40 … 80 °C) |
| Storage temperature range | -40 … 176 °F (-40 … 80 °C) |
| IP-Code | IP 40 (ISO 20653 - 2013) |
| Relative humidity | 5 ... 95 % |
| Dimensions | B184 mm x H80 mm x T170 mm (7.24 in x 3.15 in x 6.69 in) |
| Protocols and traffic | |
| CCP / XCP on CAN | Yes |
| J1939 | Yes (IPEmotionRT) |
| OBD | Yes |
| WWH-OBD | Yes (IPEmotionRT) |
| KWP on CAN | Yes |
| UDS / ODX / PDX | Yes |
| XCP on ETH | Yes |
| FlexRay / XCP on FlexRay | Yes |
| openABK | Yes (dataLog) |
| SOME IP | Yes |
| FlexRay-Traffic | Yes |
| CAN-Traffic | Yes |
| LIN-Traffic | Yes |
| ETH-Traffic | Yes |
| ASAM CMP | Yes, including PLP, TECMP |
| DLT | Yes |
| CAN-send | Yes |
| Software functions | |
| Configuration software | IPEmotion, IPEmotion RT.UI |
| No Message Lost (NML) | Yes |
| Wake on CAN (WoC) | Yes |
| Wake on LIN (WoL) | Yes |
| Wake on FlexRay (WoFR) | Yes |
| On board scripting | Yes |
| On board math & logic operations | Yes |
| File formats for data storage | ZIP, BLF, AVI, WAV, MDF4.x, ASC, PCAP, PCAPNG, DLT |
| Wireless communication | |
| GNSS (Global Navigation Satellite System) | GPS+BeiDou / GPS / GLONASS / BeiDou / Galileo |
| WiFi | 2.4 GHz / 5 GHz (WiFi 802.11 a/b/g/n/ac) |
| Modem | 3G (UMTS), 4G (LTE) |
| IPEcloud / FTP-Server | Yes |
| Video | |
| IP-camera (Real Time Streaming Protocol) | AXIS, BASLER, LINKSYS, etc… / MJPEG stream |
| USB Video Class (UVC) | All cameras with MJPEG format |
| Accessories | |
| System cable | 100658, 102537, 112361 |
| Input cable | 111010 ABK systemcable, 114446 ABK - ETH cable, 666-531.xxx Feature / ABK cable satellite, 101390 USB-Lemo cable |
| Antenna | 113734, 114630 |
Accessories
Guaranteed Flexibility: Maximum Modularity and Expandability
The ARCOS 2 evo expansion frame has been developed for the requirements of modern automotive testing. Crucial vehicle and test bench interfaces, such as CAN, LIN, FlexRay, and Ethernet (ETH), can be integrated flexibly if needed.
Thanks to its systematically modular concept, the ARCOS 2 evo accurately meets all project- and vehicle-specific requirements – from prototype to series validation. This upgradability ensures that future communication standards and interfaces can be integrated without changing the system.
This way, the ARCOS 2 evo protects your investment, making sure that you can use your measurement system for several development cycles.

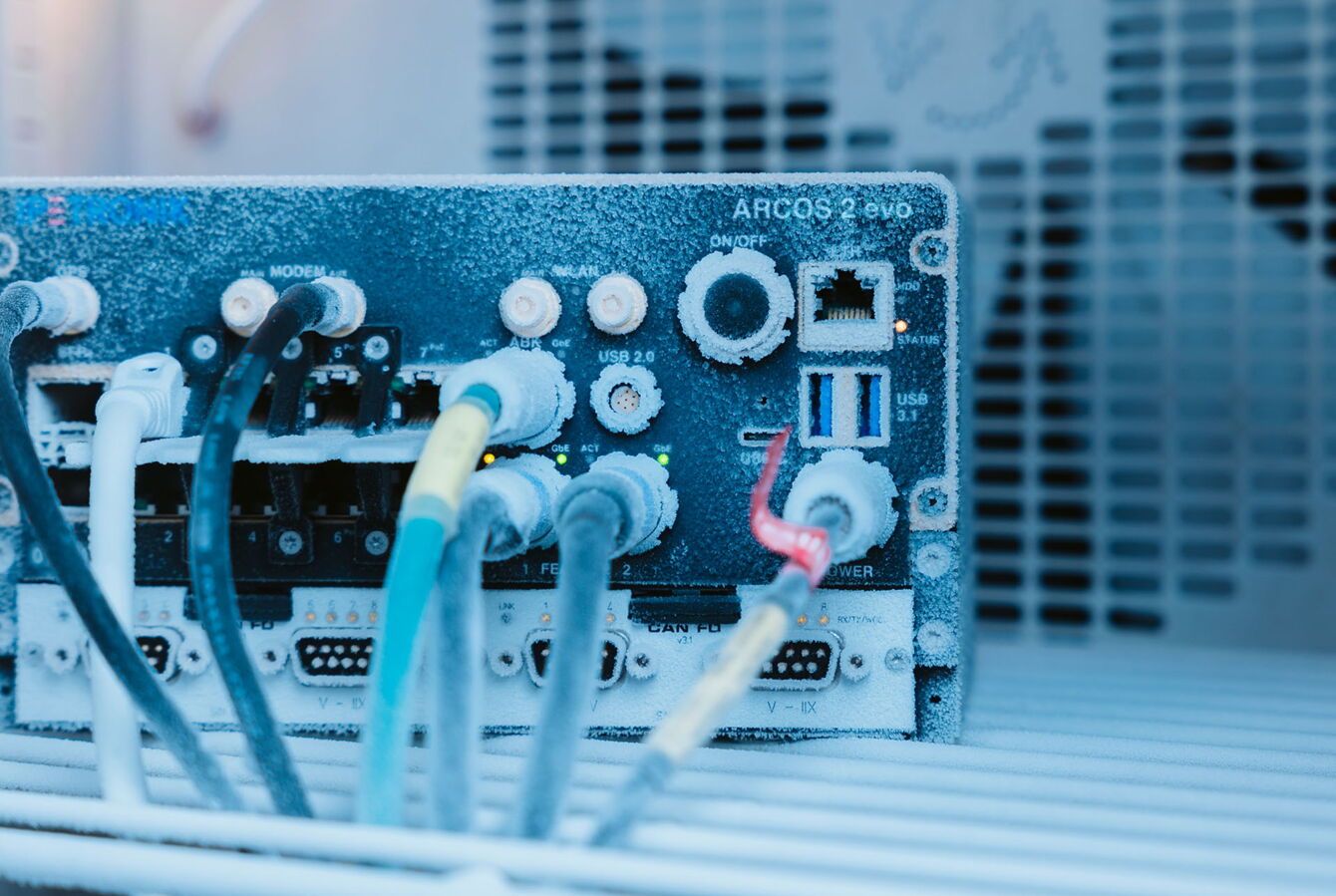

Highly Reliable Even Under Extreme Conditions
The ARCOS 2 evo has been designed for the continuous operation in winter as well as summer testing. With its validated and proven temperature range of -40 °C to +80 °C, the logger is well-equipped for measurement tasks under extreme climatic conditions – from cold climate testing in Arctic regions to hot climate testing in the desert.
The large supply voltage range of 6.5 V to 54 V DC supports a variety of vehicle networks and test set-ups, within the vehicle as well as on the test bench, and reliably covers voltage fluctuations, cold start conditions, or changing supply sources.
Our well-tried measurement platform helps OEMs and tier 1 suppliers validate their systems under real-life environment and operating conditions.
Modular, Highly Compact, Powerful
You would like to learn more about ARCOS 2 evo?
Our experts will be happy to advise you personally.
Discover the key features of the ARCOS 2 evo:
This third-party content will not be displayed due to your lack of consent for third-party content.
Areas of application
- Testing and validation of the complete vehicle
- Analysis of the vehicle network within the vehicle
- Real-time error diagnosis and bus monitoring
- Development and prototyping of new vehicle features
- Data acquisition for (semi-)autonomous driving functions
- Analysis and optimization of vehicle components in real-life operating conditions
High data throughput for demanding applications
- Up to 6 Gbit/s data throughput for a secure recording
- Validated NVMe SSDs for a stable and lossless storage
- Designed for full-trace logging as well as signal-based measurements
Storage capacity for long test cycles
- Equipped with up to 1 TB internal storage
- Expandable with up to 2x 1 TB IPE DXD exchangeable hard drive
- Data exchange station (DXS) with 12 DXD slots for fleet operation
- 2 x 10 GbE for server upload
Strong processor performance
- Powerful Intel i7 processor
- 32 GB RAM
- Performance index 9200
- Developed for the latest vehicle architectures
