ARCOS 2 – Data logger for the requirements of the future

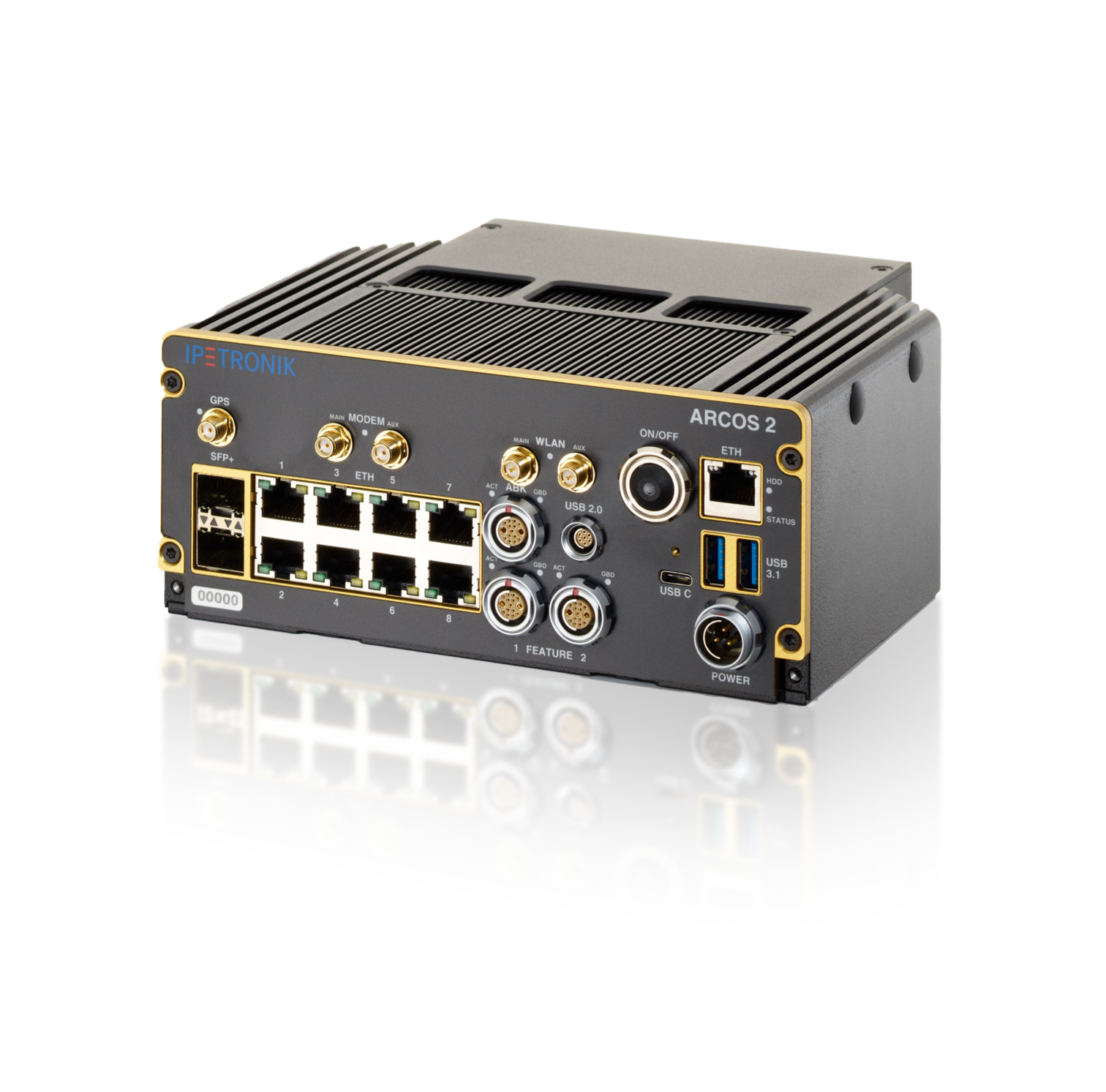

Modular, highly compact, and powerful: The ARCOS 2 is IPETRONIK’s new state-of-the-art Automotive-Ethernet-ready1 logger! Developed for high-end fleet management and the validation of large vehicle networks, it is especially well-suited for complex ADAS tests with video recording. The device has a powerful i7 processor as well as various interfaces and supports dataLog and IPEmotion RT.

Special Features

  • 2 x SFP+ 10 GbE
  • 8 x 1 GbE
  • Flexible scaling CAN, LIN, FlexRay, ETH inputs
  • 4G modem, WiFi and GPS receiver optionally equipable
  • Multiple video channels for USB and IP cameras
  • Wake on CAN, LIN, FlexRay (WoC, WoL, WoFR)
  • Quickstart, No Message Lost (NML), Wake on CAN (WoC)
  • Designed for applications in harsh environments
  • Support for IPEmotionRT and dataLog

Datasheet

Performance Index
Describes the performance of the used processor

Technical Data

Inputs 8 x Ethernet (1 Gbit), 2 x SFP+ (10 Gbit), 1 x ABK socket (1 Gbit), 2 x feature socket (1 Gbit)
Performance Index 9112
Data Transmission Modular: WiFi, Modem, GNSS
Voltage supply Boot: 7,5 V … 54 VDC, Operation: 6,5 V ... 54 VDC
Working temperature range -40 … 80 °C (-40 … 176 °F)
IP-Code IP 40 (ISO 20653 - 2013)

ARCOS 2 – Technical data

Download as PDF

Interfaces
CAN HS (ISO 11898-2) Yes
CAN FD Yes
LIN (1.3 & 2.0) Yes
ETH (100 Mbit) Yes
ETH (1 GbE) Yes
SFP+ (10 GbE) Yes
FlexRay Yes
Analog input No
Digital I/O No
Audio input / output USB-Microphone, CAN-Microphone, iMICusb
Ethernet interface to PC Ethernet (1Gbit), 2 x Ethernet (1Gbit)
USB 2.0 ports 2
USB 3.0 ports 3 x USB (3.1)
Lemo, 9-pin for M-CAN modules Via PM module
Driver display system DRIVEview (IPEmotion RT), openABK (dataLog), IPEmotion ME
Interface option 1 Modular 2 … n CAN FD
Interface option 2 Modular 2 … n LIN
Interface option 3 Modular 1 … n ETH
Interface option 4 Modular 1 … n FlexRay
Extender boxes FlexRay, LIN, CAN FD Satellite Interface, CLFD Box
Device
Operating system Linux (64 bit)
Processor Intel i7-9850HL
RAM memory 32 GB
Inputs 8 x Ethernet (1 Gbit), 2 x SFP+ (10 Gbit), 1 x ABK socket (1 Gbit), 2 x feature socket (1 Gbit)
Performance Index 9112
Data Transmission Modular: WiFi, Modem, GNSS
Data logger software dataLog, IPEmotion RT
Storage medium m2.SATA
Storage capacity Interner Speicher: 256/480/960 GB; extern ARCOS DXB: 2 x 960 GB
Voltage supply Boot: 7,5 V … 54 VDC, Operation: 6,5 V ... 54 VDC
Supply voltage thresholds On 7.5 VDC (±0.3) / Off 7.5 VDC (±0.3)
Power consumption, typical 75 W
Working temperature range -40 … 80 °C (-40 … 176 °F)
Storage temperature range -40 … 80 °C (-40 … 176 °F)
IP-Code IP 40 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Dimensions B184 mm x H80 mm x T170 mm (7.24 in x 3.15 in x 6.69 in)
Protocols and traffic
CCP / XCP on CAN Yes
J1939 Yes (IPEmotionRT)
OBD Yes
WWH-OBD Yes (IPEmotionRT)
KWP on CAN Yes
UDS / ODX / PDX Yes
XCP on ETH Yes
FlexRay / XCP on FlexRay Yes
openABK Yes (dataLog)
SOME IP Yes
FlexRay-Traffic Yes
CAN-Traffic Yes
LIN-Traffic Yes
ETH-Traffic Yes
CAN-send Yes
Software functions
Configuration software IPEmotion RT.UI, IPEmotion
No Message Lost (NML) Yes
Wake on CAN (WoC) Yes
Wake on LIN (WoL) Yes
Wake on FlexRay (WoFR) Yes
On board scripting Yes
On board math & logic operations Yes
File formats for data storage ZIPRT, BLF, AVI, WAV, MDF4.0, MDF4.1, ASC, ATFX, PCAP (depending on operating system)
Wireless communication
GNSS (Global Navigation Satellite System) GPS+BeiDou / GPS / GLONASS / BeiDou / Galileo
WiFi 2.4 GHz / 5 GHz (WiFi 802.11 a/b/g/n/ac)
Modem 4G (LTE), 3G (UMTS)
IPEcloud / FTP-Server Yes
Video
IP-camera (Real Time Streaming Protocol) AXIS, BASLER, LINKSYS, etc… / MJPEG stream
USB Video Class (UVC) All cameras with MJPEG format
Accessories
System cable 100658, 102537, 112361
Input cable 114446 ABK - ETH cable, 666-531.xxx Feature / ABK cable satellite, 101390 USB-Lemo cable, 111010 ABK systemcable
Antenna 113734, 114630

Accessories

System cable

Modular, Highly Compact, Powerful

Data logger for fleet testing and experimental validation

Enquire now!

Strengths at a glance

  • Highly modular and easily extendable
  • Ultimate processor performance
  • Ready for the most challenging tasks
  • Fast processing of large amounts of data
  • The software to take it to the next level
  • Extensive support of external components

Ultimate Processor Performance

  • Powerful i7 processor
  • 5 times the CPU power - performance index of 8000
  • Designed for state-of-the-art vehicle architectures

Fast Processing of large Amounts of Data

  • Fast data transfer to the local network infrastructure via multifunctional data exchange station IPE DXS
  • Ethernet ports: 9x RJ45 (1 Gbit), 2x SFP+ (10 Gbit)
  • USB ports: 1x USB-C, 2x USB 3.1

Go to IPE DXS
