IPEcomp R744

Validation test bench for EKMV and MKMV

IPEcomp R744

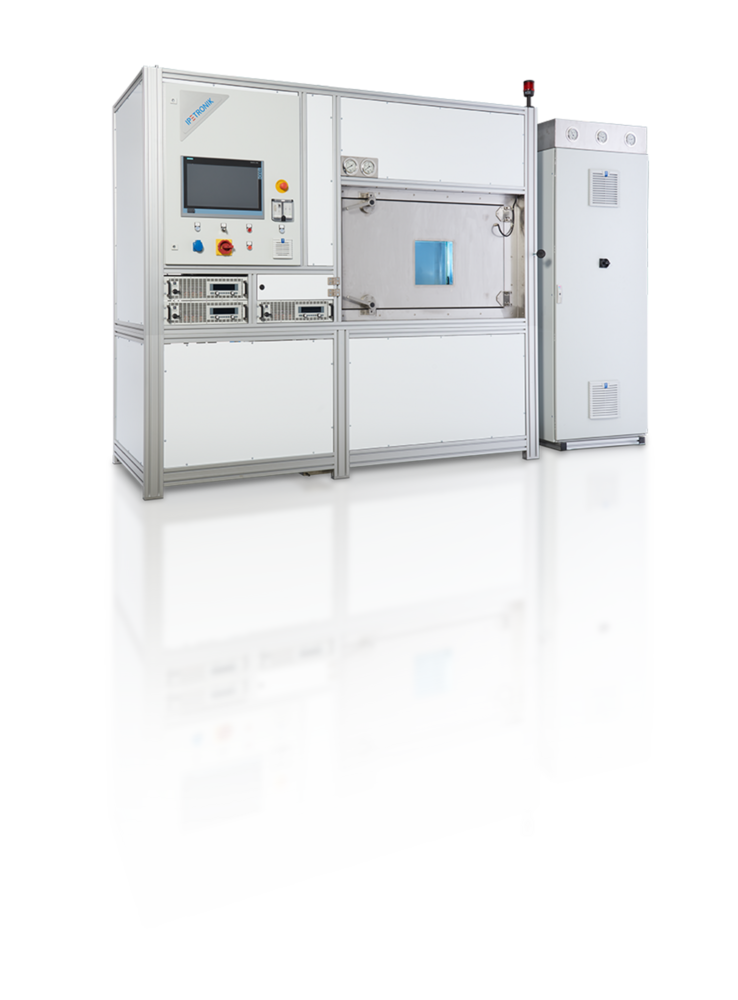

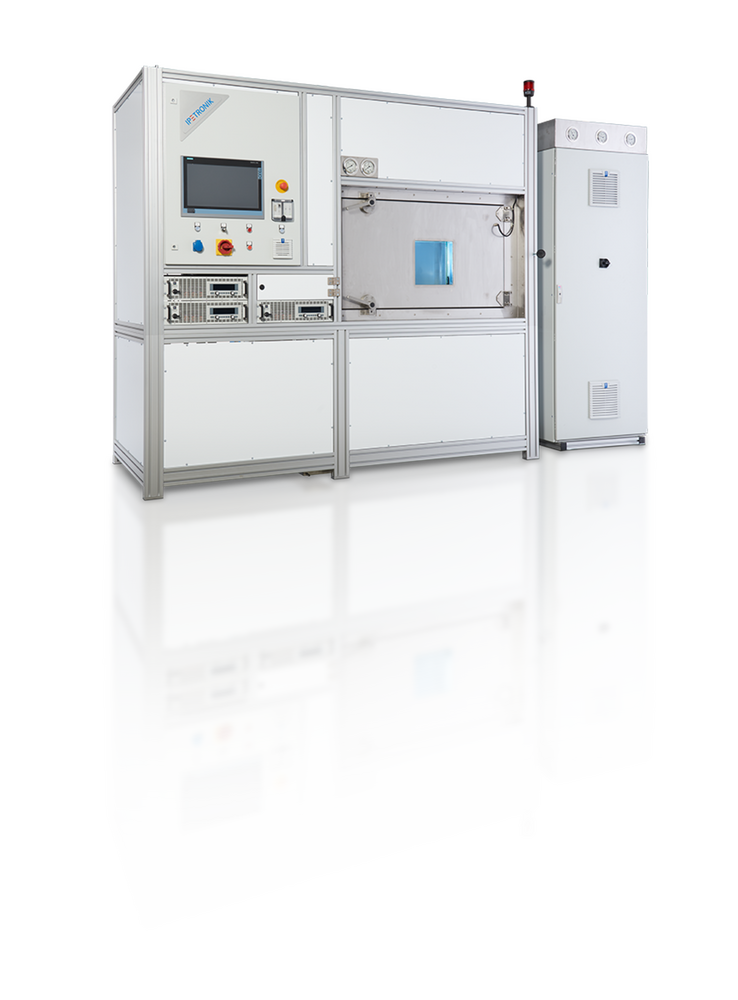

On the IPEcomp validation test bench for automotive refrigerant compressors, both electrically (eKMV) and mechanically (mKMV) driven DUTs can be subjected to performance and endurance tests. By mounting the test item on a mechanically decoupled, seismic mass, NVH tests on the test item are also possible.

  • Test von mechanischen und elektrischen Kompressoren
  • Simulation of operating conditions in the HVAC cycle
  • VDA complied mounting bracket with decoupled seismic mass
  • Manual and automated test operation
  • Inline measurements of oil curculation ratio (OCR)
  • Endurance tests, FAT (Factory Acceptance Tests), etc.
  • Supports NVH tests and gas pulsation measurements
  • Easy compressor exchange by automatic coolant evacuation
  • Intuitive test bench control via IPEmotion software

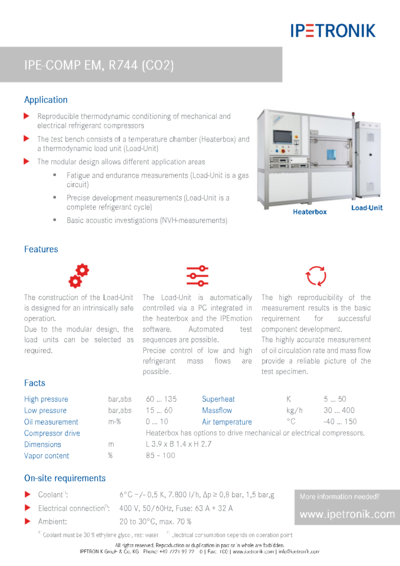

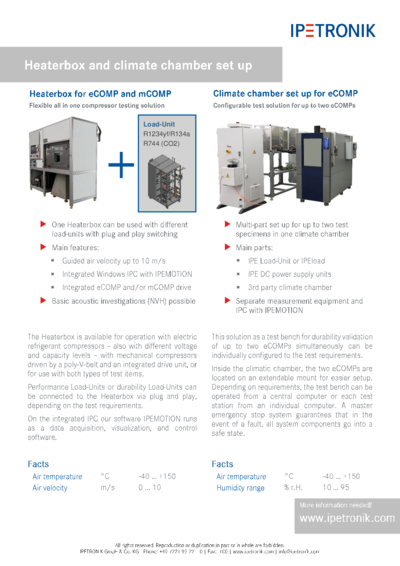

Enquire now Datasheet Add to notelist

Features at a Glance

Supported Refrigerants R744 (CO2)
Service Connections HP / LP (7/16" UNF)
Dimensions B3800 mm x H2700 mm x T1600 mm (149.61 in x 106.30 in x 63.00 in)
Power Supply 2 x 63 A, 400 VAC

IPEcomp R744 – Technical data

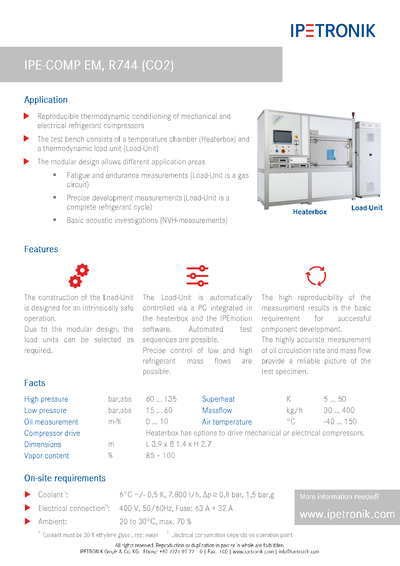

Download as PDF

Device
Supported Refrigerants R744 (CO2)
Service Connections HP / LP (7/16" UNF)
Dimensions B3800 mm x H2700 mm x T1600 mm (149.61 in x 106.30 in x 63.00 in)
Number of pressure gauges PLC-controlled / touch panel, 2
HP gauge - hot gas pressure 0 ... 160 bar
LP gauge - suction pressure 0 ... 100 bar
Working temperature range 20 ... 50 °C (50 ... 104 °F) max. 70 % r.H.
Power Supply 2 x 63 A, 400 VAC
Supply
Refrigerant amount test circuit 1.0 kg (CO2)
Supported coolants Brine (70 % water / 30 % glycol)
Coolant temperature inlet 6 °C
Coolant mass flow 2500 kg/h
Coolant differential pressure Δp > 0.8 bar (p > 1.5 bar)
Control ranges
Discharge pressure range 65 ... 140 bar
Suction pressure range 20 ... 60 bar
Superheating - suction line 5 ... 40 K
Refrigerant mass flow 30 ... 300 kg/h
Ambient temperature of the compressor -30 ... 120 °C (-22 ... 248 °F) / optionally -40 ... 150 °C
Air velocity in chamber 0 ... 8 m/s (VDA 6 m/s standard)
Torque measurement range 0 ... 50 Nm
Mechanical compressor
Magnetic clutch on/off, 12 VDC & 24 VDC
Control ECV 0 ... 1000 mA
Compressor speed 700 ... 10000 rpm
Electric compressor
Control e.g. LIN / CAN IPEmotion
