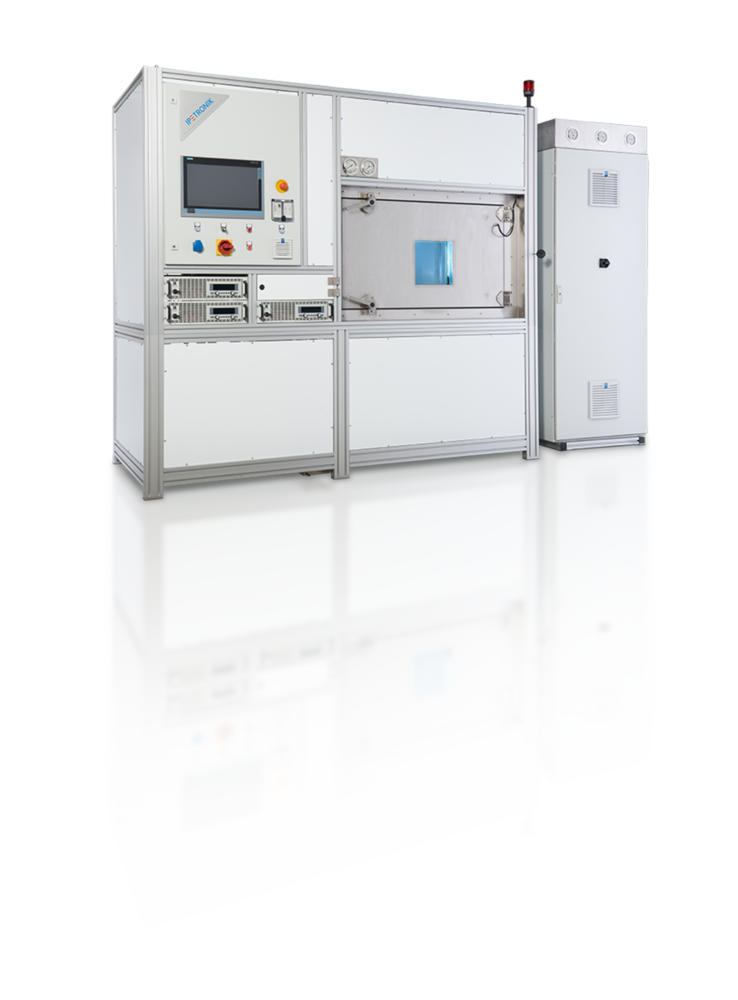

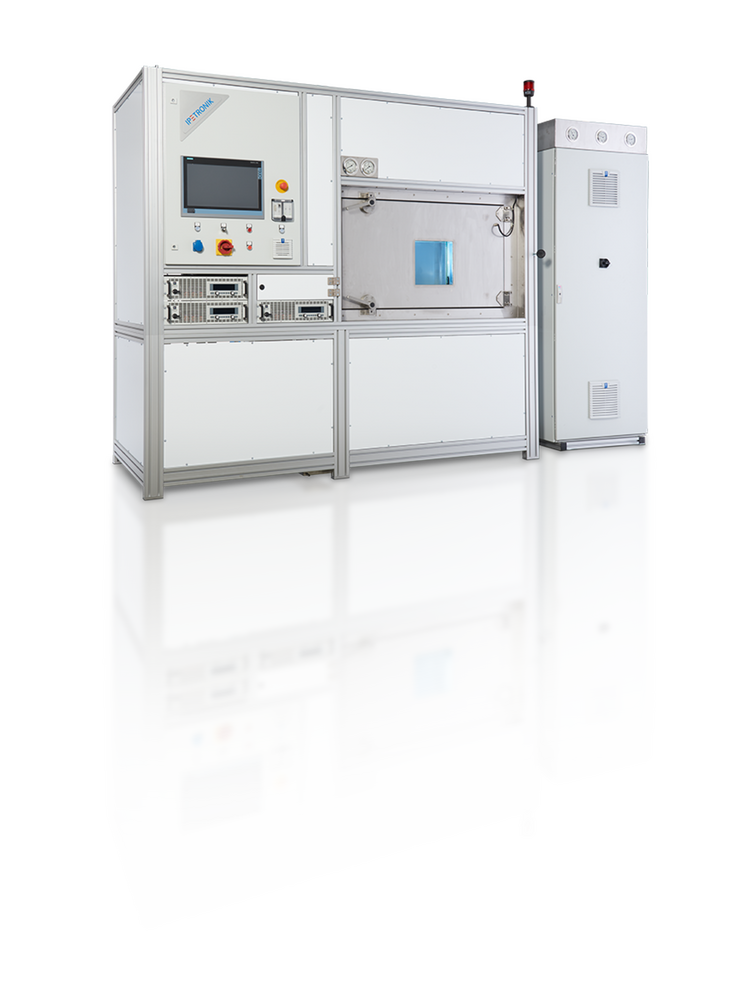

IPEcomp R134a

Validation test bench for electric and mechanical refrigerant compressors

IPEcomp R134a

With the IPEcomp validation test bench for automotive refrigerant compressors, both electric and mechanical refrigerant compressors can be tested for performance and endurance. By mounting the compressor on a mechanically decoupled seismic mass, NVH tests are possible as well.

  • Suitable for mechanical and electrical compressors
  • Simulation of operating conditions in the HVAC cycle
  • VDA complied mounting bracket with decoupled seismic mass
  • Manual and automated test operation
  • Inline measurements of oil curculation ratio (OCR)
  • Endurance tests , FAT (Factory Acceptance Tests), etc.
  • Supports NVH tests and gas pulsation measurements
  • Easy compressor exchange by automatic coolant evacuation
  • Intuitive test bench control via IPEmotion software

Enquire now

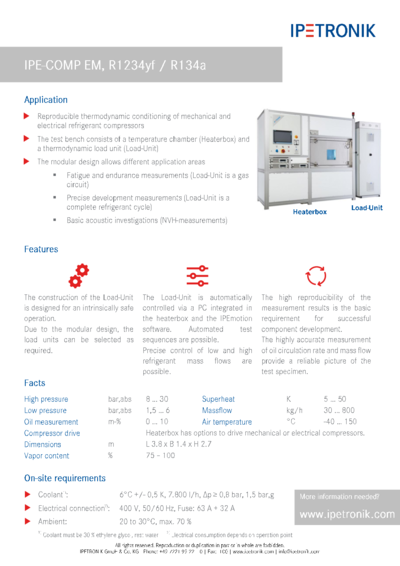

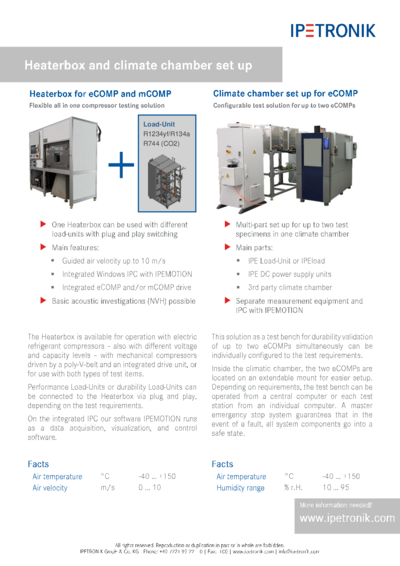

Features at a Glance

Supported Refrigerants R134a, R1234yf
Service Connections HP / LP (7/16" UNF)
Dimensions B3800 mm x H2700 mm x T1600 mm (149.61 in x 106.30 in x 63.00 in)
Power Supply 2 x 63 A, 400 VAC

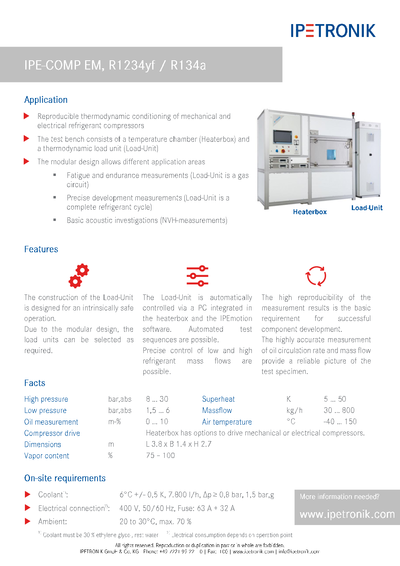

IPEcomp R134a – Technical data

Device
Supported Refrigerants R134a, R1234yf
Service Connections HP / LP (7/16" UNF)
Dimensions B3800 mm x H2700 mm x T1600 mm (149.61 in x 106.30 in x 63.00 in)
Number of pressure gauges PLC-controlled / touch panel, 2
HP gauge - hot gas pressure -1 ... 40 bar
LP gauge - suction pressure -1 ... 15 bar
Working temperature range 20 ... 40 °C (50 ... 104 °F) max. 70 % r.H.
Power Supply 2 x 63 A, 400 VAC
Supply
Refrigerant amount test circuit 1.0 kg (R134a)
Supported coolants Brine (70 % water / 30 % glycol)
Coolant temperature inlet 6 °C
Coolant mass flow 2500 kg/h
Coolant differential pressure Δp > 0.8 bar (p > 1.5 bar)
Control ranges
Discharge pressure range 8 ... 28 bar
Suction pressure range 1.5 ... 6 bar
Superheating - suction line 5 ... 40 K
Refrigerant mass flow 30 ... 300 kg/h
Ambient temperature of the compressor -30 ... 120 °C (-22 ... 248 °F) / optionally -40 ... 150 °C
Air velocity in chamber 0 ... 8 m/s (VDA 6 m/s standard)
Torque measurement range 0 ... 50 Nm
Mechanical compressor
Magnetic clutch on/off, 12 VDC & 24 VDC
Control ECV 0 ... 1000 mA
Compressor speed 700 ... 10000 rpm
Electric compressor
Control e.g. LIN / CAN IPEmotion
