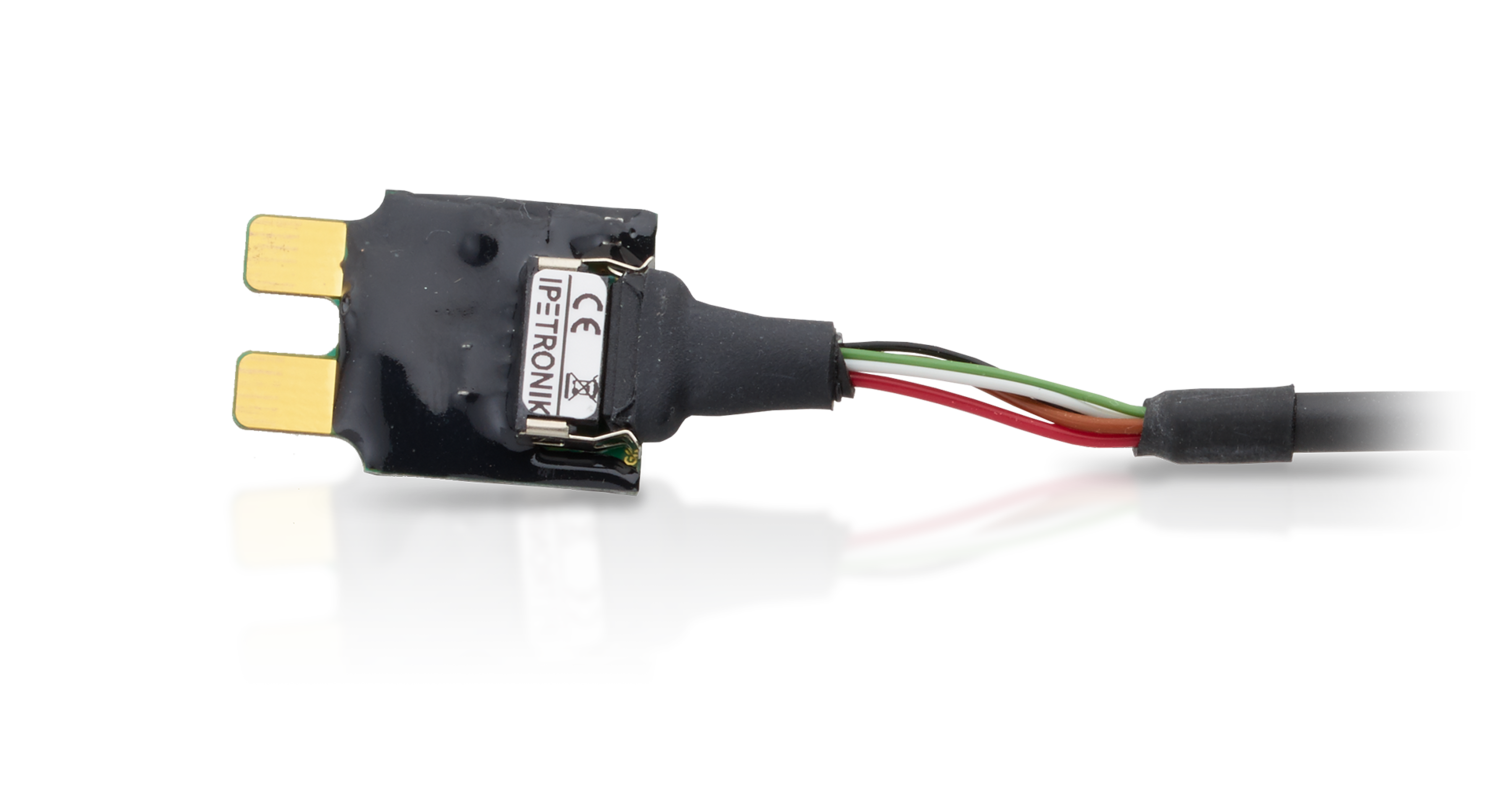

IPEshunt 1

Operating and quiescent current measurement via automotive fuse carrier

IPEshunt 1

Operating and quiescent current measurement via automotive fuse carrier
  • Mounting at automotive fuse carrier
  • Quiescent current up to 5 mA
  • Operating current up to 30 A
  • Standard output voltage 0 … 1 V, 0 … 0.1 V
  • Overload protected up to factor 1.5 of rated current
  • Direct connection to SENS modules

Enquire now Datasheet Add to notelist

Technical Data

Inputs 1
Voltage supply 6 … 15 VDC
Working temperature range -40 … 85 °C (-40 … 185 °F)

IPEshunt 1 – Technical data

Download as PDF

Input HV
* Safety instructions
IPEshunt
Measurement range ±5 mA / 1 / 5 / 10 / 30 A (depending on type)
Quiescent current ±5 mA ±0 ... 0.1 V │20 mV/mA
Operating current ±1 A ±0 ... 1.0 V | 1 V/A
Operating current ±5 A ±0 ... 1.0 V | 0.2 V/A
Operating current ±10 A ±0 ... 1.0 V | 0.1 V/A
Operating current ±30 A ±0 ... 1.0 V | 0.033 V/A
Fuse capability SMD safety fuse (up to type 10 A)
Offset deviation at ambient temperature 25 °C ±0.04 mV
Temperature effect on offset ±1.2 µV/K
Temperature effect on accuracy ±250 ppm/K
Overload Ensure ventilation, avoid thermal overheating, Max. 1.5 x I nominal (pulse duration max. 1s)
3 dB cut-off frequency 80 Hz (Version 30 A), 70 Hz (Version 10 A)
Channel current
Accuracy at ambient temperature 25 °C ±1 % of reading
Channel CNT
Number of inputs
Excitation
Sensorspeisung
Device
Inputs 1
Precisions
Voltage supply 6 … 15 VDC
Power consumption, typical < 4 mA
Working temperature range -40 … 85 °C (-40 … 185 °F)
Storage temperature range -55 … 125 °C (-67 … 257 °F)
Relative humidity 5 ... 95 %
Dimensions W20 mm x H24 mm x D6.5 mm (0.78 in x 0.94 in x 0.26 in)
Weight 3 g (0.11 oz)
Schutz gegen aggressive Flüssigkeiten
Electrical data
Status LED
Accessories
Input cable 600-102 SENS LEMO 1B6p cable IPESHUNT 1 / 2, 600-106 SENS FIPS 6p IPEshunt 1 / 2, 600-105 STG LEMO 1B7p cable IPESHUNT 1 / 2
