HV Thermocouple
HV sensors for M-THERMO2 HV modules
Special Features
- NiCr-Ni type K, classe 1

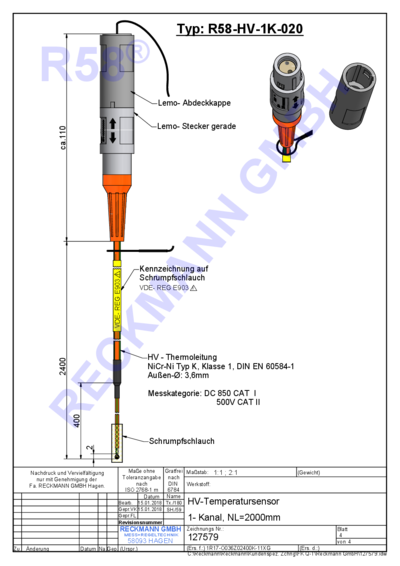

- 1 channel sensor (2-pole)

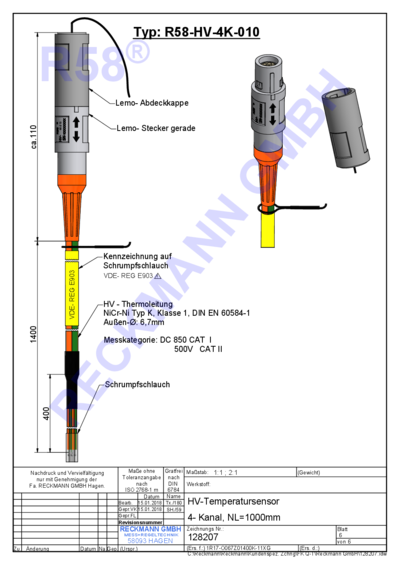

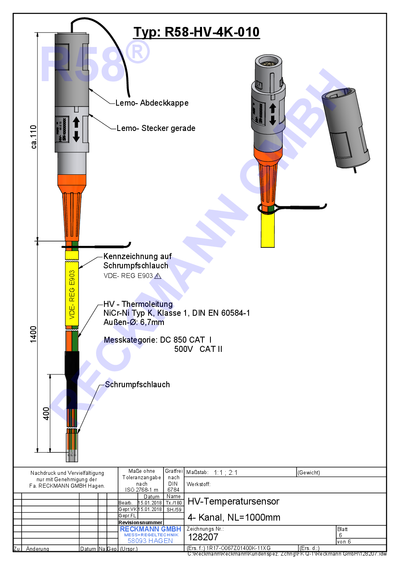

- 4 channel sensor (8-pole)
Technical Data
| Galvanic isolation | |
|---|---|
| Application according to CAT I | 850 VDC |
| Application according to CAT II | 500 VDC |
| Device | |
| Dimensions | 1-channel outer-Ø: 3.6 mm, 2 x 0.2 mm solid; 4-channel outer-Ø: 6.7 mm, 4 x 0.2 mm solid |
| Isolation material | Single FEP isolated, (+ green, - white) |
| Sensor tip | Heatshrink |
| Length | 1, 2, 3, 5 m |
| Plug | 2-pole: CFC.H02.SLK.C52Y1370, 4-pole: CFC.H04.SLK. |
