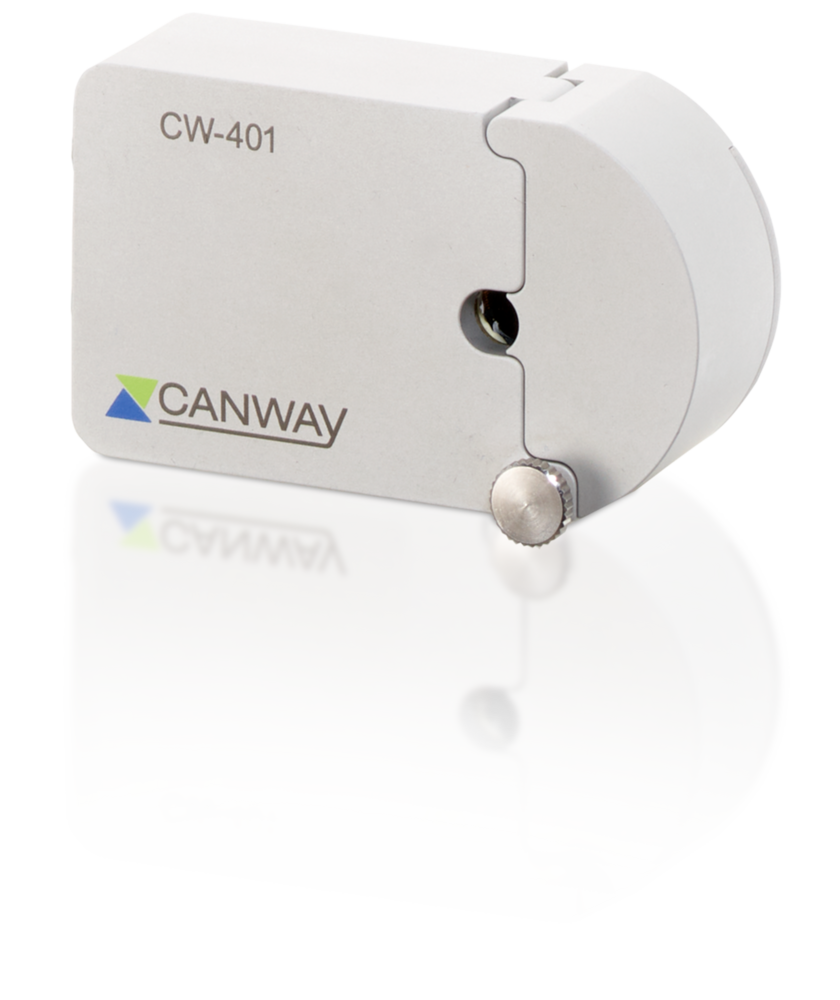

CANWAY-CW

Current clamp with CAN interface

CANWAY-CW

Current clamp with CAN interface
  • Contactless current measurement for DC current
  • Measurement ranges: ±10, 30, 50 A
  • Application according to CAT I (Maximum voltage 48 V)
  • Configuration with IPEmotion PlugIn CANWAY
  • Designed for engine compartment applications
  • Toolless module to module connection
  • Ruggedized and compact modules for harsh environments

Enquire now Datasheet Add to notelist

Technical Data

Accuracy 1 % (additionally ± 50 mA relative to range)
Channel sampling rates 1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 / 2000 Hz
Inputs 1
Voltage supply 9 … 30 VDC
Working temperature range -20 … 110 °C (-4 … 230 °F)
IP-Code IP 65 (ISO 20653 - 2013)

CANWAY-CW – Technical data

Download as PDF

Input HV
* Safety instructions
Channel current
Measurement range ±10/ 30/ 50 A
Accuracy 1 % (additionally ± 50 mA relative to range)
Resolution 1 mA
Special functions Averaging, Temperature compensation, remanence correction, Offset adjust, during measurement
General channel properties
Channel sampling rates 1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 / 2000 Hz
Aggregate sample rate 2 kHz
Channel CNT
Number of inputs
Excitation
Sensorspeisung
Device
Inputs 1
Precisions
Voltage supply 9 … 30 VDC
Power consumption, typical 0.5 W
Working temperature range -20 … 110 °C (-4 … 230 °F)
Storage temperature range -40 ...120°C (-40 ...248°F)
IP-Code IP 65 (ISO 20653 - 2013)
Dimensions W38 mm x H21.5 mm x D65 mm (1.50 in x 0.85 in x 2.56 in)
Weight 100 g (0.22 lb)
Configuration interface CAN high speed
Data transfer rate Software selectable up to 1 MBit/s (ISO11898-2)
Housing material Aluminium
Test cable diameter, max. 6.1 mm (0.24)
Output sockets 2x LEMO 0B,9-pol./P,30°
