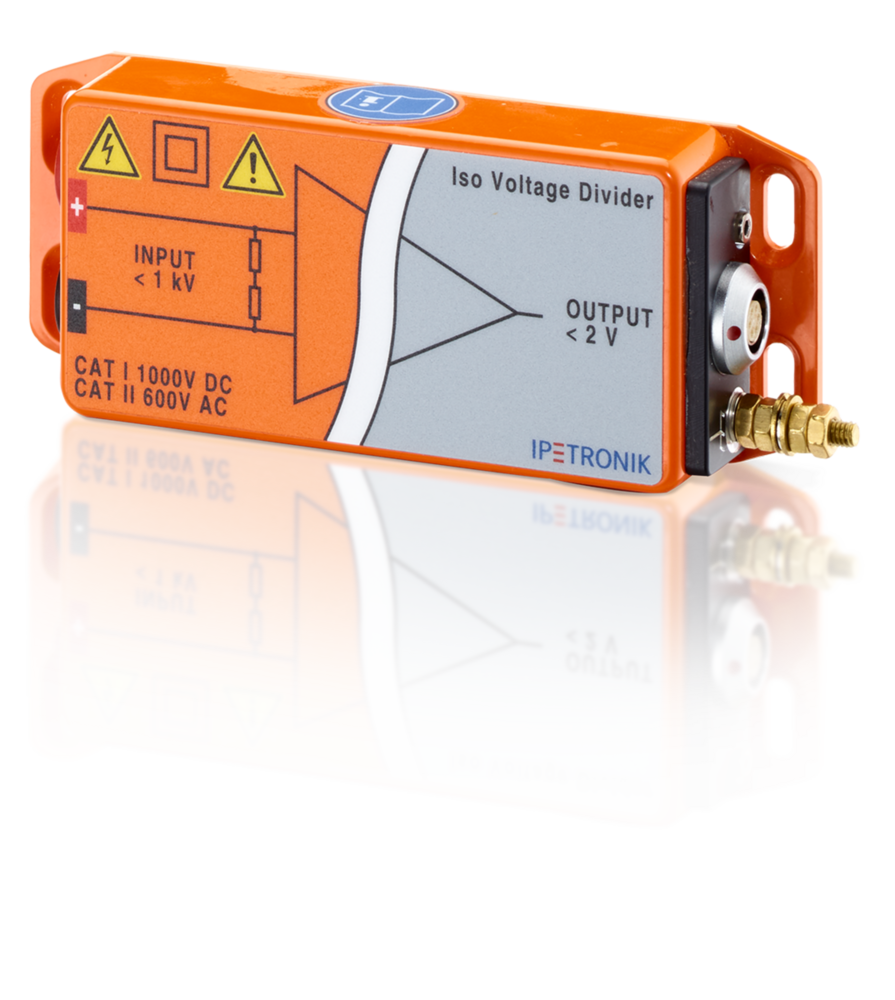

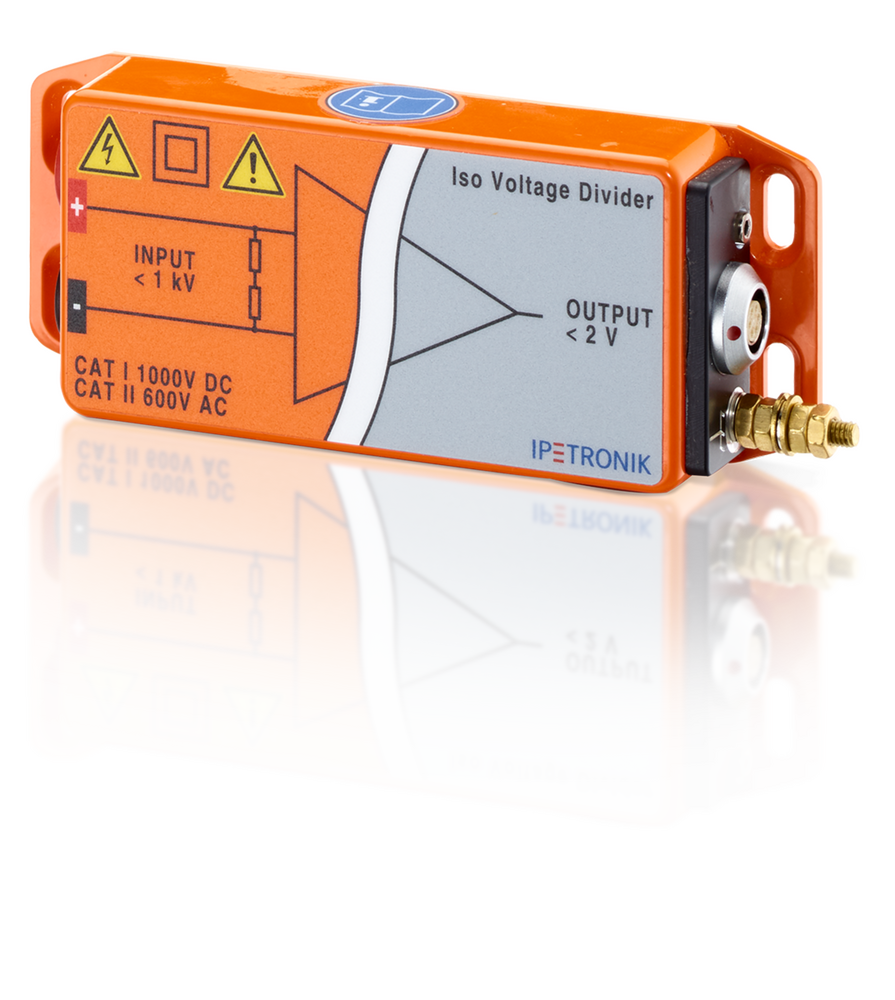

HV Iso Divider 100 kHz

DC high-voltage divider up to 1 kV input range

HV Iso Divider 100 kHz

DC high-voltage divider up to 1 kV input range
  • Bandwidth up to 100 kHz
  • Reliable voltage measurement on high-voltage DC systems
  • Electrically isolated high-voltage divider
  • For hybrid and electric vehicle applications
  • Direct connection to SENS modules
  • Approved applications according to CAT I and CAT II

Enquire now Datasheet Add to notelist

Technical Data

Accuracy ±0.25 % (at 15 V)
Inputs 1
Voltage supply 15 VDC
Working temperature range -20 … 70 °C (-4 … 158 °F)
IP-Code IP 67 (ISO 20653 - 2013)

HV Iso Divider 100 kHz – Technical data

Download as PDF

Input HV
Input sockets 4 mm saftey banana plugs
Measurement range ±1000 V (other ranges on request)
Accuracy at ambient temperature -20 … 70 °C (-4 … 158 °F) ±0.50 %
Accuracy ±0.25 % (at 15 V)
Channel impedance 10 MΩ || 22 pF (with HV cable 620-124.010)
Cut-off frequency 100 kHz (max. input cable lengh 1 m)
Hardware filter Bessel (6-pole)
* Safety instructions Do not use HV Iso Divider for applic. on AC voltages of three-phase current drives in e & hybrid vehicles, due to the extremely high transient voltages & HF currents generated by drive train systems! Users working on HV applic. must be trained & approved.
Channel CNT
Number of inputs
Excitation
Sensorspeisung
Galvanic isolation
Test voltage 3536 VAC @ 50 Hz (sinusoidal)
Application according to CAT I ±1000 VDC
Application according to CAT II ±600 VDC, 600 VAC @ 50 ... 60 Hz (sinusoidal)
Device
Inputs 1
Precisions
Maximum input protection voltage (channel) ±1000 V (indefinitely)
Voltage supply 15 VDC
Power consumption, typical 0.6 W
Working temperature range -20 … 70 °C (-4 … 158 °F)
Storage temperature range -30 … 70 °C (-22 … 158 °F)
IP-Code IP 67 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Dimensions W126 mm x H50 mm x D25 mm (4.96 in x 1.97 in x 0.98 in)
Weight 120 g (0.26 lb)
Output sockets ODU Series F, Size 1 (6-Pin)
Output signal ±2 V
Schutz gegen aggressive Flüssigkeiten
Degree of pollution 2
Max. Altitude 2000 m
Electrical data
Status LED
Accessories
System cable 620-629 HViso cable SENS 1B7p
Input cable 620-124 HViso-IN banana cable open
