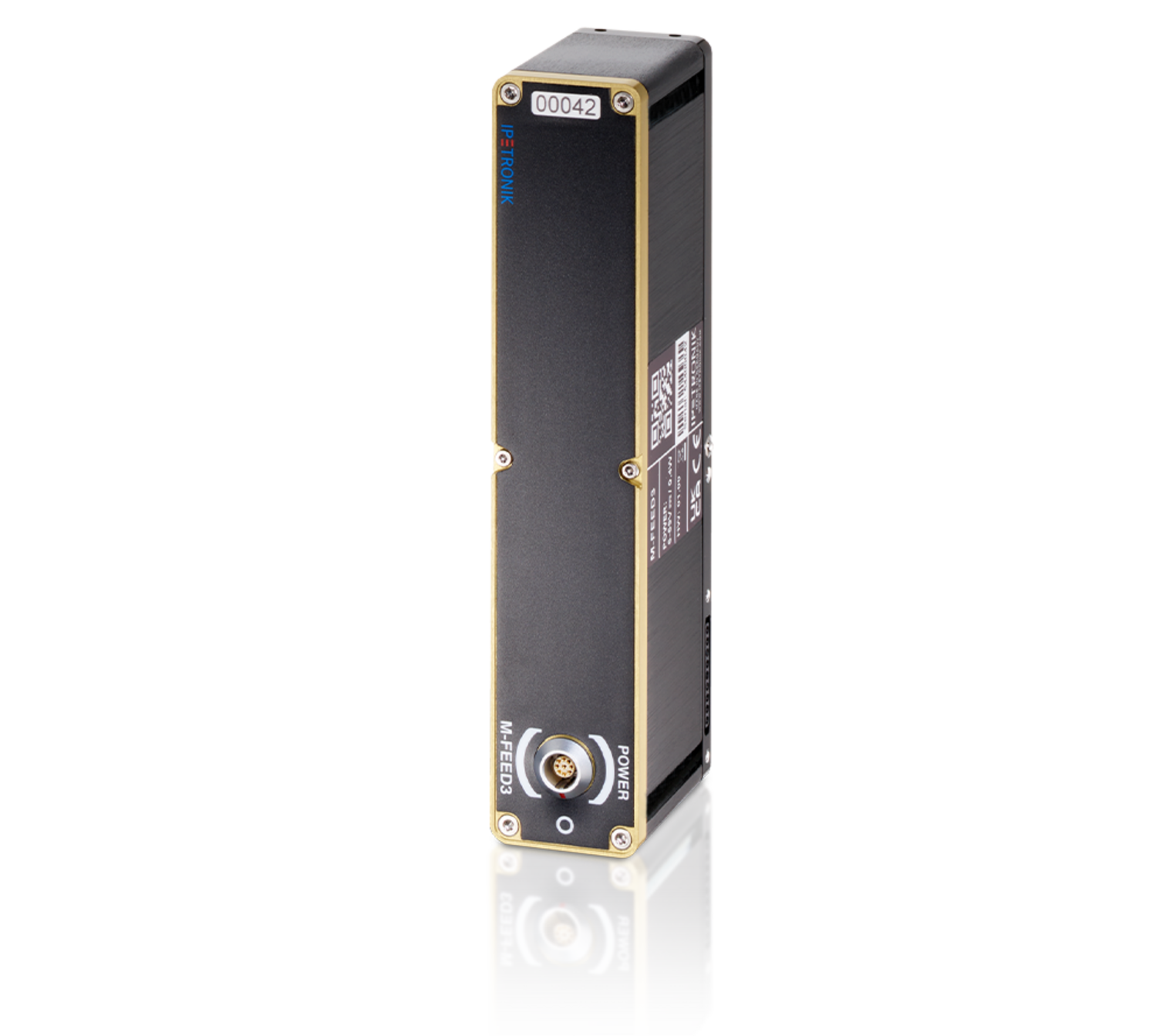

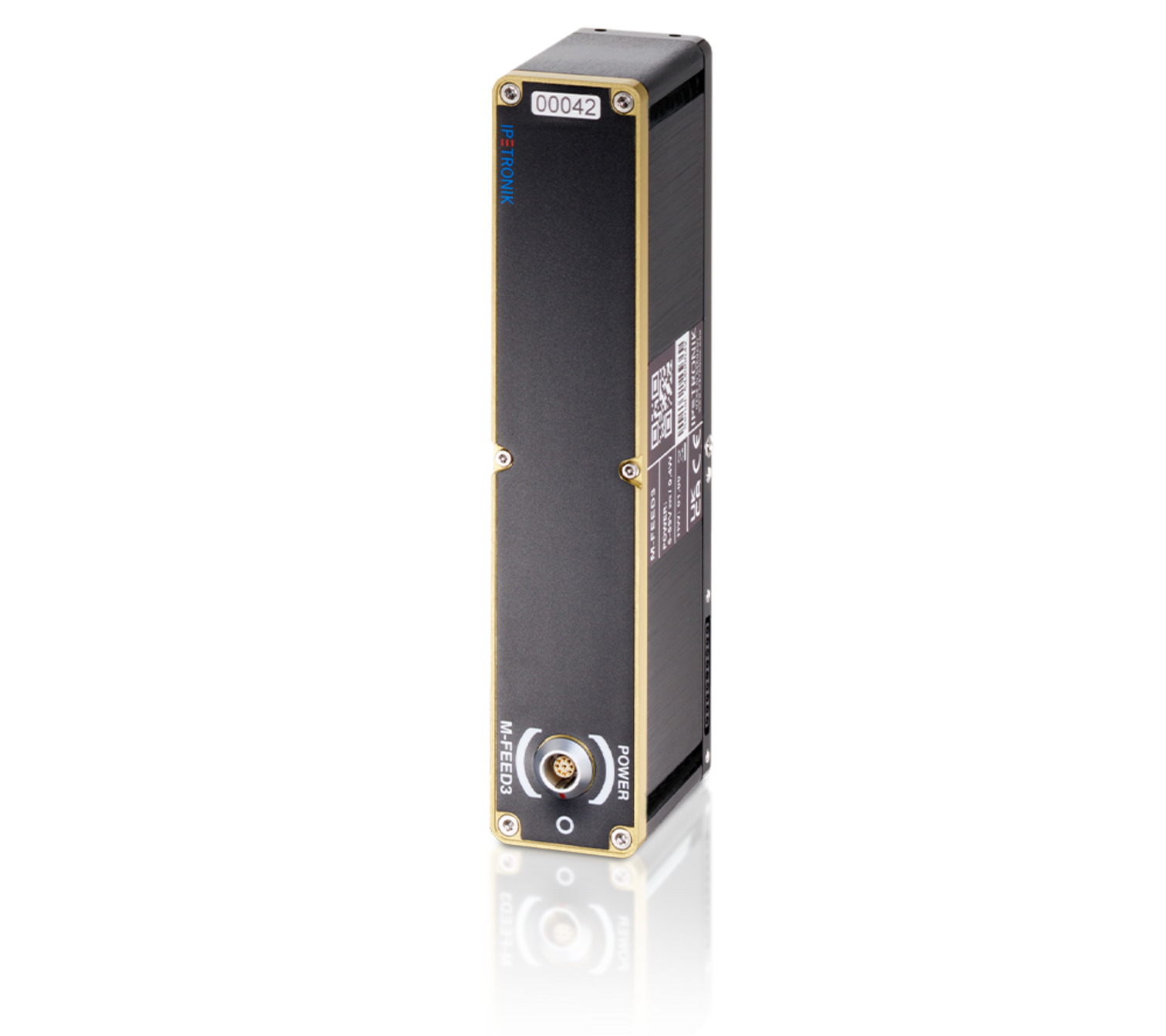

M-FEED3
Intermediate feed for the M3 module chain
Special Features
- Intermediate feed-in of M3 modules in the system
- Feed current up to 4 A
- IP 67 and extended temperature range
- Toolless, magnetic connection
- Cable free system connection → connection cable not required
- Highly compact and ruggedized
- Cascading is supported
Technical data
| Device | |
|---|---|
| Power supply | For On-board power supply of 12 V, 6 ... 59 VDC |
| Switching thresholds of the operating voltage | On 9 VDC (±0.5) / Off 6 VDC (±0.5) |
| Power consumption, typical | 0.15 W |
| Rated power, max. | 192 W (4 A x 48 V) |
| Operating temperature range | -40 … 125 °C (-40 … 257 °F) |
| Storage temperature range | -55 … 150 °C (-67 … 302 °F) |
| IP protection class | IP 67 (ISO 20653 - 2013) |
| Relative humidity | 5 ... 95 % |
| Operating altitude (above sea level) | max. 5000m |
| Dimensions | L165 mm x B33 mm x H58 mm (L6.50 in x B1.30 in x H2.28 in) |
| Weight | 350 g (0.77 lb) |
| Status-LED | Yes, LED green Powersupply active, LED red overcurrent, error |
| Accessories | |
| Module | IPE-COV-M3-001 cover cap, IPE-HWI-M3-001 mounting plate, IPE-HWI-M3-002 mounting plate |
| System cable | 623-500 M3-CAN/PWR cable, SubD9/S term, banana, 623-502 M3-CAN/PWR cable, LOG term, 623-503 M3-CAN/PWR cable, 623-504 M3-CAN/PWR cable, M-CAN/PWR, 623-506 M3-CAN cable, SUB-D/9S term, 623-507 M3-CAN/PWR cable, banana, 623-508 M3-CAN/PWR cable, CAN/PWR 0B-5p., 623-509 M3-CAN/PWR cable, X-LINK/PWR, 623-510 M3-CAN/ cable, ETAS-CAN 1B-8p |
