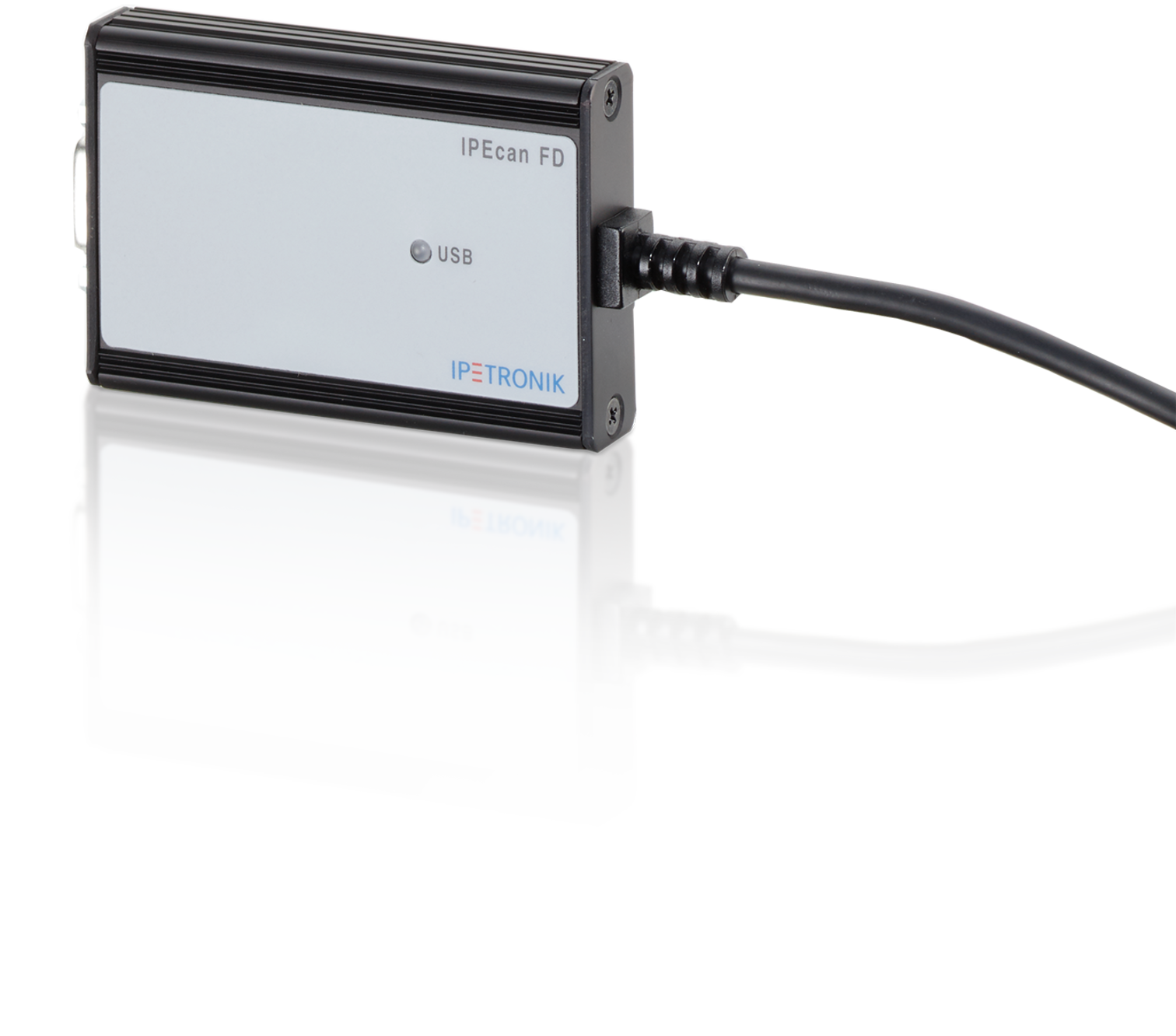

IPEcan FD

1-channel USB2CAN FD interface

Datasheet Enquire now

Special Features

  • PC USB bus adapter for CAN / CAN FD networks
  • CAN-FD SIC
  • SUB-D 9-pole connector according CiA® Standard 102
  • High speed CAN bus input per ISO 11898
  • Data output to PC/notebook via USB 2.0
  • 1 operation status LED for USB, CAN
  • Software integration for IPEmotion

Datasheet

Technical Data

Inputs 1
Working temperature range -40 … 85 °C (-40 … 185 °F)
IP-Code IP 50 (ISO 20653 - 2013)

IPEcan FD – Technical data

Download as PDF

General channel properties
Channel LED Yes
Galvanic isolation
Input ↔ USB (PC) 500 V
Device
Inputs 1
Voltage supply 5 VDC - Power supply via USB (PC)
Power consumption, typical 0.8 W (max 200mA @ 5V)
Working temperature range -40 … 85 °C (-40 … 185 °F)
Storage temperature range -55 … 100 °C (-67 … 212 °F)
IP-Code IP 50 (ISO 20653 - 2013)
Relative humidity 15 ... 95 %
Dimensions W92 mm x H16 mm x D54 mm (3.62 in x 0.63 in x 2.13 in)
Weight 115 g (0.254 lb)
Configuration interface USB 2.0 (compatible to USB 1.1 and USB 3.0)
Test standards EN 55024: 2003-10, EN 55022: 2008-05, EC Directive 2004/108/EG
Input sockets SUB-D 9-pin connector according CiA® Standard 102 PIN assignment
Status LED Yes
CAN Interface
CAN CAN high speed (ISO11898), 2.0A (standard ID), 2.0B (extended ID)
Data transfer rates CAN (high speed) 25 kBit/s ... 1 MBit/s
Data transfer rates ISO CAN FD CAN-FD SIC support (starting with serial number 36302000), 25 kBit/s ... 12 MBit/s
Accessories
System cable 620-502 M-CAN cable SUBD/S Term., 600-359 SIM-CAN/PWR Term. cable SUB D/S, banana, 600-851 600-851 SIM-CAN cable SUB D Term., 620-567 M-CAN/PWR term cable SubD/S, banana
