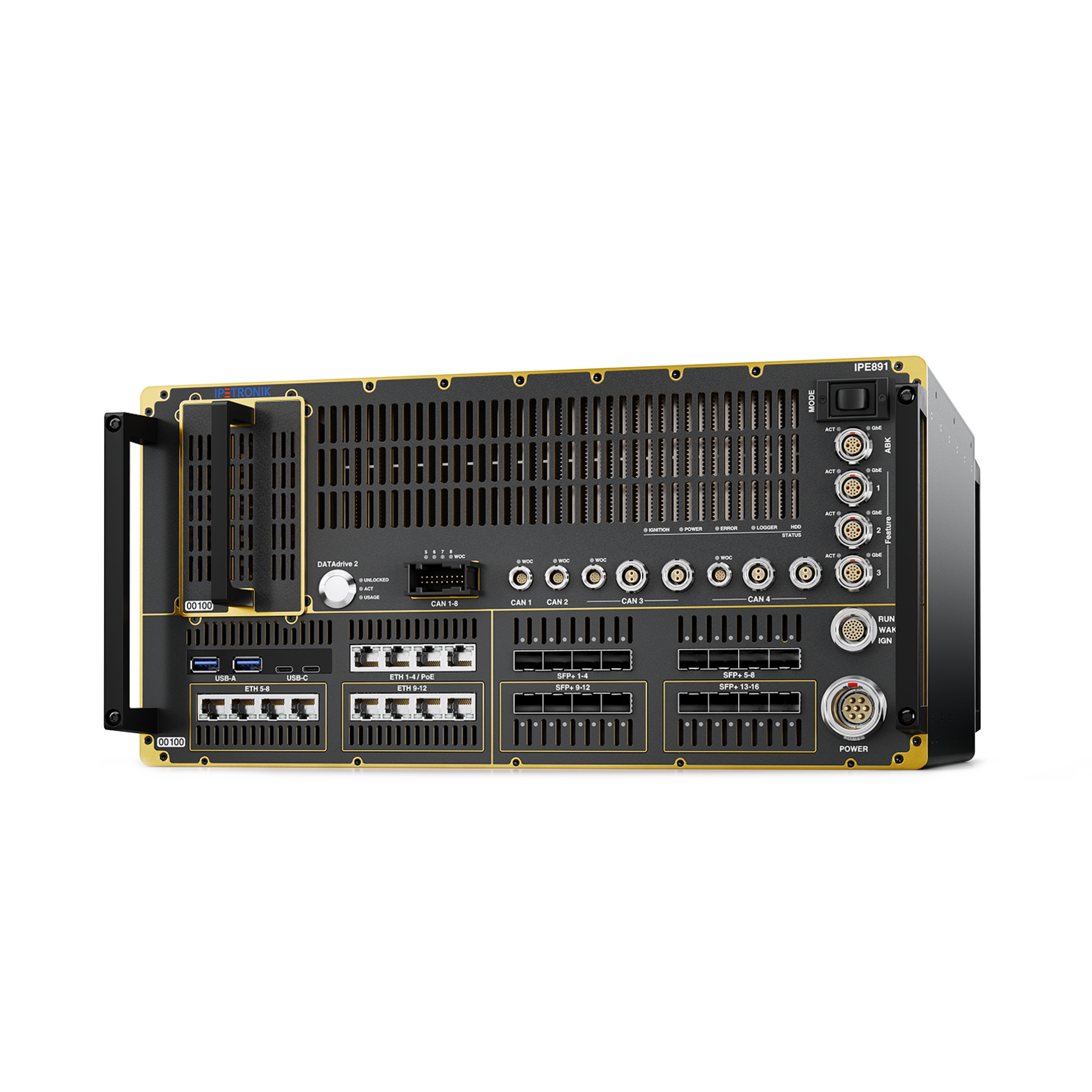

IPE891
Developed for the E/E System of the Future
The new dimension in measurement data acquisition
The IPE891 is the flagship of a new performance class. The high-performance data logger has been developed for extreme environments.
It is modular, scalable from the start and meets the requirements of state-of-the-art vehicle architectures. High continuous power, robust construction, and intelligent data processing, all combined in an open, scalable platform.
+85 °C
Powerful.
Reliable at all times.
20 CORE
Scalable multi-core architecture.
CPU platform: 4/10*/20 core.
Up to
54 Gbit/s
Permanent. Safe.
Without loss of performance.
Up to 54 Gbit/s without loss of performance, without derating
With its integrated DATAdrive 2 memory cartridge, the IPE891 achieves a constant write speed of up to 54 Gbit/s without power loss or derating, at temperatures ranging from −40 °C to +85 °C. Signal and trace data are recorded synchronously and critical events are fully documented.
Climate chamber tests and thermal simulations prove its thermal stability. Up to 64 TB of storage and 256 GB of RAM enable long periods of use without interruption.
Intelligent data collection thanks to scalable storage and data filtering
The IPE891 not only processes data, it thinks for itself. AI algorithms on the logger automatically set triggers for relevant events. A ring buffer stores 20–30 seconds of history in the working memory, reducing the load on the SSD.
Up to 256 GB of RAM enables complex filters without delay. Voltage drop detection, unplug detection and mechanical locks prevent data loss. The result is precise, reliable event recording instead of mere data collection.
Platform for future generations: growth without changing the system
The Xenon processor architecture, which forms the basis for the modular platform, is designed for long-term use: powerful, compatible, and reliable across many vehicle generations.
The CPU, memory, and interfaces can be adapted and expanded without changing devices. This keeps the IPE891 open for new bus systems, higher data rates, and future vehicle architectures. Support for ASAM, XCP, and ODX/PDX standards, as well as the coupling of existing IPETRONIK loggers via Ethernet, secure your investment in the long term.
A perfectly coordinated overall system
- Removable storage media
- Intelligent data filtering while driving
- COPYstation 2 for high-performance data transfer to the company network
Your advantage: Your data is available worldwide and almost in real time. Vehicle downtime is minimized.
Powerful software for demanding measurement and analysis tasks
The software environment of the IPE891 guarantees precise signal-based evaluations as well as a reliable data acquisition across various automotive protocols and all vehicle busses – with a write speed of up to 54 Gbit/s. Supplemented by flexible trigger mechanisms that start measurements at the exact right time, as well as powerful diagnostic and real-time monitoring functions, the software offers a complete solution for efficient testing and validation processes.
”The IPE891 is unique because it combines high data rates with full automotive suitability. It can withstand conditions ranging from northern Sweden to desert heat without any loss of performance.
Moreover, it can be expanded flexibly to meet future requirements, no system change necessary.“
Dr. Hans Lothar Pasch, Head of Development IPETRONIK
Discover the strengths of the IPE891
Designed for tomorrow's applications
E/E system management
The powerful answer to growing electrical system requirements
E/E system management
With each new vehicle model, the electrical systems continue to evolve as well. The IPE891 helps you meet the challenges of this rapid transformation. Its high performance and modular expansion options ensure that the logger can be used across many vehicle generations.
Fleet testing
Scalable technology for large-scale test series and endurance runs
Fleet testing
The IPE891 shows its full strength in the most demanding fleet and endurance runs. It is designed for extreme conditions, tested in the desert heat and arctic cold. Another advantage is the software: The configuration can be updated online at all times – for individual vehicles or the entire fleet via bulk upload.
Driver assistance systems
From RADAR to LiDAR: High-performance data acquisition for modern safety testing
Driver assistance systems
Thanks to its outstanding technical features and the measurement and analysis software, high-performance bus systems and data streams from typical ADAS sources, such as cameras, LiDAR, RADAR, and distance sensors, can be collected dynamically and processed intelligently. The IPE891 sets new performance standards in functional validation.
What are the requirements for your next project?
Our focus on individuality.
Every test scenario is unique – just like the IPE891. We would be happy to advise you personally on further areas of application and show you how the specific strengths of the logger can optimally meet your individual requirements. Together, we will find the right configuration for your project.
Special Features
- High performance INTEL XEON D plattform
- Developed for the validation of complex Ethernet vehicle network architectures
- Up to 256 GB RAM
- Up to 2 x 8 TB internal memory
- Slot for DATAdrive 2 (hot plug capable, up to 64 TB)
- Data transfer to the company network via a transfer station
- Configuration via Ipetronik software
Technical Data
| Performance Index | up to 20000 |
|---|---|
| Voltage supply | 8 ... 36 VDC |
| Working temperature range | -40 … 176 °F (-40 … 80 °C) |
| IP-Code | IP 30 (ISO 20653 -2013) |
