IPE833- 100BASE-T1

Scalable datalogger for fleetmanagement and validation

IPE833- 100BASE-T1

Scalable datalogger for fleetmanagement and validation

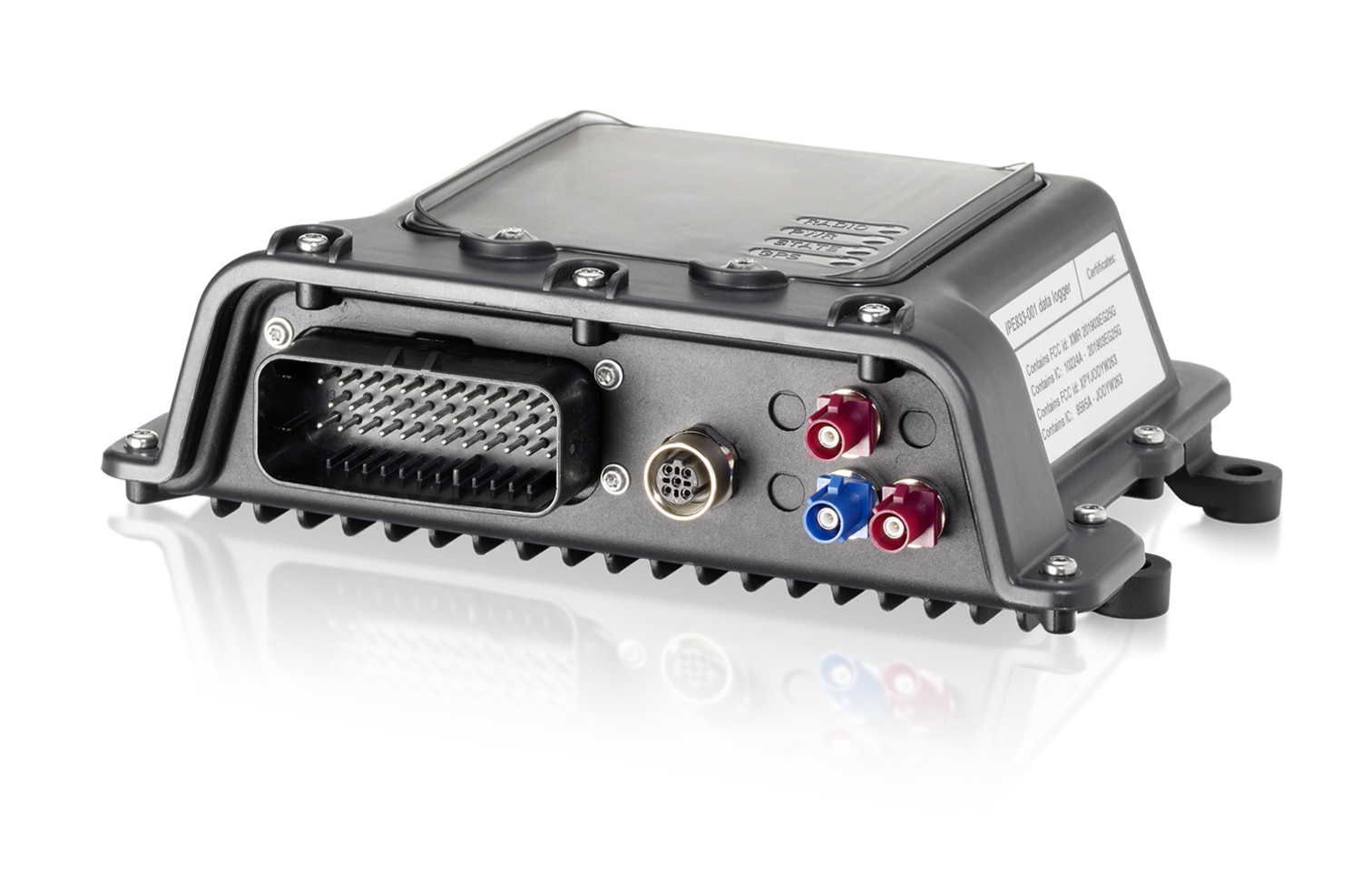

  • Automotive Ethernet BroadR-Reach 100BASE-T1
  • 4 CAN FD SIC inputs
  • Integrated 4G- / LTE-Modem, WiFi and GPS-receiver
  • 4 analogue inputs
  • 4 digital inputs
  • Integrated accelerometer and gyro
  • Protection class IP67
  • Developed for applications in harsh environments
  • Softwaresupport starting with IPEmotionRT 2024 R2

Enquire now Datasheet Add to notelist

Performance Index
Describes the performance of the used processor

Technical Data

Inputs 1 x Automotive Ethernet BroadR-Reach 100BASE-T1, 4 x CAN FD SIC
Performance Index 542
Data Transmission Modem, WiFi, GPS
Voltage supply 9 … 36 VDC
Working temperature range -40 ... 70 °C (-49 ... 158 °F)
IP-Code IP 67 (ISO 20653 - 2013), (with closed top cover only)

IPE833- 100BASE-T1 – Technical data

Download as PDF

Interfaces
CAN HS (ISO 11898-2) Yes
CAN FD Yes
ETH (100 Mbit) Automotive Ethernet BroadR-Reach 100BASE-T1
Analog input 4 x 0 ... 30 VDC @ 12 bit resolution; 1 % accuracy
Digital I/O 4/2
USB 2.0 ports No
USB 3.0 ports 1, max. current 900 mA
Driver display system IPEmotion ME
Interface option 1
Interface option 2
Interface option 3
Interface option 4
Interface option 5
Device
Operating system Linux (64 bit)
Processor ARM i.MX8 M Plus Quad A53
RAM memory eMMC 8 GB, 4 GB
Inputs 1 x Automotive Ethernet BroadR-Reach 100BASE-T1, 4 x CAN FD SIC
Performance Index 542
Data Transmission Modem, WiFi, GPS
Data logger software IPEmotion RT
Storage medium MikroSD
Storage capacity 64 / 256 GB
Voltage supply 9 … 36 VDC
Power consumption, typical < 2.5 W
Working temperature range -40 ... 70 °C (-49 ... 158 °F)
Storage temperature range -40 ... 70 °C (-49 ... 158 °F)
IP-Code (with closed top cover only), IP 67 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Dimensions B188 mm x H62 mm x T154 mm (7.40 in x 2.44 in x 6.06 in)
Weight 768 g (1.6 lb)
Protocols and traffic
CCP / XCP on CAN Yes
J1939 Yes
OBD Yes
WWH-OBD Yes
KWP on CAN Yes
UDS / ODX / PDX Yes
CAN-Traffic Yes
ETH-Traffic Yes
CAN-send Yes
Software functions
Configuration software IPEmotion RT.UI
No Message Lost (NML) No
Wake on CAN (WoC) Yes (global for all inputs)
On board scripting Yes
On board math & logic operations Yes
File formats for data storage ZIPRT, MDF4.0, MDF4.1, ASC
Wireless communication
GNSS (Global Navigation Satellite System) 10 Hz (GPS/ GLONASS/ QZSS/ BeiDou)
WiFi 5 GHz (WiFi802.11 ac, kein 2.4 GHz)
Modem Mini-SIM (2FF), 4G (LTE)
IPEcloud / FTP-Server Yes
Accessories
Input cable 666-539 IPE833 Input cable
Antenna IPE-ANT-019
optional IPE-ZUK-258 (battery 3350 mAh), IPE-ZUK-259 (USB Cover), IPE-ZUK-263 (battery 13400 mAh)
