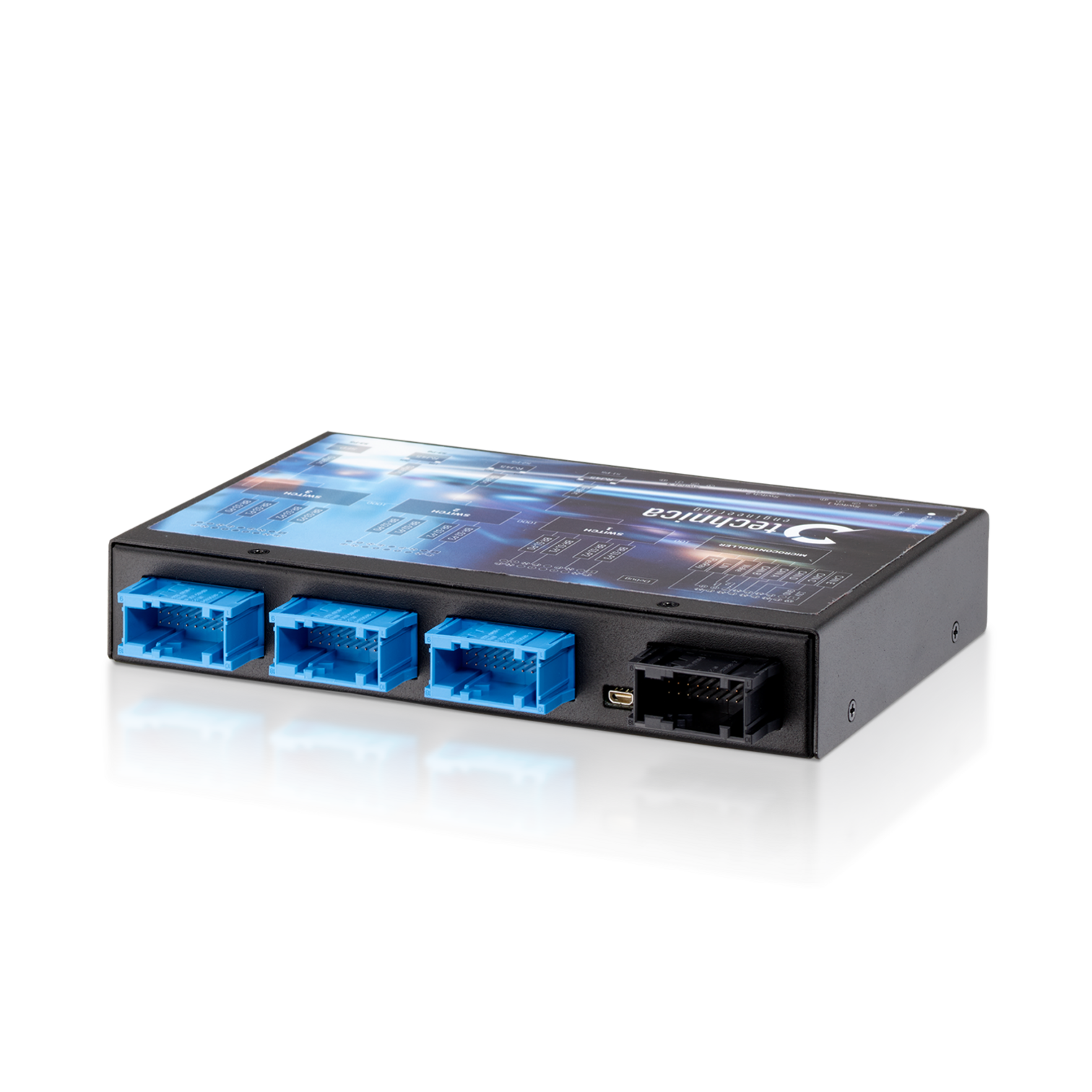

MediaGateway

12 Broadcom 100BASE-T1 ports

MediaGateway

12 Broadcom 100BASE-T1 ports
  • Analysis of automotive ethernet networks
  • Traffic routing via Ethernet
  • Mirroring and forwarding functions
  • Wake on CAN (WoC) or wake line
  • 1 SFP+ Gigabit port
  • Supports virtual LAN networks (VLAN)
  • Configuration via web interface
  • Network time synchronization (802.1AS)
  • Developed for automotive applications
  • Data logger support for ETHOS, ETHOS 2, ARCOS 1.5, ARCOS 2, IPElog2

Enquire now Datasheet Add to notelist

Technical Data

1 Gbit 3
10 Gbit 1
100BASE-T1 12
Voltage supply 8 ... 26 VDC
Power consumption, typical 7 … 12 W
Working temperature range -40 … 80 °C (-40 … 176 °F)
IP-Code IP 40 (ISO 20653 - 2013)

MediaGateway – Technical data

Download as PDF

CAN Interface
Status-LED
Power consumption, WoC+NML
Power consumption, WoC
LIN interface
Status LED
Power consumption, WoL+NML
Power consumption, WoL
DIO interface
Status LED
Switching capacity digital-output
Device
Inputs
Voltage supply 8 ... 26 VDC
Power consumption, typical 7 … 12 W
Power consumption, standby
Working temperature range -40 … 80 °C (-40 … 176 °F)
IP-Code IP 40 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Dimensions W195 mm x H33mm x D143 mm (7.68 in x 1.30 in x 5.63 in)
Weight 770 g (1.70 lb)
Configuration interface Ethernet
Configuration software Web interface
Status LED 19
FlexRay interface
Power consumption, WoFR+NML
Power consumption, WoFR
Status LED
Ethernet-Interfaces
1 Gbit 3
10 Gbit 1
100BASE-T1 12
Resolution timestamp 40 ns
Accessories
System cable 620-688 LOG GB-ETH cable RJ45
