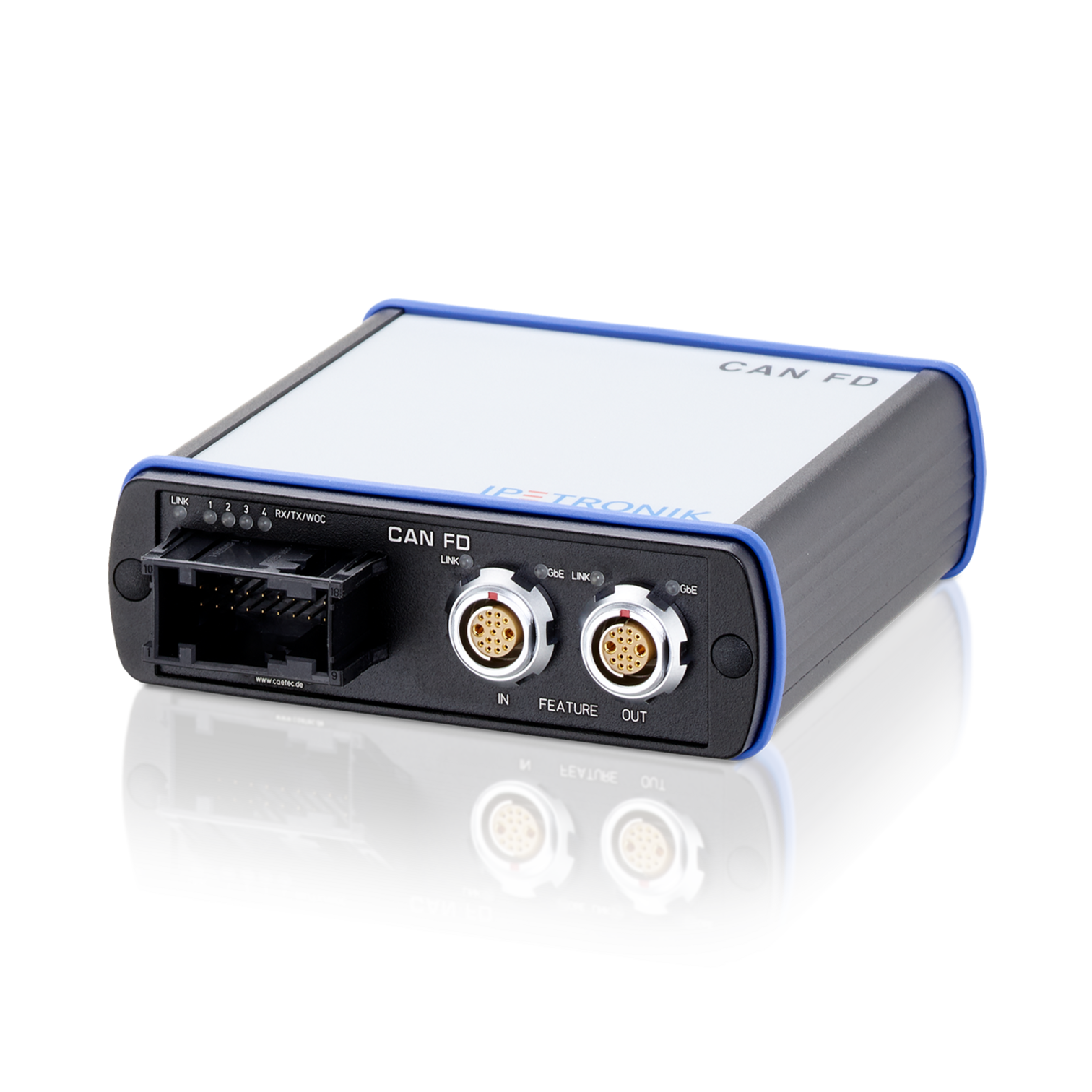

CAN FD SIC Satellite Interface 8CH

Satellite with 8 ISO CAN-FD SIC inputs

Datasheet Enquire now

Special Features

  • Feature connector with GbE, supply and control line
  • Daisy chaining of serveral satellites
  • WoC- and NML support
  • Configuration with IPEmotion Software
  • 13 status LEDs
  • Extension unit for ETHOS, ETHOS 2, ARCOS 2, IPE853

Datasheet

Technical Data

CAN FD (ISO 11898-1) 8
Voltage supply 6 … 36 VDC
Power consumption, typical 2.0 W
Power consumption, standby 0.003 W
Working temperature range -40 … 85 °C (-40 … 185 °F)
IP-Code IP 40 (ISO 20653 - 2013)
Dimensions B109 mm x H35mm x T130 mm (4.29 in x 1.38 in x 5.12 in)
Weight 365 g (0.80 lb)
Input sockets 1 Plug 18-pin (1379101-1)

CAN FD SIC Satellite Interface 8CH – Technical data

Download as PDF

CAN Interface
CAN FD (ISO 11898-1) 8
CAN FD Baud rate 4 Mbaud
Galvanically isolated No
Wake on CAN (WoC) Yes (Latency 60 ms)
No Message Lost (NML) Yes
Status-LED 8 Rx/Tx for CAN inputs and WoC, 5 ETH link
Power consumption, WoC+NML 2,0 W
Power consumption, WoC 0,06 W
Analog interface
Galvanic isolated No
Device
Voltage supply 6 … 36 VDC
Supply voltage thresholds Switch-on 6 ±0.3 VDC / Switch-off 6 ±0.3 VDC
Power consumption, typical 2.0 W
Power consumption, standby 0.003 W
Working temperature range -40 … 85 °C (-40 … 185 °F)
Storage temperature range -45 … 90 °C (-49 … 194 °F)
IP-Code IP 40 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Dimensions B109 mm x H35mm x T130 mm (4.29 in x 1.38 in x 5.12 in)
Weight 365 g (0.80 lb)
Configuration interface Ethernet (1 GBit)
Data transfer rate 1 GBit
Configuration software IPEmotion
Input sockets 1 Plug 18-pin (1379101-1)
Accessories
System cable 666-531 FEATURE/ABK-cable, 620-702 LOG GB-ETH LEMO 1B 14p cable satellite, 620-704 LOG ETH-IN cable satellite, 620-708 ETH RJ45 cable CAN satellite,PWR-banana/P, 620-710 satellite connection cable
