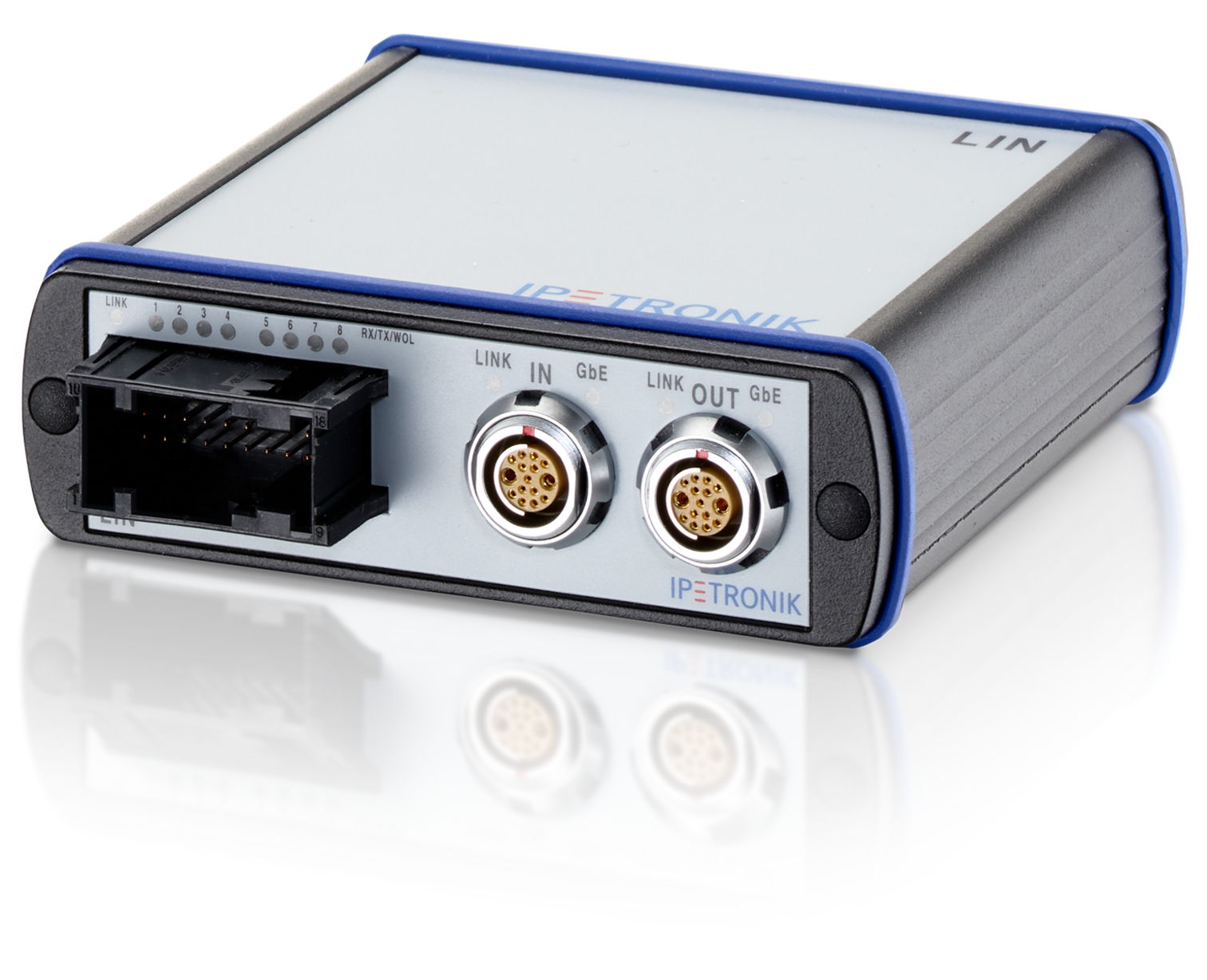

LIN Satellite Interface

Satellite with 8 LIN inputs

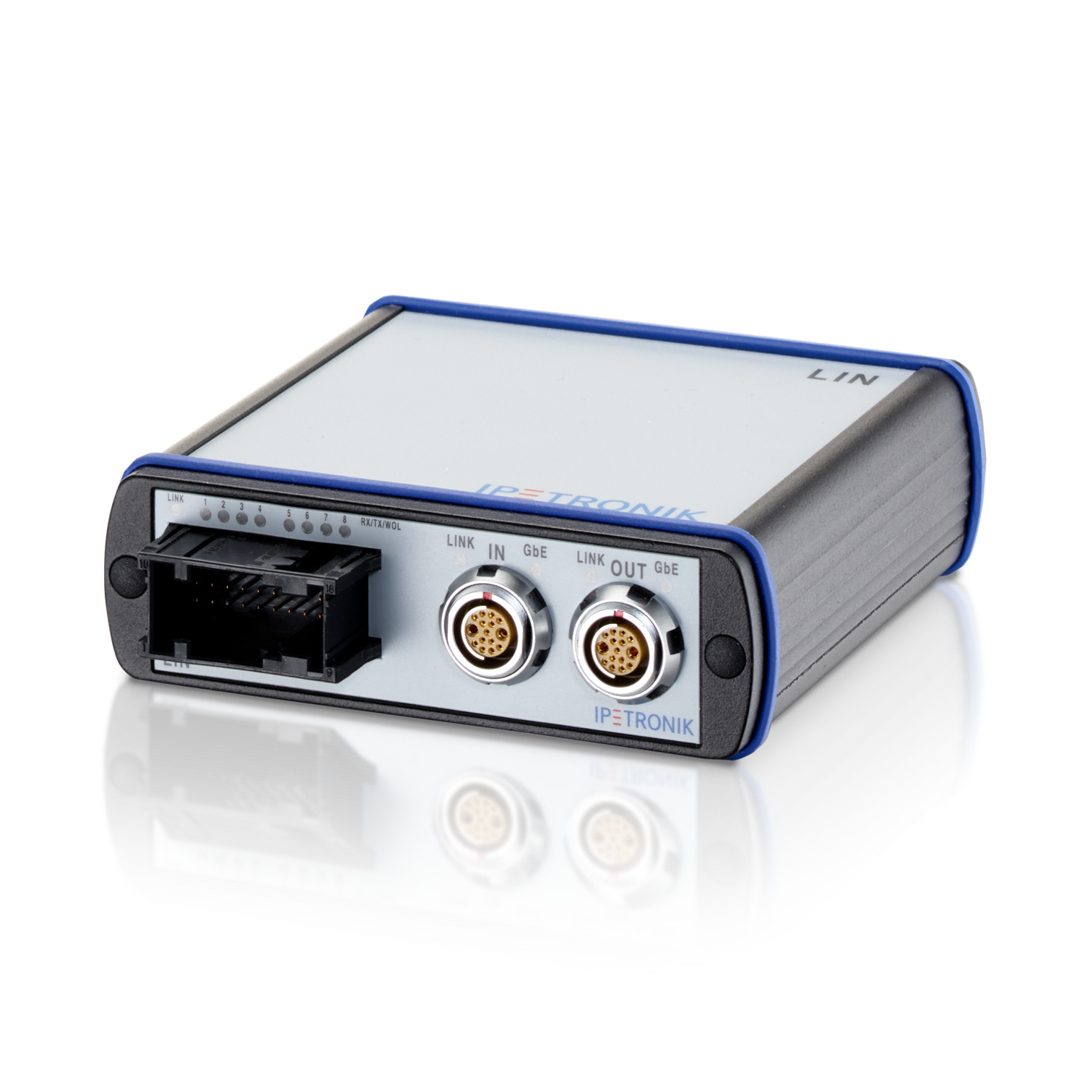

LIN Satellite Interface

Satellite with 8 LIN inputs
  • Feature connector with GbE, supply and wake function
  • 9 status LEDs
  • Configuration with IPEmotion Software
  • Daisy chaining of several satellites
  • Extension unit for ETHOS, ARCOS 1.5, IPElog2, M-LOG V3
  • WoC and NML support

Inquire now Datasheet Add to notelist

Technical Data

LIN inputs 8
Power consumption, WoL+NML 1.6 W
Voltage supply 6 … 36 VDC
Power consumption, typical 2.5 W
Power consumption, standby 0.002 W
Working temperature range -40 … 85 °C (-40 … 185 °F)

LIN Satellite Interface – Technical data

Download as PDF

CAN Interface
Status-LED
Power consumption, WoC+NML
Power consumption, WoC
LIN interface
LIN inputs 8
Input sockets 1 Plug 18-pin (1379101-1)
Galvanic isolated No
Wake on LIN (WoL) Yes
No Message Lost (NML) Yes
Status LED 8 Rx/Tx for LIN inputs and WoL, 5 ETH link
Power consumption, WoL+NML 1.6 W
DIO interface
Status LED
Switching capacity digital-output
FlexRay interface
Power consumption, WoFR+NML
Power consumption, WoFR
Status LED
Device
Voltage supply 6 … 36 VDC
Supply voltage thresholds Switch-on 6 ±0.3 VDC / Switch-off 6 ±0.3 VDC
Power consumption, typical 2.5 W
Power consumption, standby 0.002 W
Working temperature range -40 … 85 °C (-40 … 185 °F)
Storage temperature range -45 … 90 °C (-49 … 194 °F)
IP-Code IP 40 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Dimensions W109 mm x H35mm x D130 mm (4.29 in x 1.38 in x 5.12 in)
Weight 365 g (0.80 lb)
Configuration interface Ethernet
Data transfer rate 1 GbE Ethernet (IEEE 802.3)
Configuration software IPEmotion
Status LED
Accessories
System cable 620-704, 666-531, 620-702, 620-708
Input cable 620-723
