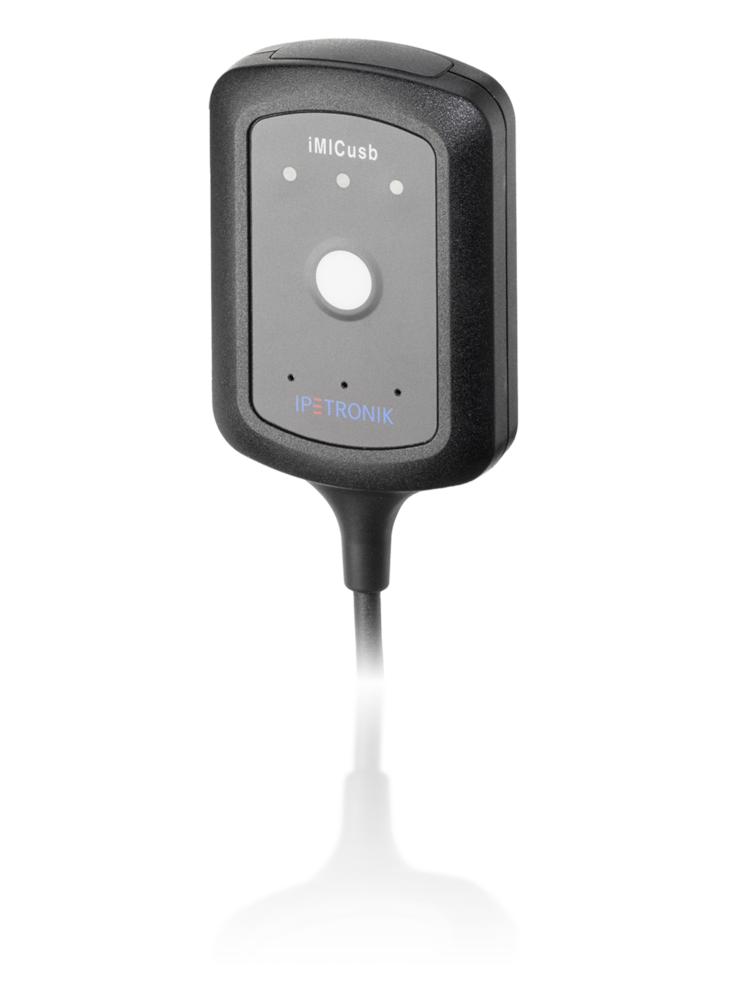

iMICusb
Microphone input with trigger and buzzer via USB-A
Special Features
- Data logger accessory
- Illuminated trigger button, freely configurable
- Status LED red for audio recording
- Status LED yellow, freely configurable
- RGB LED "red" powerup, "blue" measurement active, "red/blue" post process, "green" freely configurable
- Buzzer for alarm, freely configurable
- Microphone for voice recording
- Brightness sensor for LED intensity control
Technical Data
| Device | |
|---|---|
| Voltage supply | 5 VDC |
| Working temperature range | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature range | -20 … 70 °C (-4 … 158 °F) |
| IP-Code | IP 40 (ISO 20653 - 2013) |
| Dimensions | B54 mm x H76 mm x T22 mm (2.13 in x 2.99 in x 0.87 in) |
| Weight | 100 g (0.22 Ib) |
| Housing material | ASA+PC (UL 94 V-0), black |
| Accessories | |
| System cable | USB-CAB-2-050 USB2.0 2-port extension, IPE-ZUK-183 USB 3.0 extension, USB-CAB-1-050 USB 2.0 extension |
