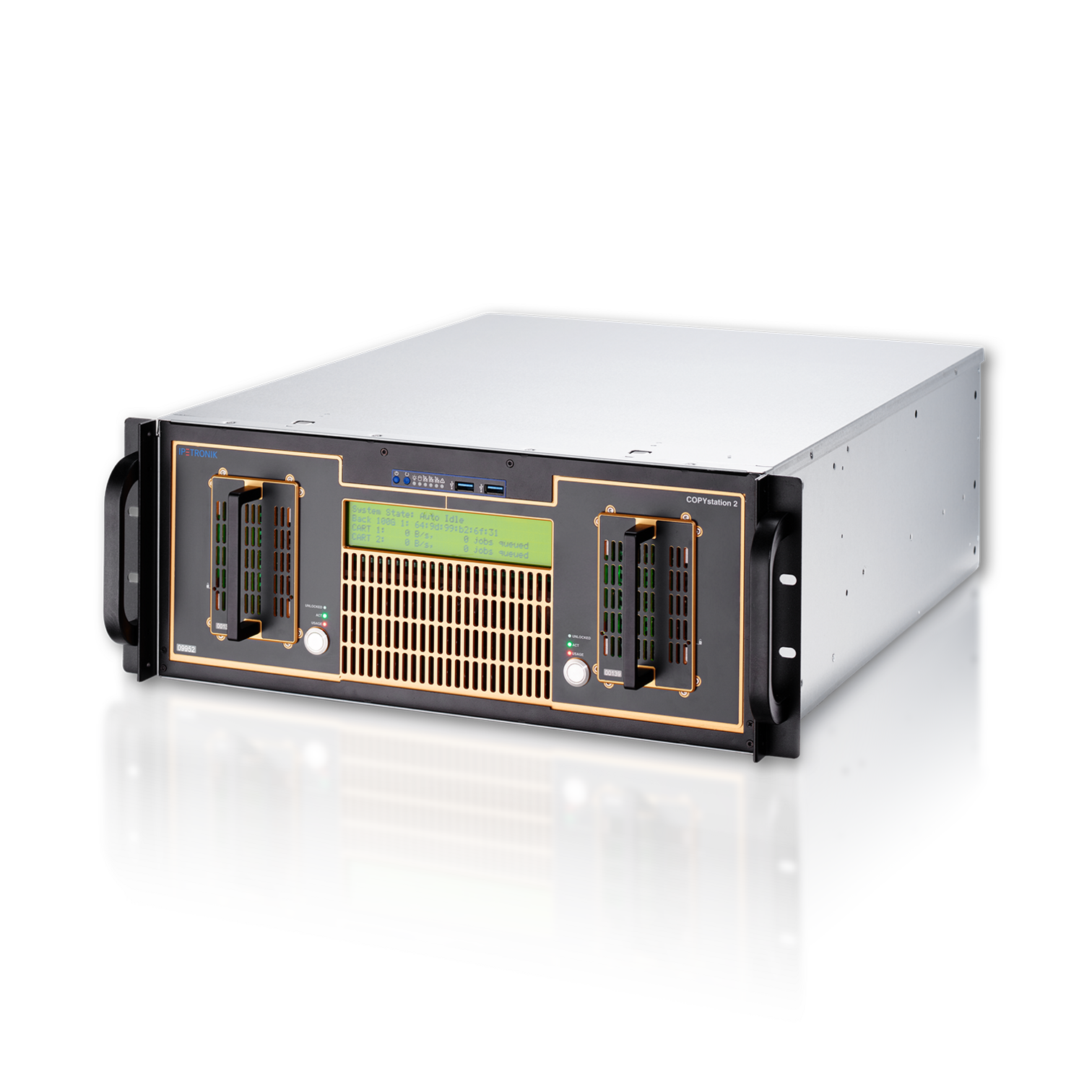

COPYstation 2
Data exchange station for DATAdrive 2 removable data storage
Designed for maximum speed and flexibility
With two integrated DATAdrive 2 slots and an optional 32 TB data buffer, the COPYstation 2 offers a powerful solution for direct data transfer in the test environment. Captured measurement data can be backed up quickly, reliably, and without detours.
High-performance 10/100 Gbit/s LAN interfaces as well as modem and WiFi connections are available for connectivity. Even very large data volumes are efficiently transferred to the corporate network via the 100 Gbit/s infrastructure – 32 TB can be completely backed up in around 60 minutes.
Easy installation
- Plug and play for fleet testing and stationary use in your company infrastructure
- Monitoring of connection status via front display
Simple and secure operation
- Autonomous and API-controlled data upload
- Monitoring the upload status via the front display
- Safe operation (intuitive user guidance via LEDs)
A perfectly coordinated overall system
- Removable storage media
- Intelligent data filtering while driving
- COPYstation 2 for high-performance data transfer to the company network
Your advantage: Your data is available worldwide and almost in real time. Vehicle downtime is minimized.
Special Features
- Supports up to two DATAdrive 2 removable data storage
- 2 x 10 GbE (RJ45) Ports
- 2 x 100 GbE (QSFP28) Ports
- 2 x USB A (3.2)
- Fully automatic data discharge of the removable data storage
- Configuration via web interface
- Fast data upload to the host server via two 100 GbE interfaces
Technical data
| RJ45 (10 GbE) | 2 |
|---|---|
| SFP+ (10 GbE) | 2 |
| QSFP28 (100 GbE) | 2 (optional) |
| USB 3.2-Interfaces | 2 |
| Slot for removable data storage | 2 |
| Operating system | Linux (64 bit) |
| Processor | AMD EPYC™ 7002/7003 |
| Memory (RAM) | 16 GB |
| Internal storage buffer | 32 TB (optional) |
| storage medium | Max. 2 x DATAdrive 2 removable data storage |
| Power supply | 100 … 240 VAC |
| Working temperature range | 0 ... 40 °C (32 ... 104 °F) |
| Storage temperature range | 0 … 60 °C (32 … 140 °F) |
| IP-Code | IP 20 (ISO 20653 - 2013) |
| Relative humidity | 5 ... 95 % |
| Dimensions | W19.09 in x H7.01 in x D23.43 in (B485 mm x H178 mm x T595 mm) |
| Weight | 44 lb (20 kg) |
| Configuration Software | Web interface |
| File formats for data storage | ZIP, BLF, AVI, WAV, MDF4.x, ASC, PCAP, PCAPNG, DLT |
| IPEcloud / Server Connection | Azure-Cloud / Amazon S3 / SFTP-Server |
| DATAdrive 2 | removable data storage |
