Temperature Measurement at its Best: The New M-THERMO3 16!

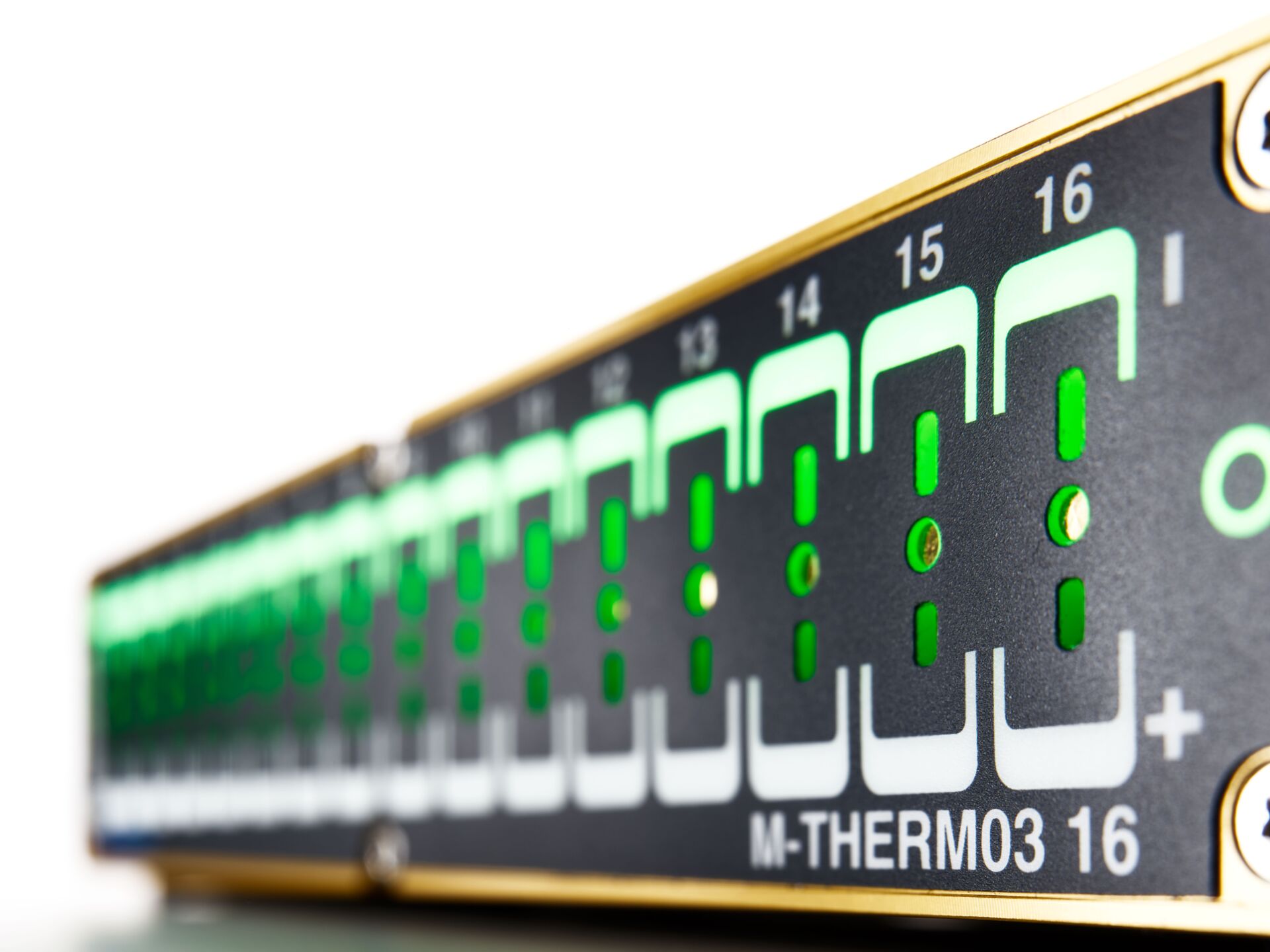

New Temperature Measurement Device M-THERMO3 16 with 16 Freely Selectable Channels

With the M-THERMO3 16, IPETRONIK introduces their latest temperature measurement device. As the first module of a new device generation, it sets standards in modular measuring technology. The 16 channels with freely selectable thermocouple types and a high-resolution 24-bit ADC offer maximum precision and flexibility. Thanks to its extremely fast boot time – 0.8 seconds from switching-on to measuring – the data can be recorded without waiting. The M-THERMO3 16 is highly compact and rugged. Its new wireless magnetic connection technology saves time during set-up and provides a highly safe data connection.





Meets Extreme Requirements

The M-THERMO3 16 boots in just 0.8 seconds and supports all common thermocouples (types K, B, C, E, J, N, R, S, and T). Operating in ambient temperatures of -40 °C up to +125 °C, the device can directly be mounted on the test object. Each channel is freely selectable and measures with the highest precision thanks to a 24-bit sigma-delta converter and a cold-junction compensation per channel. Unwanted interference, e.g. by external thermal influence or ambient temperature fluctuation, is reduced to an absolute minimum.

New Intelligent Contacting System

The new contacting system reduces installation and start-up time. The wireless magnetic module connection and the controllable multicolor LED per channel facilitate set-up and configuration. With the wireless device chain, several measurement modules (up to 64!) can easily be connected and integrated into one system. The intelligent CAN bus termination automatically activates the bus terminator.

Highly Compact, Wireless, and Rugged

The design of the M-THERMO3 16 is highly compact. Compared to the previous model, the volume has been reduced by 30 percent and the power consumption by 50 percent. In addition, it only weighs 415 grams. With their decentralized architecture, the modules can be installed in close proximity to the measuring point, reducing thermo cabling and improving data quality as well as measurement precision.


More information can be found on the product page.

If you have any further questions, our sales team will be glad to assist you.
